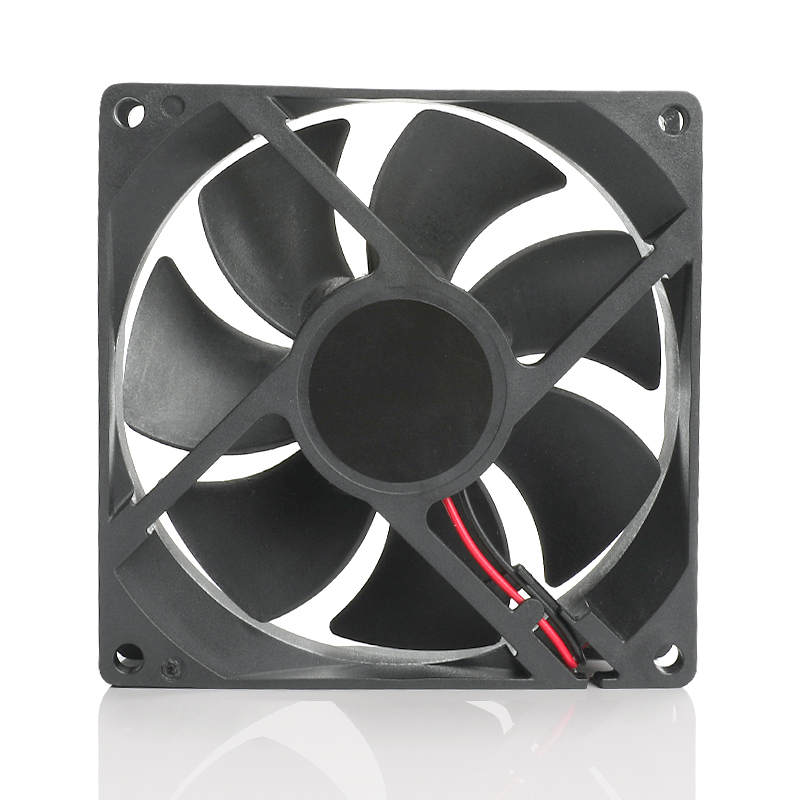

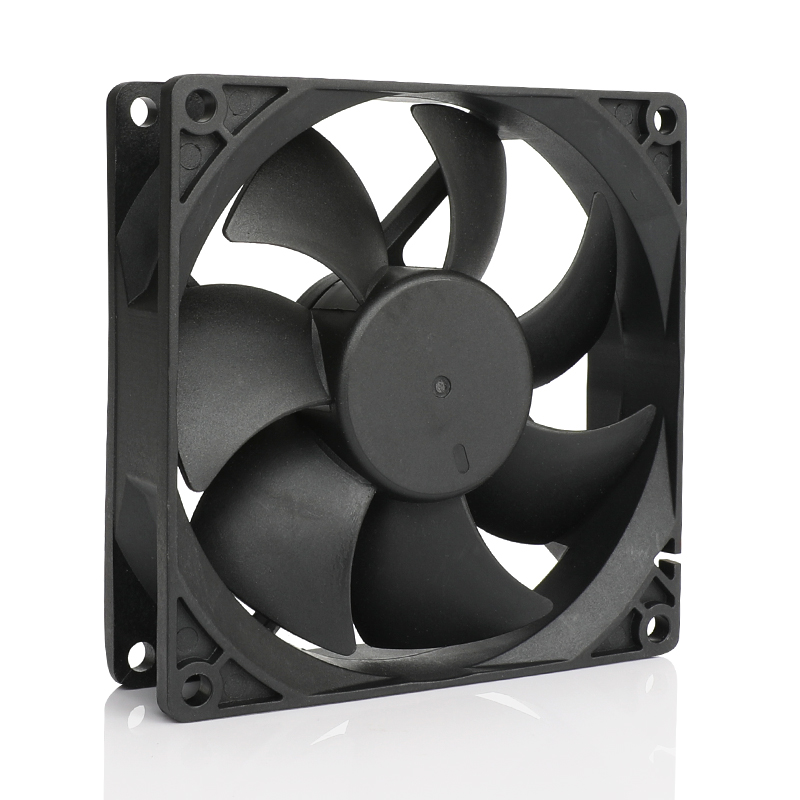

92×92×25mm DC Fan

Size: 92*92*25（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated	Operating	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Voltage	Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
DC Fan CAPITAL	92×92×25mm DC Fan	CPT9225/12L	12	7~14	0.10	1.20	3000	56.15	1.59	4.52	44.30	40.55
		CPT9225/12M			0.16	1.92	3500	65.50	1.85	5.78	56.64	43.90
		CPT9225/12H			0.30	3.60	4500	82.64	2.34	9.03	88.49	49.36
		CPT9225/12E			0.60	7.20	5500	101.11	2.86	12.17	119.27	53.72
		CPT9225/12U			1.20	14.40	6500	121.73	3.45	17.55	171.99	57.34
		CPT9225/24L	24	15~27	0.07	1.68	3000	56.15	1.59	4.52	44.30	40.55
		CPT9225/24M			0.13	3.12	3500	65.50	1.85	5.78	56.64	43.90
		CPT9225/24H			0.23	5.52	4500	82.64	2.34	9.03	88.49	49.36
		CPT9225/24E			0.35	8.40	5500	101.11	2.86	12.17	119.27	53.72
		CPT9225/24U			0.60	14.40	6500	121.73	3.45	17.55	171.99	57.34
		CPT9225/48L	48	30~55	0.05	2.40	3000	56.15	1.59	4.52	44.30	40.55
		CPT9225/48M			0.08	3.84	3500	65.50	1.85	5.78	56.64	43.90
		CPT9225/48H			0.12	5.76	4500	82.64	2.34	9.03	88.49	49.36
		CPT9225/48E			0.18	8.64	5500	101.11	2.86	12.17	119.27	53.72
		CPT9225/48U			0.30	14.40	6500	121.73	3.45	17.55	171.99	57.34
		CPT9225/12L	12	7~14	0.10	1.20	3000	52.61	1.49	3.84	37.63	37.90
		CPT9225/12M			0.16	1.92	3500	61.13	1.73	4.96	48.61	41.25
		CPT9225/12H			0.30	3.60	4000	68.72	1.95	6.11	59.88	44.15
		CPT9225/12E			0.60	7.20	4500	79.59	2.25	7.64	74.87	46.70
		CPT9225/12U			1.20	14.40	6000	96.90	2.74	10.68	104.66	52.95
		CPT9225/24L	24	15~27	0.07	1.68	3000	52.61	1.49	3.84	37.63	37.90
		CPT9225/24M			0.13	3.12	3500	61.13	1.73	4.96	48.61	41.25
		CPT9225/24H			0.23	5.52	4000	68.72	1.95	6.11	59.88	44.15
		CPT9225/24E			0.35	8.40	4500	79.59	2.25	7.64	74.87	46.70
		CPT9225/24U			0.60	14.40	6000	96.90	2.74	10.68	104.66	52.95
		CPT9225/48L	48	30~55	0.05	2.40	3000	52.61	1.49	3.84	37.63	37.90
		CPT9225/48M			0.08	3.84	3500	61.13	1.73	4.96	48.61	41.25
		CPT9225/48H			0.12	5.76	4000	68.72	1.95	6.11	59.88	44.15
		CPT9225/48E			0.18	8.64	4500	79.59	2.25	7.64	74.87	46.70
		CPT9225/48U			0.30	14.40	6000	96.90	2.74	10.68	104.66	52.95
		CPT9225/12L	12	7~14	0.10	1.20	2500	42.39	1.20	2.91	28.52	35.40
		CPT9225/12M			0.16	1.92	3000	51.23	1.45	4.44	43.51	39.36
		CPT9225/12H			0.30	3.60	3800	64.21	1.77	5.93	58.11	44.49
		CPT9225/12E			1.30	15.60	6000	104.86	2.97	16.29	159.64	54.41
		CPT9225/12U			2.50	30.00	8000	138.48	3.92	25.69	251.76	60.65
		CPT9225/24L	24	15~27	0.07	1.68	2500	42.39	1.20	2.91	28.52	35.40
		CPT9225/24M			0.13	3.12	3000	51.23	1.45	4.44	43.51	39.36
		CPT9225/24H			0.23	5.52	3800	64.21	1.77	5.93	58.11	44.49
		CPT9225/24E			0.60	14.40	6000	104.86	2.97	16.29	159.64	54.41
		CPT9225/24U			1.10	26.40	8000	138.48	3.92	25.69	251.76	60.65
		CPT9225/48L	48	30~55	0.03	1.44	2500	42.39	1.20	2.91	28.52	35.40
		CPT9225/48M			0.05	2.40	3000	51.23	1.45	4.44	43.51	39.36
		CPT9225/48H			0.10	4.80	3800	64.21	1.77	5.93	58.11	44.49
		CPT9225/48E			0.23	11.04	6000	104.86	2.97	16.29	159.64	54.41
		CPT9225/48U			0.45	21.60	8000	138.48	3.92	25.69	251.76	60.65
