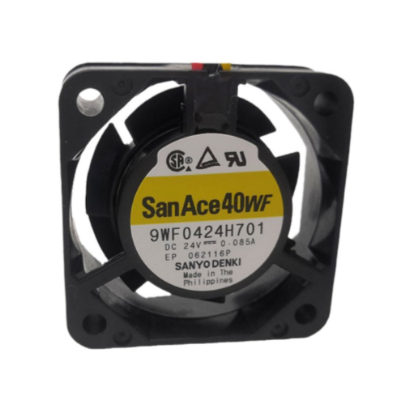

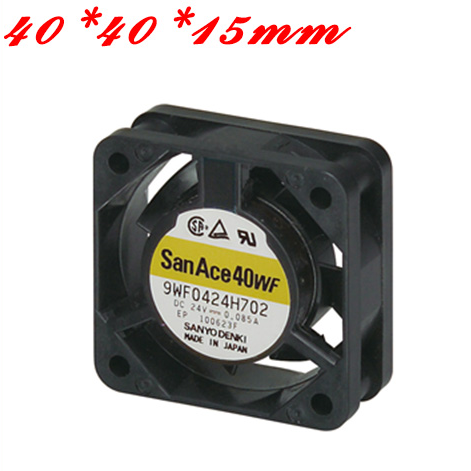

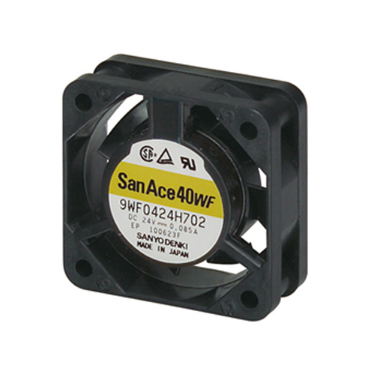

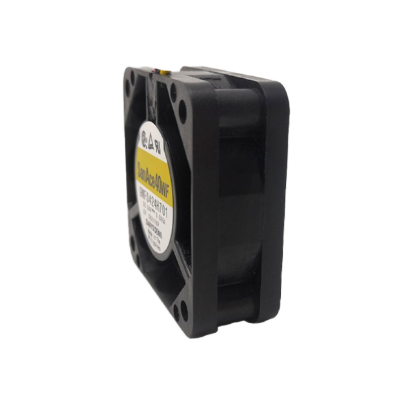

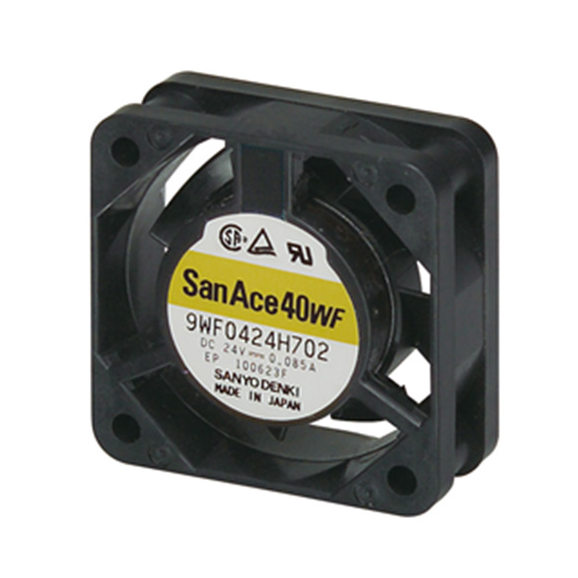

40×40×15 mm Oil Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow

· Mass：35g

This fan can be used in environments with oil mist.*
* Environment where cutting oil creates oil mist. Conduct a product evaluation with the type of oil to be used.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category

Model

Model no.

Rated Voltage

Operating
voltage range

Rated
current

Rated input

Rated Speed

Max. airflow

Max. static
pressure

SPL

Operating
temperature

Expected life

[V]

[A]

[W]

[min-1]

[m3/min]

[CFM]

[Pa]

[inchH2O]

[dB(A)]

[˚C]

[h]

Oil Proof Fan

40×40×15 mm

9WF0424H701

20.4 to 27.6

0.085

2.04

11300

0.195

6.9

0.32

-20 to +70

40000/60˚C
(70000/40˚C)
