Specifications
| Category | Model | Model Number | Compatible Power for 6-Pulse Rectifier | Rated Current | Inductance | weight | Overall Dimensions | Mounting Dimensions | Mounting Hole Size |
| （KW） | (A) | （mH) | （Kg) | （L*W*H） | （L1*W1） | （A*B) | |||

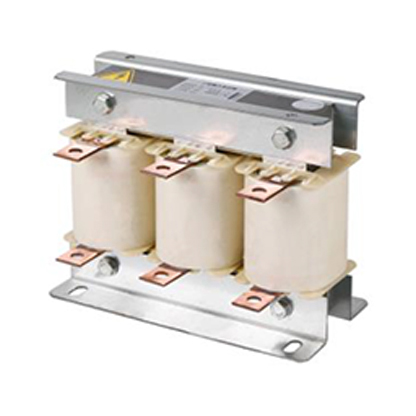

| Reactor | AC380V Line Reactor | SHKR-2.2 | 2.2 | 5 | 2.8 | 2.5 | 96*80*140 | 48*47 | 6*11 |
| SHKR-4 | 4 | 10 | 1.4 | 2.6 | 120*90*160 | 72*52 | 6*11 | ||
| SHKR-5.5 | 5.5 | 15 | 0.934 | 2.7 | 120*90*160 | 72*52 | 6*11 | ||
| SHKR-7.5 | 7.5 | 20 | 0.7 | 3.5 | 150*100*190 | 137*53 | 6*11 | ||
| SHKR-11 | 11 | 30 | 0.467 | 4.8 | 150*115*190 | 137*66 | 6*11 | ||
| SHKR-15 | 15 | 35 | 0.4 | 5 | 150*115*190 | 137*66 | 6*11 | ||
| SHKR-18.5 | 18.5 | 40 | 0.35 | 5.6 | 180*115*220 | 165*67 | 8*14 | ||
| SHKR-22 | 22 | 50 | 0.28 | 6 | 180*115*220 | 165*67 | 8*14 | ||
| SHKR-30 | 30 | 60 | 0.234 | 7.5 | 180*130*160 | 165*77 | 8*14 | ||
| SHKR-37 | 37 | 80 | 0.175 | 9 | 180*145*160 | 165*87 | 8*14 | ||
| SHKR-45 | 45 | 90 | 0.156 | 12 | 230*135*190 | 210*75 | 8*14 | ||
| SHKR-55 | 55 | 110 | 0.128 | 12.5 | 230*135*190 | 210*75 | 8*14 | ||
| SHKR-75 | 75 | 150 | 0.0934 | 15.5 | 230*150*220 | 210*80 | 8*14 | ||
| SHKR-90 | 90 | 200 | 0.07 | 19.5 | 230*165*220 | 210*95 | 8*14 | ||
| SHKR-110 | 110 | 250 | 0.056 | 20.5 | 230*165*220 | 210*95 | 8*14 | ||
| SHKR-132 | 132 | 300 | 0.0467 | 26 | 230*185*250 | 210*105 | 8*14 | ||
| SHKR-160 | 160 | 350 | 0.04 | 26.5 | 230*185*250 | 210*105 | 8*14 | ||
| SHKR-200 | 200 | 400 | 0.035 | 30.5 | 270*185*285 | 245*106 | 11.5*18 | ||
| SHKR-220 | 220 | 450 | 0.0312 | 35.5 | 270*205*285 | 245*116 | 11.5*18 | ||
| SHKR-250 | 250 | 500 | 0.028 | 36.5 | 270*205*285 | 245*116 | 11.5*18 | ||
| SHKR-280 | 280 | 560 | 0.025 | 45.5 | 300*225*300 | 275*149 | 11.5*18 | ||
| SHKR-315 | 315 | 630 | 0.0222 | 46 | 300*225*300 | 275*149 | 11.5*18 | ||
| SHKR-350 | 350 | 720 | 0.0195 | 55.5 | 350*245*320 | 325*139 | 11.5*18 | ||
| SHKR-400 | 400 | 800 | 0.0175 | 57 | 350*245*320 | 325*139 | 11.5*18 | ||
| SHKR-500 | 500 | 1000 | 0.014 | 75 | 350*265*365 | 325*159 | 11.5*18 | ||
| SHKR-560 | 560 | 1200 | 0.0117 | 90 | 420*255*400 | 310*137 | 13*23 | ||
| SHKR-630 | 630 | 1500 | 0.00934 | 103 | 420*280*450 | 310*137 | 13*23 | ||
| SHKR-800 | 800 | 1800 | 0.0078 | 137 | 420*330*450 | 310*177 | 13*23 |
