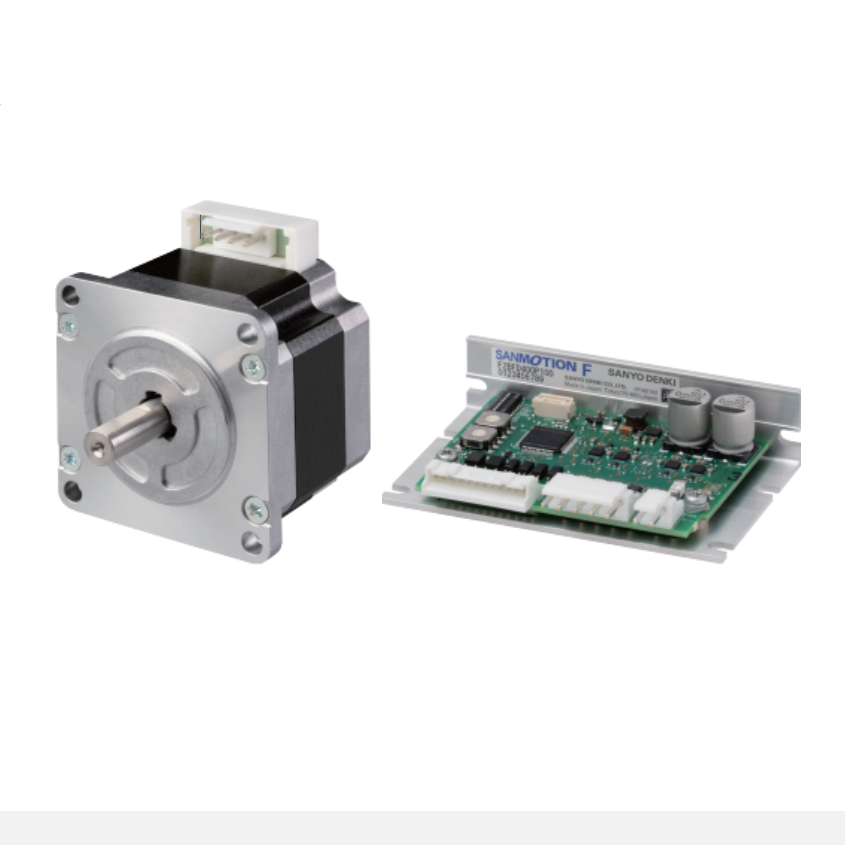

Specifications
| Model no. | Product name | Basic step angle | Motor flange size | Motor length | Single /Dual shaft | Output shaft | Holding torque | Rotor inertia | Wiring | Connection type | Allowable radial load | Allowable radial load | Operating temperature range | Operating humidity range |
| [º] | [mm] | [mm] | [N∙m] | [×10-4kg·m²] | [N] | [N] | ||||||||
| 103H6701-0110 | 2-PhaseStepping Motor | 1.8 | □50 | 39.8 | Dual shaft | Circular | 0.28 | 0.057 | Unipolar | Lead wire type | 15 | 71 | -10～50℃ | 20 to 90% RH (non-conde) |
| 103H89223-0911 | 2-PhaseStepping Motor | 1.8 | φ106 | 221.3 | Dual shaft | With key | 15.5 | 22 | Unipolar | Lead wire type | 100 | 321 | -10～50℃ | 20 to 90% RH (non-conde) |
| DB16H671D | 2-PhaseStepping Motor | 1.8 | □50 | 41.8 | Dual shaft | D-shaped | 0.28 | 0.1 | Bipolar | Lead wire type | 15 | 70 | ||
| DU14S281D | 2-PhaseStepping Motor | 1.8 | □28 | 32 | Dual shaft | D-shaped | 0.055 | 0.01 | Unipolar | Lead wire type | 3 | 42 | ||
| SF2421-10B11 | 2-PhaseStepping Motor | 1.8 | □42 | 33 | Dual shaft | D-shaped | 0.29 | 0.031 | Bipolar | Connector type | 10 | 20 | -10～50℃ | 20 to 90% RH (non-conde) |
| SF2424-10B11 | 2-PhaseStepping Motor | 1.8 | □42 | 59.5 | Dual shaft | D-shaped | 0.8 | 0.094 | Bipolar | Connector type | 10 | 20 | -10～50℃ | 20 to 90% RH (non-conde) |
| SH1421-0411 | 2-PhaseStepping Motor | 0.9 | □42 | 33 | Dual shaft | D-shaped | 0.2 | 0.044 | Unipolar | Lead wire type | 10 | 22 | -10 ～ +50℃ | 20 to 90% RH (non-conde) |
| SH1422-0411 | 2-PhaseStepping Motor | 0.9 | □42 | 39 | Dual shaft | D-shaped | 0.29 | 0.066 | Unipolar | Lead wire type | 10 | 22 | -10 ～ +50℃ | 20 to 90% RH (non-condensing) |
| SH2285-5131 | 2-PhaseStepping Motor | 1.8 | □28 | 51.5 | Dual shaft | D-shaped | 0.115 | 0.022 | Unipolar | Lead wire type | 3 | 42 | -10 ～ +50℃ | 20 to 90% RH (non-condensing) |
| SH2861-0411 | 2-PhaseStepping Motor | 1.8 | □86 | 66 | Dual shaft | D-shaped | 2.5 | 1.48 | Unipolar | Lead wire type | 60 | 167 | -10 ～ +50℃ | 20 to 90% RH (non-condensing) |
| SH3537-12U10 | 2-PhaseStepping Motor | 1.8 | □35 | 37 | Dual shaft | Circular | 0.15 | 0.025 | Unipolar | Lead wire type | 10 | 40 | -10 ～ +50℃ | 20 to 90% RH (non-condensing) |
| SP2563-5000 | 2-PhaseStepping Motor | 1.8 | □56 | 80 | Single shaft | D-shaped | 1 | 0.21 | Bipolar | Connector type | 15 | 52 | -10 ～ +40℃ | 95% RH max.: Under 40°C(no condensation |
| SP2861-5000 | 2-PhaseStepping Motor | 1.8 | □86 | 89.5 | Single shaft | D-shaped | 3.3 | 1.48 | Bipolar | Connector type | 60 | 200 | -10 ～ +40℃ | 95% RH max.: Under 40°C (no condensation) |
| SS2501-8010 | 2-PhaseStepping Motor | 1.8 | □50 | 11.4 | Dual shaft | Circular | 0.1 | 0.026 | Bipolar | Lead wire type | 4.9 | 8.5 | -10～50℃ | 95% RH max.: Under 40° C(no condensation |
| Driver | |||
| Driver | Power Supply Specification | Input Type | |
| AC Driver | AC 100 to 240 V* | Pulse Input Type | |
| DC Driver | DC 24 V / 36 V | Pulse Input Type | |
| *For 42 mm motor: Input power supply is AC 100V to 120V | |||
| Stepper Motor | |||
| Motor Size | Basic Step Angle | Notes | |
| 14mm | 1.8° | Dual-pole Only | |
| 28mm | 1.8° | Single-pole Only | |
| 35mm | 1.8° | Single-pole Only | |
| 42mm | 1.8°, 0.9° | - | |
| 50mm | 1.8° | - | |
| 56mm | 1.8° | - | |
| 60mm | 1.8°, 0.9° | - | |
| 86mm | 1.8° | - | |
| φ86mm | 1.8° | Dual-pole Only | |
| φ106mm | 1.8° | - | |
| Compatible Models | ||||
| Motor Size | AC Input (Dual-pole) | DC Input (Single-pole) | DC Input (Dual-pole) | |
| 42 mm*, 60 mm, 86 mm | 28 mm, 42 mm, 56 mm | 28 mm, 42 mm, 50 mm, 56 mm, 60 mm | ||
| *For 42 mm motor: Input power supply is AC 100V to 120V | ||||
