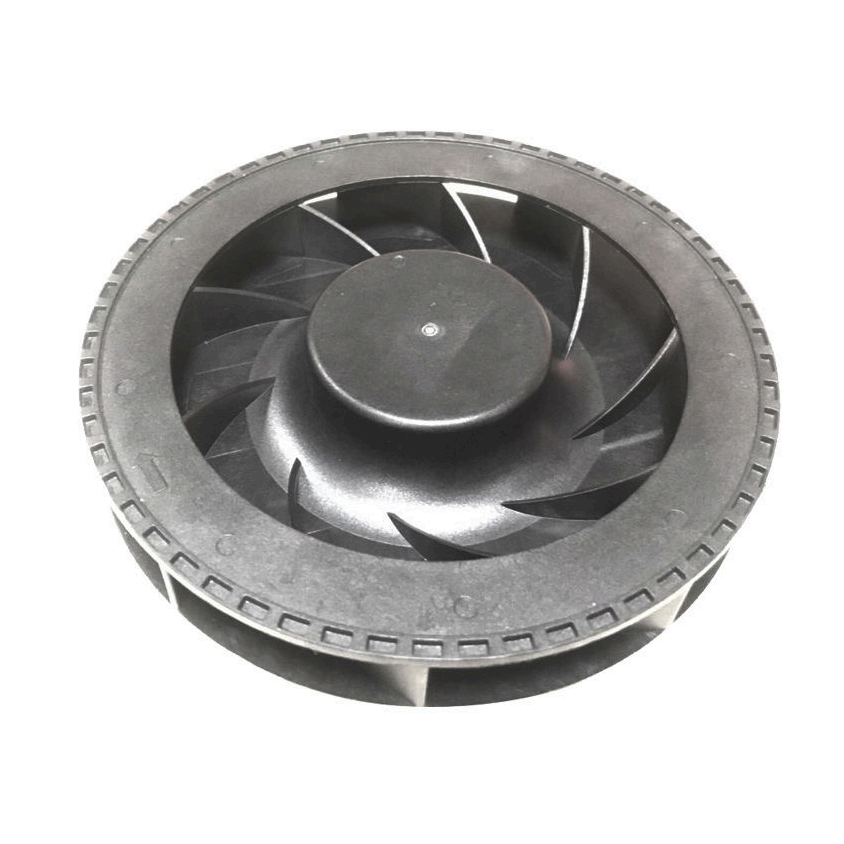

120×26mm DC Centrifugal Fan

Size: 120*26（mm）
Frame Type: Aluminum Alloy
Impeller Type: Black PBT (UL94V-0)

Operation Temperature: -20℃~60℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball Bearing


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated Voltage	Operating Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Rated Voltage	Operating Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
Centrifugal Fans	120×26mm DC Centrifugal Fan	CPT12025/12L	12	7~14	0.50	6.00	2500	43.96	1.24	9.75	95.61	47.08
		CPT12025/12M			0.70	8.40	3000	52.75	1.49	14.04	137.69	51.04
		CPT12025/12H			1 .20	14.40	3600	63.30	15.00	20.22	198.29	55.00
		CPT12025/12E			1 .80	21.60	4000	70.33	1.99	24.96	244.77	57.29
		CPT12025/24L	24	15~27	0.22	5.28	2500	43.96	1.24	9.75	95.61	47.08
		CPT12025/24M			0.33	7.92	3000	52.75	1.49	14.04	137.69	51.04
		CPT12025/24H			0.60	14.40	3600	63.30	1.79	20.22	198.29	55.00
		CPT12025/24E			0.85	20.40	4000	70.33	1.99	24.96	244.77	57.29
		CPT12025/48L	48	30~55	0.13	6.24	2500	43.96	1.24	9.75	95.61	47.08
		CPT12025/48M			0.20	9.60	3000	52.75	1.49	14.04	137.69	51.04
		CPT12025/48H			0.32	15.36	3600	63.30	1.79	20.22	198.29	55.00
		CPT12025/48E			0.42	20.16	4000	70.33	1.99	24.96	244.77	57.29

Hot Tags: 120×26mm DC Centrifugal Fan, 12025 DC Centrifugal Fan, 120×26mm DC Centrifugal Blower, 120mm Diameter DC Inline Duct Fan, Round DC Centrifugal Fan 120X26, Compact Duct Blower For Air Purifier 120mm, Low Profile 120mm DC Blower Wheel, DC Blower Wheel For Laboratory Fume Hood, Smart Air Purifier Blower, Bedroom Ventilation Blower, China, Customized, wholesale, Bulk, buy discount, low price, cheap, manufacturing company, manufacturers, factory, suppliers, for sale, Free Sample, in stock

120×26mm DC Centrifugal Fan 12025 DC Centrifugal Fan 120×26mm DC Centrifugal Blower 120mm Diameter DC Inline Duct Fan Round DC Centrifugal Fan 120X26 Compact Duct Blower For Air Purifier 120mm Low Profile 120mm DC Blower Wheel DC Blower Wheel For Laboratory Fume Hood Smart Air Purifier Blower Bedroom Ventilation Blower

Certified By UL (E507533), TUV, CE, ISO9001 And Other Certifications

We have a professional R&D team and are a manufacturing enterprise integrating the R&D, production, and sales of DC, AC, and EC cooling fans. We are also the chief distributor of SANYO DENKI. We are committed to becoming a high-quality supplier of cooling fans for various industries, and are dedicated to providing you with cost-effective products and comprehensive after-sales service.
