Linear Servo System

A linear servo motor is a transmission device that directly converts electrical energy into linear motion mechanical energy, without the need for any intermediate conversion mechanism. It can be thought of as a rotary motor that is cut radially and unfolded into a flat shape.
Cored, coreless, cylindrical, and magnetic force compensation linear servo systems are particularly suitable for high-speed, high-precision applications. They are best suited for semiconductor manufacturing equipment, chip placement machines, and similar devices.
Linear servo systems are suitable for applications requiring high speed and high precision.
These products are applicable to semiconductor manufacturing equipment, LCD manufacturing equipment, chip placement machines, wire bonders, conveyors, and similar applications.
There is no magnetic attraction force on the equipment.
It is an industry-innovative center magnet-type linear servo motor.
Inside the motor structure, magnetic attraction forces are canceled out, simplifying the device structure.
It features an industry-leading 25G*1 acceleration.
This enables fast equipment driving, helping to shorten equipment cycle times and improve productivity.
Compared with our traditional models, the center magnet type has a 30% smaller volume, and the double magnet type has a 12% smaller volume. *2


Availability:



Inquire Add to Basket

Product Description

Specifications

Model no.	Product name	Motor classification	Rated thrust	Max. thrust	Rated speed	Max. speed	Magnetic attraction force
Model no.	Product name	Motor classification	[N]	[N]	[m/s]	[m/s]	[N]
DD035CC2AN	Dual Magnet type [with core]	Linear	610	1400	2	3	0
DD045CB4AN	Dual Magnet type [with core]	Linear	800	2200	1.9	3	600
DE0AC001A03CX00	Cylinder Linear	Linear	5.1	16.5	1	2	0
DE0BC005A05CX00	Cylinder Linear	Linear	15	50	0.7	1.4	0
DS045CC1AN	Flat type [with core]	Linear	260	1700	1.8	3	1700
DT030CD1AN	Center Magnet type [with core]	Linear	350	650	1.9	2.5	0

Linear Servo System
Linear Servo Motor	Cored Flat Type	Coreless Double-Row Type
Maximum Thrust	350N to 5100N	630N to 6400N
Rated Thrust	160N to 2400N	430N to 4150N

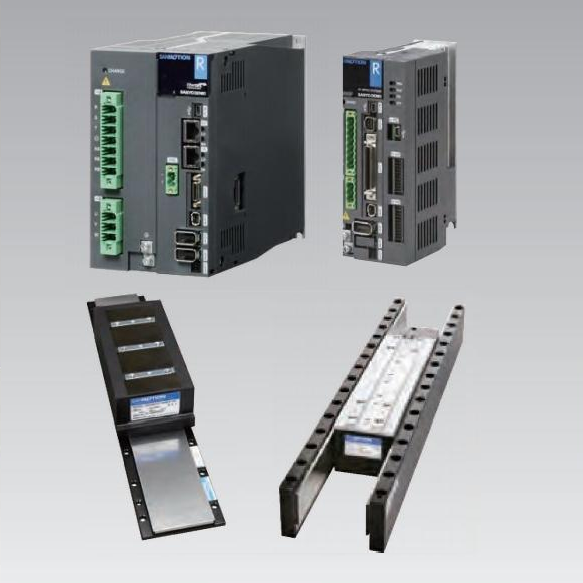

It can be used in combination with the AC servo amplifier "SANMOTION R".

Small Cylinder-Type Linear Servo Motor
Parameter		Specification
Size		12mm
Rated Thrust		5.1N
Maximum Thrust		16.5N
Linear Encoder		Optical Incremental

LINEAR SERVO MOTOR
Model	Symbol	Unit	DM01GG011A37CX00	DM04GG011A37CX00
Model	Symbol	Unit	Single-axis	4-axis integrated
Driving method	-	-	Sine wave
Excitation	-	-	Permanent magnet
Rated	-	-	Continuous
Rated thrust	FR	N	3.5	3.5
Continuous speed thrust	FS	N	3.5	3.5
Maximum thrust	FP	N	11	11
Rated speed	VR	m/s	1.0	1.0
Maximum speed	Vmax	m/s	1.0	1.0
Axis pitch	PA	mm	-	24
Mover mass	MC	g	37	37
Stator mass	W	g	270	1300
Linear encoder			Incremental encoder
Linear encoder resolution (after 4x interpolation)		μm	1.0	1.0
Thrust-speed characteristic example (DC48V specification)

Matching Servo Driver
Servo Driver Model	RF2G21LBA10	RS2K04AAHA5	RF2J24A8HL5
Driver Capacity	40 A
Power Voltage (Main Circuit / Control)	DC 48 V / DC 5 V	DC 48 V / DC 24 V
Interface	Pulse Input	EtherCAT
External Dimensions (mm)	30 × 116 × 70	40 × 160 × 85	50 × 200 × 130
Controlled Axes	Single-axis		4-axis
