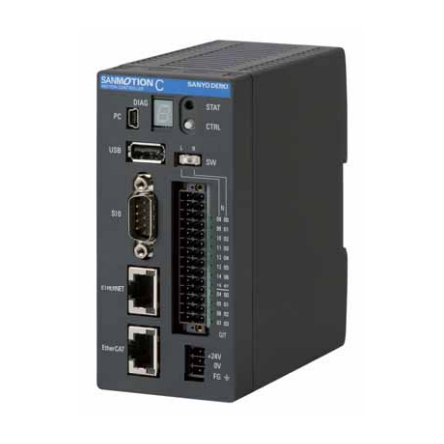

Motion Controller

Integrating motion control, robot control and sequence control in one unit, it can reduce equipment costs while shortening the development cycle. Its interfaces are compatible with a variety of different industrial networks. It is most suitable for handling robots, general industrial machinery and other applications. In addition, a matching image processing device and touch panel have been developed.
It is equipped with a high-speed fieldbus EtherCAT interface.
You can choose between the high-performance model (Model: SMC100-A) that supports robot control, or the PTP (Point-to-Point) positioning-enhanced model (Model: SMC100-B).
It is suitable for controlling assembly equipment and material handling equipment.
It is equipped with an AC servo system and a closed-loop stepping system (Model No.: PB) that feature EtherCAT interfaces.


Availability:



Inquire Add to Basket

Product Description

Specifications

Model no.	Item	Interface	Maximum input power	Input power supply	No. of inputs	Input type	No. of digital outputs	Output type	Control functions - No. of controllable axes	Operating ambient temperature	Remarks
Model no.	Item	Interface	(W)	[V]	No. of inputs	Input type	No. of digital outputs	Output type	Control functions - No. of controllable axes	Operating ambient temperature	Remarks
SMC100-A	Motion controller	EtherCAT	19.2	DC24(DC19.2 ~ DC30)	16	Positive/Negative common input	8	Sinking output	8 axes	0 ~ + 55℃	Sequence control Motion control (Electronic cam and gear, linear interpolation, circular interpolation) Robot control (Cartesian coordinate, SCARA, and parallel link robots)
SMC100-B	Motion controller	EtherCAT	19.2	DC24(DC19.2 ~ DC30)	16	Positive/Negative common input	8	Sinking output	8 axes	0 ~ + 55℃	Sequence control Motion control (PTP control)
SMC-USBW-01	Wireless_adapter	USB 2.0 A型		DC5						0 ~ + 55℃	Wireless standard: Compliant with IEEE802.11b / IEEE802.11g / IEEE802.11n Operating frequency band: 2.4 GHz band Channels: 1 to 13 Maximum communication speed: 72.2 Mbps Wireless LAN mode: Access point mode
