3-phase Stepping Systems

Here is the product information about SANYO Motor 3 - Phase Stepping Systems:

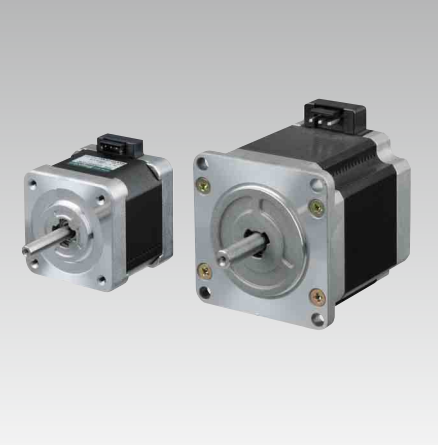

The SANMOTION F3 series of three - phase stepping systems produced by Sanyo Denki is quite representative. Its basic step angle is 1.2°, which has the advantages of low cost, high precision, and high cost - performance. It has the following characteristics:
（1）Low Vibration: Compared with the traditional products, the vibration is reduced by about 10%. The low - vibration mode function can also provide smooth driving even in the case of coarse resolution settings such as one - division (full - step) and two - division (half - step).
（2）Adjustable Parameters: The setup software can be used with a personal computer to adjust control parameters, or to analyze alarms and operation status.
（3）Micro - Step Drive: The basic step angle of 1.2° can be set to a resolution of up to 256 divisions (for AC input) or 16 divisions (for DC input), realizing smooth operation with minimal vibration.
（4）Wide Voltage Range: It can handle a wide range of input voltages from 100V to 240V AC (the 42mm square motor model only supports 100V to 120V AC), and the input voltage is automatically detected to use the optimal motor characteristics for control.
（5）Compact Size: The volume is 24% smaller than that of traditional products, which is more suitable for use in occasions with limited installation space.
（6）Multiple Options: Optional accessories include a 4000 p/r high - resolution encoder and a motor with an electromagnetic brake. The switch timing of the motor with an electromagnetic brake is automatically controlled, and an external power supply for the brake is not required.
This series of products is applicable to machine tools, semiconductor - related devices, food - related equipment, industrial sewing machines and other fields.
