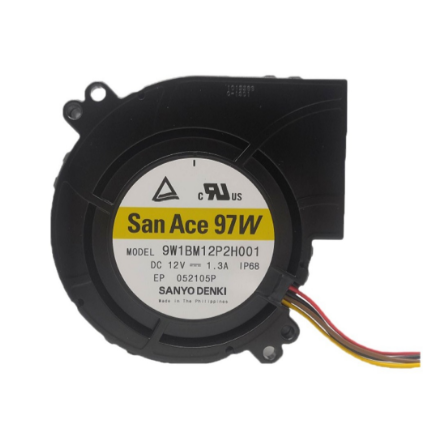

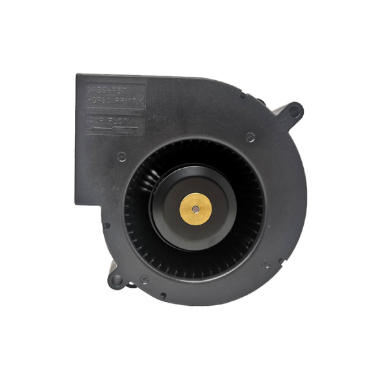

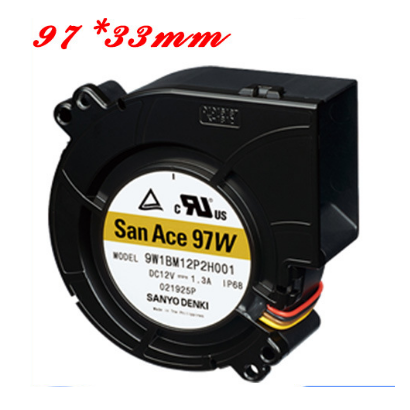

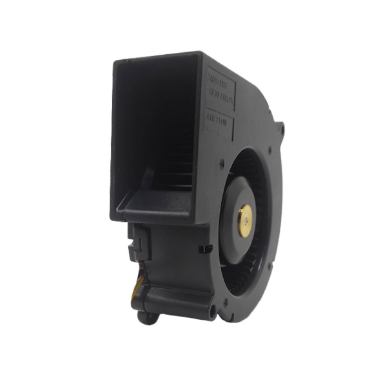

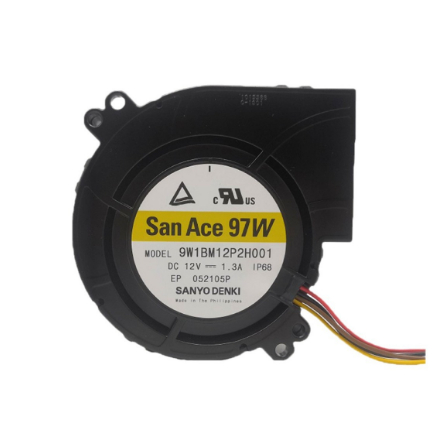

97×33 mm Splash Proof Blower

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow

· Mass：175g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Blower	97×33 mm	9W1BM12P2H001	12	10.2 to 13.8	100	1.3	15.6	4800	1.09	38.5	540	2.17	58	-20 to +70	40000/60˚C (70000/40˚C)
		9W1BM12P2H001			20	0.14	1.68	1500	0.32	11.3	51	0.2	30
		9W1BM12P2M001			100	0.9	10.8	4100	0.93	32.8	380	1.53	55
		9W1BM12P2M001			20	0.14	1.68	1500	0.32	11.3	51	0.2	30
		9W1BM24P2H001	24	20.4 to 27.6	100	0.65	15.6	4800	1.09	38.5	540	2.17	58
		9W1BM24P2H001			20	0.07	1.68	1500	0.32	11.3	51	0.2	30
		9W1BM24P2M001			100	0.45	10.8	4100	0.93	32.8	380	1.53	55
		9W1BM24P2M001			20	0.07	1.68	1500	0.32	11.3	51	0.2	30
