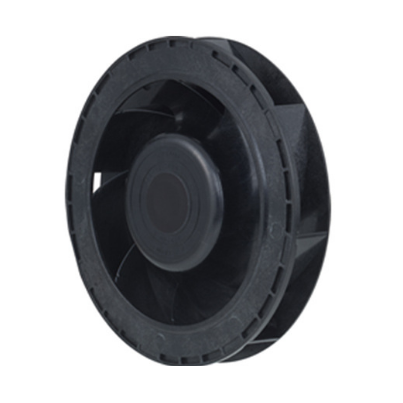

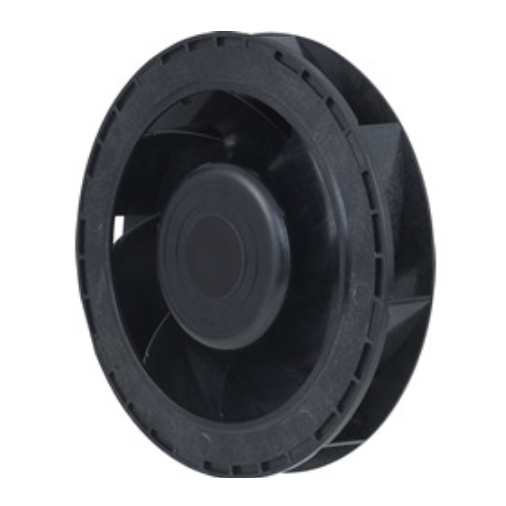

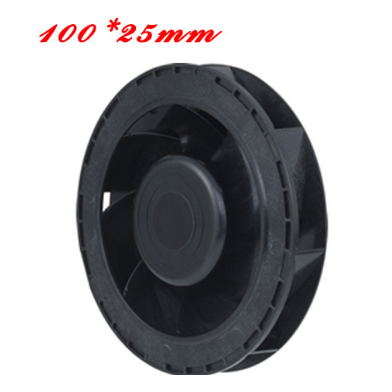

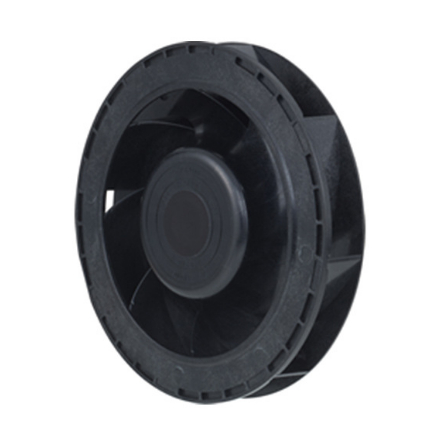

100×25 mm Splash Proof Centrifugal Fan

General Specifications
· Material
Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：190g

· Ingress protection：IP68 For more information on IP rating, refer to p. 625.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Centrifugal Fan	ø100×25 mm	9W2TM24P4G001	24	18 to 27.6	100	0.7	16.8	7400	2.03	71.7	708	2.84	65	-20 to +70	40000/60˚C (70000/40˚C)
		9W2TM24P4G001			20	0.04	0.96	1500	0.39	14	30	0.12	31
		9W2TM24P4H001			100	0.44	10.56	6400	1.77	62.5	560	2.25	60
		9W2TM24P4H001			20	0.04	0.96	1500	0.39	14	30	0.12	31
		9W2TM48P4G001	48	36 to 60	100	0.35	16.8	7400	2.03	71.7	708	2.84	65
		9W2TM48P4G001			20	0.04	1.92	1500	0.39	14	30	0.12	31
		9W2TM48P4H001			100	0.22	10.56	6400	1.77	62.5	560	2.25	60
		9W2TM48P4H001			20	0.04	1.92	1500	0.39	14	30	0.12	31
