| Model no. | Product name | Motor flange size | Rated output | Rated armature voltage | Rated speed | Maximum speed | Continuous stall torque | Peak stall torque | Rotor inertia | Tachometer generator - Rotor inertia | Encoder type | Generator - Protection rating | Ambient temperature |
| [mm] | [kW] | [V] | [min-1] | [min-1] | [N∙m] | [N·m] | [×10-4kg·m²] | [×10-4kg∙m²] | |||||

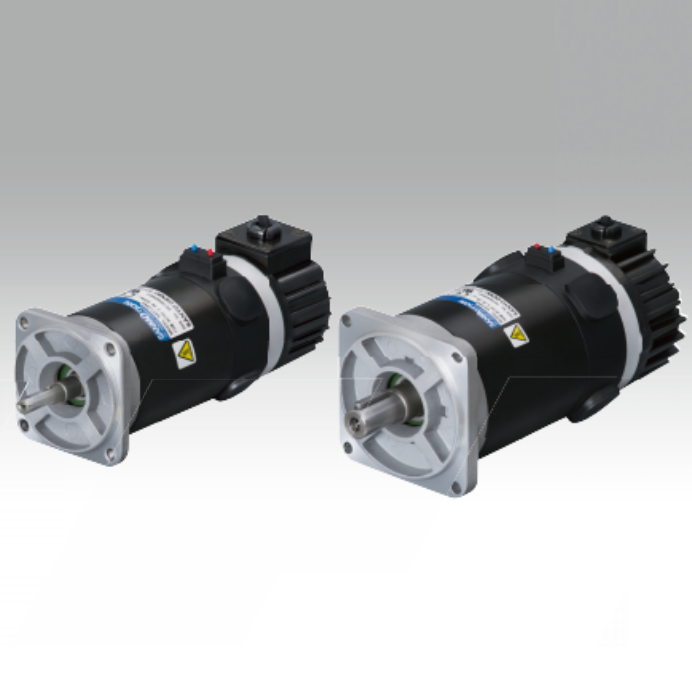

| KA404TXX | DC Servo Motor | □42 | 0.04 | 72 | 3000 | 5000 | 0.14 | 0.76 | 0.084 | 0.01 | IP43 | 0～40℃ | |
| KA406TXX | DC Servo Motor | □42 | 0.06 | 70 | 3000 | 5000 | 0.2 | 1.2 | 0.108 | 0.011 | Incremental encoder | IP43 | 0～40℃ |
| KA506BS0 | DC Servo Motor | □54 | 0.06 | 75 | 3000 | 5000 | 0.24 | 1.8 | 0.22 | Incremental encoder | IP43 | 0～40℃ | |
| KA511BS0 | DC Servo Motor | □54 | 0.11 | 75 | 3000 | 5000 | 0.42 | 3.4 | 0.37 | Incremental encoder | IP43 | 0～40℃ | |
| KA720BS0 | DC Servo Motor | □76 | 0.2 | 80 | 3000 | 5000 | 0.77 | 5.4 | 1.47 | Incremental encoder | IP43 | 0～40℃ | |
| KA730BS0 | DC Servo Motor | □76 | 0.3 | 75 | 2500 | 4000 | 1.43 | 9.8 | 2.7 | Incremental encoder | IP43 | 0～40℃ | |
| KA840BS0 | DC Servo Motor | □88 | 0.04 | 85 | 2500 | 4000 | 1.7 | 12 | 5 | Incremental encoder | IP43 | 0～40℃ | |
| KA850BS0 | DC Servo Motor | □88 | 0.5 | 80 | 2500 | 3000 | 2.16 | 16.7 | 6 | Incremental encoder | IP43 | 0～40℃ | |
| KB402TXX | DC Servo Motor | □42 | 0.023 | 20 | 3000 | 5000 | 0.08 | 0.42 | 0.047 | 0.011 | IP43 | 0～40℃ | |
| KB404TXX | DC Servo Motor | □42 | 0.04 | 24 | 3000 | 5000 | 0.14 | 0.76 | 0.084 | 0.011 | IP43 | 0～40℃ | |
| KB406TXX | DC Servo Motor | □42 | 0.06 | 24 | 3000 | 5000 | 0.2 | 1.2 | 0.108 | 0.011 | IP43 | 0～40℃ | |
| KB506BS0 | DC Servo Motor | □54 | 0.06 | 24 | 3000 | 5000 | 0.24 | 1.8 | 0.22 | Incremental encoder | IP43 | 0～40℃ | |
| KB511BS0 | DC Servo Motor | □54 | 0.08 | 24 | 3000 | 5000 | 0.32 | 2.16 | 3.7 | Incremental encoder | IP43 | 0～40℃ |
Features
| High Precision (Smooth Rotation) | Compared with our previous models*, the cogging torque is reduced by up to 1/2. It operates smoothly even at low speeds, which helps improve the motion precision of your equipment. | ||||||
| Energy Efficiency (High Performance) | Compared with our previous models*, power loss is reduced by up to 30% and efficiency is increased by 10%. This helps reduce equipment heat generation and achieve energy savings. | ||||||
| Low Noise | Vibration caused by the carbon brush is reduced, and the rigidity of the motor structural components is enhanced. Compared with our previous models*, the noise is reduced by up to 8 dB. | ||||||
| Protection Class IP43 | The protection class of the servo motor is IP43 for all models. | ||||||
| Product Line with Low-Voltage Specifications | We offer motors in the DC 75V series and low-voltage specifications (DC 24V series). These can be safely applied to equipment that operates near people, such as medical devices. | ||||||
| Linear Actuator Stepper Motor | Motor Size |
| With Brake, Without Brake | 42mm, 60mm |
