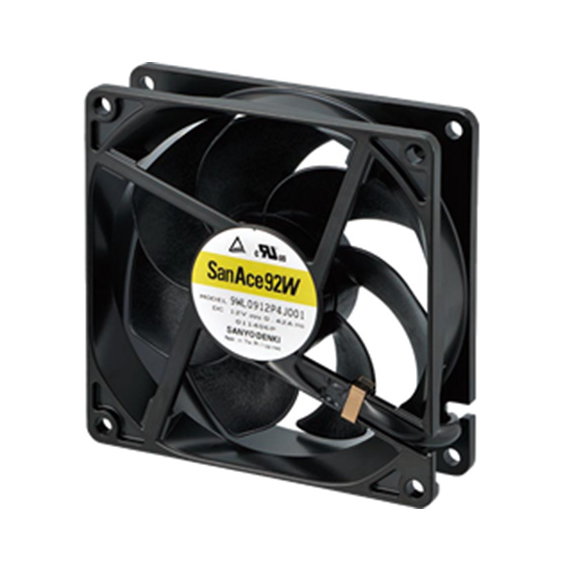

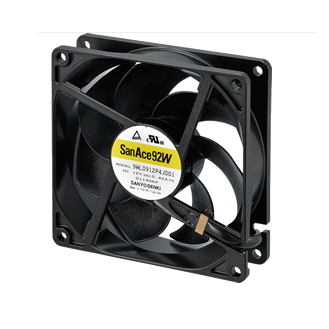

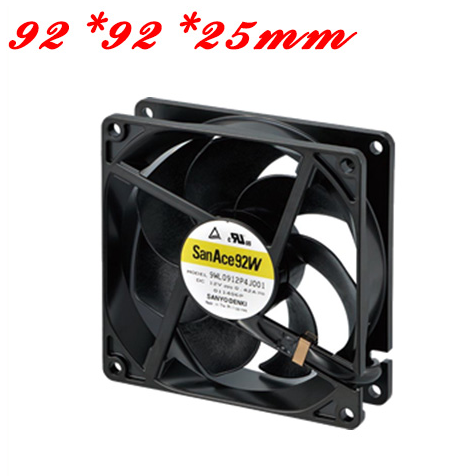

92×92×25 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：150g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	92×92×25 mm	9WPA0912P4G001	12	10.8 to 13.2	100	0.5	6	5700	2.45	86.5	126	0.51	47	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0912P4G001	12	10.8 to 13.2	20	0.04	0.5	1200	0.52	18.4	6	0.02	11
		9WPA0924P4G001	24	21.6 to 26.4	100	0.25	6	5700	2.45	86.5	126	0.51	47
		9WPA0924P4G001	24	21.6 to 26.4	20	0.03	0.7	1200	0.52	18.4	6	0.02	11
		9WPA0924S4001	24	12 to 27.6		0.1	2.4	3900	1.67	59	59	0.24	37	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0924H4001				0.08	1.92	3400	1.46	51.5	44.8	0.18	33
		9WPA0924F4001				0.06	1.44	2900	1.24	43.8	32.6	0.13	28
		9WPA0924B4001				0.04	0.96	2100	0.9	31.7	17.1	0.07	18
		9WL0912P4J001	12	10.8 to 13.2	100	0.42	5.04	5000	2.2	77.7	105	0.42	44	-20 to +70	180000/60˚C (215000/40˚C)
		9WL0912P4J001			20	0.04	0.48	1200	0.52	18.4	6.04	0.024	11
		9WL0912P4G001			100	0.3	3.6	4400	1.93	68.2	81	0.33	40
		9WL0912P4G001			20	0.04	0.48	1000	0.43	15.1	4.18	0.016	8
		9WL0912P4S001			100	0.22	2.64	3850	1.69	59.7	62.1	0.25	37
		9WL0912P4S001			30	0.04	0.48	1400	0.61	21.5	8.21	0.032	13
		9WL0912P4H001			100	0.15	1.8	3150	1.38	48.7	41.6	0.17	32
		9WL0912P4H001			35	0.04	0.48	1100	0.48	16.9	5.07	0.02	9
		9WL0924P4J001	24	21.6 to 26.4	100	0.21	5.04	5000	2.2	77.7	105	0.42	44
		9WL0924P4J001			20	0.02	0.48	1100	0.48	16.9	5.07	0.02	9
		9WL0924P4S001			100	0.11	2.64	3580	1.69	59.7	62.1	0.25	37
		9WL0924P4S001			30	0.02	0.48	1300	0.57	20.1	7.08	0.028	12
		9WL0924P4H001			100	0.07	1.68	3150	1.38	48.7	41.6	0.17	32
		9WL0924P4H001			30	0.02	0.48	1000	0.43	15.1	4.18	0.016	8
		9WL0912M4001	12	10.2 to 13.8		0.08	0.96	2400	1.05	37.1	24.1	0.097	24	-20 to +70	180000/60˚C (215000/40˚C)
		9WL0924F4001	24	20.4 to 27.6		0.05	1.2	2800	1.22	43.1	32.8	0.13	29
		9WL0924M4001	24	20.4 to 27.6		0.04	0.96	2400	1.05	37.1	24.1	0.097	24
