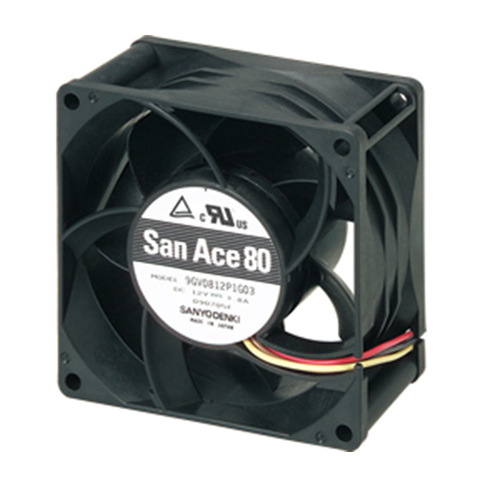

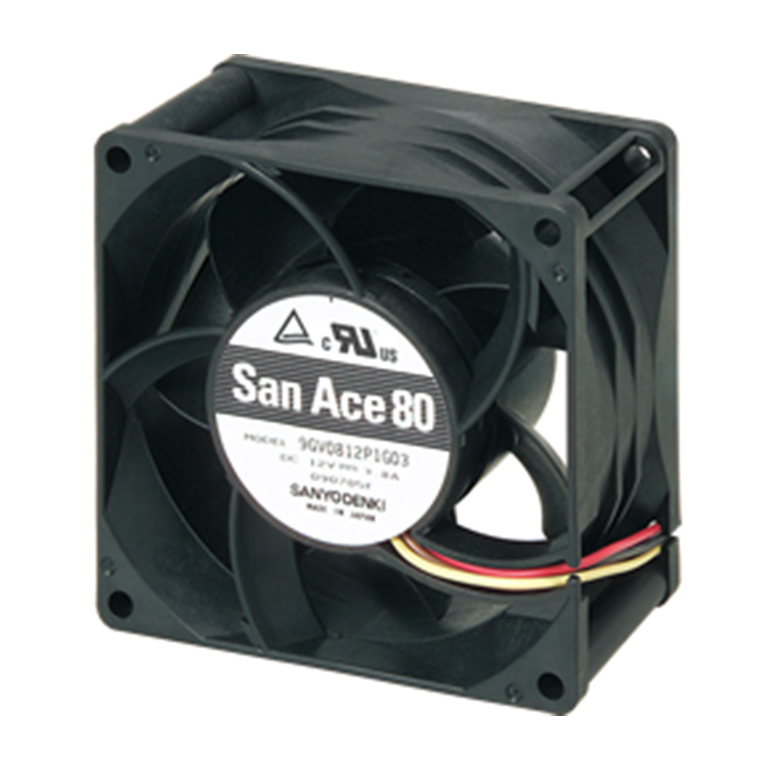

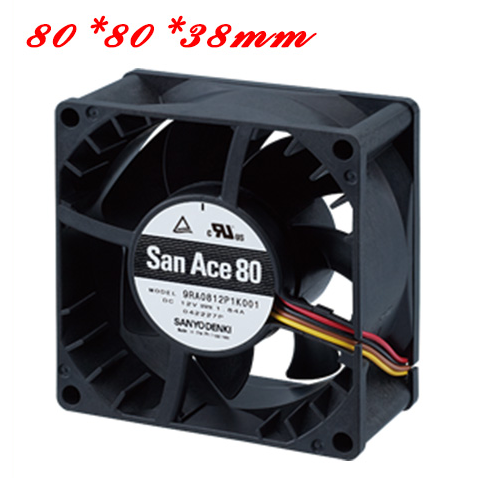

80×80×38 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)

· Mass：230g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	80×80×38 mm	9HVB0812P1G001	12	10.8 to 12.6	100	4.8	57.6	18300	4.0	141.3	1600	6.42	75	-20 to +70	40000/60˚C (70000/40˚C)
		9HVB0812P1G001		10.8 to 12.6	20	0.17	2.0	4300	0.94	33.2	105	0.42	40
		9HVB0812P1S001		10.8 to 13.2	100	3.8	45.6	16800	3.7	130	1400	5.62	73
		9HVB0812P1S001		10.8 to 13.2	20	0.17	2.0	4300	0.94	33.2	105	0.42	40
		9HVA0848P1G601	48	36 to 57	100	0.9	43.2	16100	3.75	132	1250	5.0	73	-20 to +70	40000/60˚C (70000/40˚C)
		9HVA0848P1G601	48	36 to 57	20	0.07	3.36	4200	0.96	33.9	105	0.42	44	-20 to +70	40000/60˚C (70000/40˚C)
		9HV0812P1G601	12	10.8 to 13.2	100	3.4	40.8	14900	3.7	130.7	1000	4.0	69	-20 to +70	40000/60˚C (70000/40˚C)
		9HV0812P1G601			0	0.25	3	4400	1.06	37.5	87.2	0.35	40
		9HV0812P1H601			100	3	36	13500	3.35	118	870	3.49	67
		9HV0812P1H601			0	0.12	1.44	2500	0.6	21.1	28.1	0.11	28
		9HV0812P1S601			100	2.1	25.2	12000	2.9	102	780	3.13	63
		9HV0812P1S601			0	0.12	1.44	2500	0.6	21.1	28.1	0.11	28
		9HV0824P1G003	24	21.6 to 26.4	100	1.7	40.8	14900	3.7	130.7	1000	4.0	69
		9HV0848P1G001	48	36 to 57	100	0.85	40.8	14900	3.7	130.7	1000	4.0	69	-10 to +70
		9HV0848P1G001	48	36 to 57	0	0.13	6.24	4400	1.06	37.5	87.2	0.35	40	-10 to +70
		9GA0812P1G61	12	10.8 to 13.2	100	1.2	14.4	10500	2.85	100.6	480	1.93	60	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0812P1G61			0	0.07	0.48	2000	0.51	18.0	28.7	0.11	21
		9GA0812P1S61			100	0.94	11.28	9550	2.6	91.8	480	1.93	59
		9GA0812P1S61			0	0.1	1.2	2900	0.74	26.1	60	0.24	27
		9GA0812P1H61			100	0.6	7.2	8250	2.25	79.4	380	1.53	55
		9GA0812P1H61			0	0.08	0.96	2500	0.64	22.6	45	0.18	24
		9GA0824P1S61	24	20.4 to 27.6	100	0.47	11.28	9550	2.6	91.8	480	1.93	59
		9GA0824P1S61			0	0.06	1.44	2900	0.74	26.1	60	0.24	27
		9GA0824P1H61			100	0.3	7.2	8250	2.25	79.4	380	1.53	55
		9GA0824P1H61			0	0.05	1.2	2500	0.64	22.6	45	0.18	24
		9GA0848P1S61	48	40.8 to 55.2	100	0.25	12	9550	2.6	91.8	480	1.93	59
		9GA0848P1S61	48	40.8 to 55.2	0	0.04	1.92	2900	0.74	26.1	60	0.24	27
		9GV0812P1G03	12	10.8 to 13.2	100	3.8	45.6	10200	3.9	138.0	490.0	1.97	65	-20 to +70	40000/60˚C (70000/40˚C)
		9GV0812P1G03			0	0.32	3.84	3000	1.15	40.6	42.4	0.17	34
		9GV0812P1H03			100	3.0	36.0	9700	3.7	131.0	440.0	1.77	63
		9GV0812P1H03			0	0.2	2.4	2900	1.11	39.2	39.0	0.16	34
		9GV0824P1G03	24	20.4 to 27.6	100	1.6	38.4	10200	3.9	138.0	490.0	1.97	65
		9GV0824P1G03	24	20.4 to 27.6	0	0.3	7.2	4700	1.79	63.2	104.0	0.41	44
		9GV0848P1G03	48	40.8 to 55.2	100	0.84	40.32	10200	3.9	138.0	490.0	1.97	65
		9GV0848P1G03	48	40.8 to 55.2	0	0.15	7.2	4700	1.79	63.2	104.0	0.41	44
		9RA0812P1K001	12	10.8 to 13.2	100	1.52	18.24	8250	2.96	104.5	307	1.23	53	-20 to +70	40000/60˚C (70000/40˚C)
		9RA0812P1K001			20	0.13	1.56	2500	0.90	31.8	27.7	0.11	21
		9RA0812P1G001			100	0.82	9.84	6750	2.42	85.5	206	0.83	48
		9RA0812P1G001			20	0.08	0.96	1800	0.65	22.9	14.6	0.06	15
		9RA0812P1H001			100	0.66	7.92	6100	2.19	77.3	168	0.67	46
		9RA0812P1H001			20	0.08	0.96	1500	0.54	19.0	10.2	0.04	13
		9RA0824P1G001	24	21.6 to 26.4	100	0.41	9.84	6750	2.42	85.5	206	0.83	48
		9RA0824P1G001	24	21.6 to 26.4	20	0.08	1.92	2800	1.00	35.3	35.4	0.14	24
		9RA0848P1G001	48	43.2 to 52.8	100	0.22	10.56	6750	2.42	85.5	206	0.83	48
		9RA0848P1G001	48	43.2 to 52.8	20	0.05	2.40	3000	1.07	37.8	40.7	0.16	26
