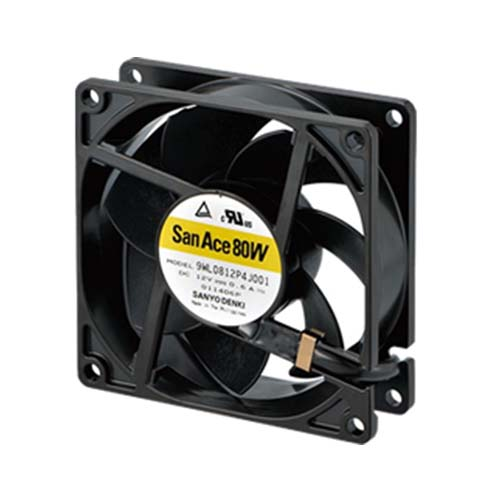

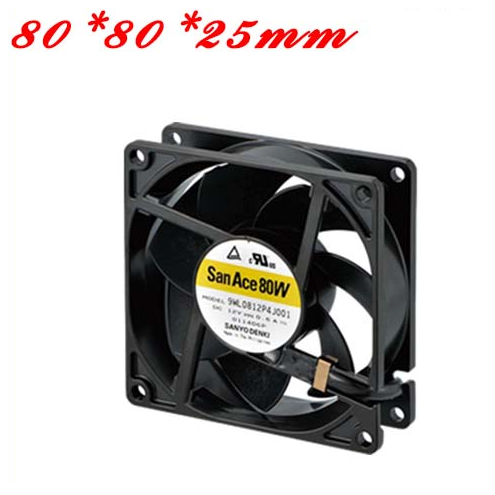

80×80×25 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：110g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	80×80×25 mm	9WPA0812P4G001	12	10.8 to 13.2	100	0.71	8.52	8250	2.32	81.9	210	0.84	54	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0812P4G001			20	0.07	0.84	2400	0.67	23.6	18.2	0.073	21
		9WPA0812P4S001			100	0.026	3.12	5300	1.49	52.6	86.7	0.35	40
		9WPA0812P4S001			20	0.04	0.48	1250	0.35	12.4	4.8	0.019	10
		9WPA0824P4G001	24	21.6 to 26.4	100	0.36	8.64	8250	2.32	81.9	210	0.84	54
		9WPA0824P4G001	24	21.6 to 26.4	20	0.05	1.2	2400	0.67	23.6	18.2	0.073	21
		9WPA0824H4001	24	20.4 to 27.6		0.07	1.68	3500	0.98	34.6	37.8	0.15	29	-20 to +70	40000/60˚C (70000/40˚C)
		9WL0812P4J001	12	10.8 to 13.2	100	0.6	7.2	7400	2.07	73.0	177	0.71	49	-20 to +70	180000/60˚C (215000/40˚C)
		9WL0812P4J001			20	0.06	0.72	1800	0.5	17.6	10.4	0.04	16
		9WL0812P4G001			100	0.3	3.6	5500	1.54	54.3	98	0.39	43
		9WL0812P4G001			25	0.05	0.6	1400	0.39	13.7	6.3	0.02	14
		9WL0812P4H001			100	0.12	1.44	3700	1.03	36.3	44	0.17	31
		9WL0812P4H001			30	0.04	0.48	1100	0.3	10.5	3.9	0.01	13
		9WL0824P4J001	24	21.6 to 26.4	100	0.28	6.72	7400	2.07	73.0	177	0.71	49
		9WL0824P4J001			20	0.05	1.2	2400	0.67	23.6	18.6	0.07	22
		9WL0824P4G001			100	0.14	3.36	5500	1.54	54.3	98	0.39	43
		9WL0824P4G001			20	0.026	0.48	1200	0.33	11.6	4.6	0.01	13
		9WL0824P4H001			100	0.05	1.2	3700	1.03	36.3	44	0.17	31
		9WL0824P4H001			30	0.026	0.48	1100	0.3	10.5	3.9	0.01	13
		9WL0812L4001	12	8 to 13.2		0.06	0.72	2300	0.64	22.6	17	0.068	22	-20 to +70	180000/60˚C (215000/40˚C)
		9WL0824F4001	24	12 to 26.4		0.045	1.08	3300	0.92	32.5	35	0.14	29
		9WL0824L4001	24	14 to 26.4		0.03	0.72	2300	0.64	22.6	17	0.068	22
