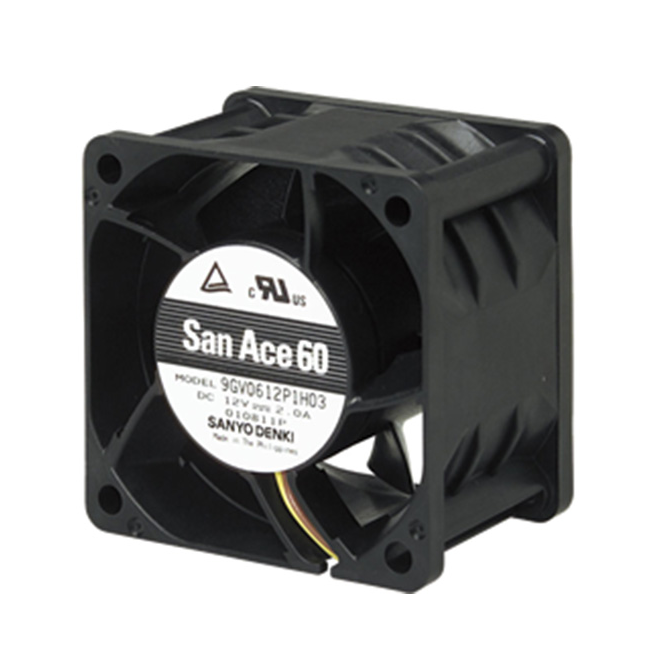

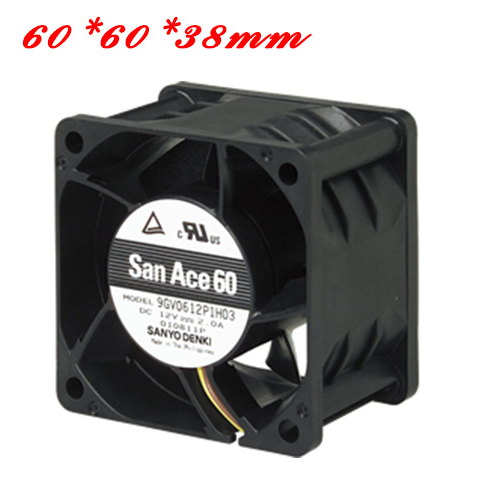

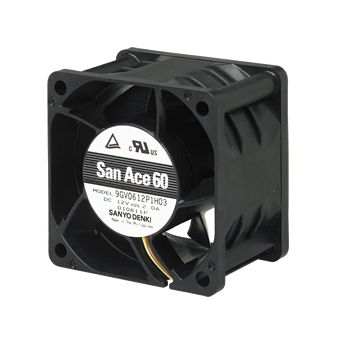

60×60×38 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：130g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	60×60×38 mm	9HVA0612P1J001	12	10.8 to 13.2	100	2.8	33.6	24800	2.39	84.3	2000	8.0	68	20 to +70	40000/60˚C (70000/40˚C)
		9HVA0612P1J001	12	10.8 to 13.2	20	0.11	1.32	5200	0.48	16.9	91	0.36	34	20 to +70	40000/60˚C (70000/40˚C)
		9HV0612P1J001	12	10.8 to 12.6	100	2.7	32.4	21700	1.88	66.4	1750	7.0	68	-20 to +70	40000/60˚C (70000/40˚C)
		9HV0612P1J001	12	10.8 to 12.6	20	0.17	2.04	5300	0.43	15.2	102	0.41	34	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0612P1J03	12	10.8 to 12.6	100	1.5	18.0	17500	1.75	62	820	3.3	63	-20 to +60	40000/60˚C (70000/40˚C)
		9GA0612P1J03		10.8 to 12.6	20	0.1	1.2	4000	0.4	14	43	0.17	24	-20 to +60
		9GA0612P1K03		10.8 to 13.2	100	0.95	11.4	14800	1.5	53	600	2.4	59	-20 to +70
		9GA0612P1K03			20	0.1	1.2	4000	0.4	14	43	0.17	24	-20 to +70
		9GA0612P1K60			100	0.95	11.4	14800	1.5	53	675	2.7	59	-20 to +60
		9GA0612P1K60			0	0.05	0.6	1480	0.134	4.7	8.3	0.03	16	-20 to +60
		9GA0612P1H03			100	0.55	6.6	11500	1.15	40	375	1.5	52	-20 to +70
		9GA0612P1H03			20	0.06	0.72	2600	0.27	9.5	20	0.08	19	-20 to +70
		9GA0624P1J03	24	21.6 to 25.2	100	0.75	18.0	17500	1.75	62	820	3.3	63	-20 to +60
		9GA0624P1J03		21.6 to 25.2	20	0.1	2.4	6200	0.63	22	104	0.42	35	-20 to +60
		9GA0624P1K03		21.6 to 26.4	100	0.5	12	14800	1.5	53.0	600	2.4	59	-20 to +70
		9GA0624P1K03		21.6 to 26.4	20	0.06	1.44	5000	0.5	17.7	70	0.28	28	-20 to +70
		9GA0648P1K03	48	43.2 to 52.8	100	0.24	11.52	14800	1.5	53	600	2.4	59	-10 to +70
		9GA0648P1K03	48	43.2 to 52.8	20	0.03	1.44	4000	0.4	14	43	0.17	24	-10 to +70
		9GV0612P1G03	12	8.0 to 13.8	100	2.8	33.6	16000	2.37	84	751	3.02	66	-20 to +70	40000/60˚C (70000/40˚C)
		9GV0612P1G03	12	8.0 to 13.8	0	0.12	1.5	3100	0.44	15	26	0.10	25
		9GV0624P1G03	24	20.4 to 27.6	100	1.4	33.6	16000	2.37	84	751	3.02	66
		9GV0624P1G03	24	20.4 to 27.6	0	0.12	2.88	6000	0.89	31	105	0.42	38
