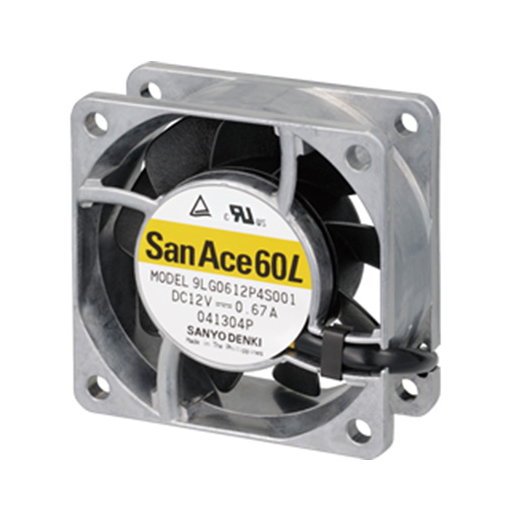

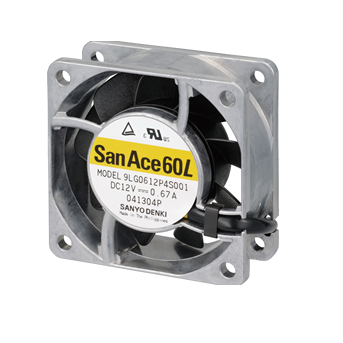

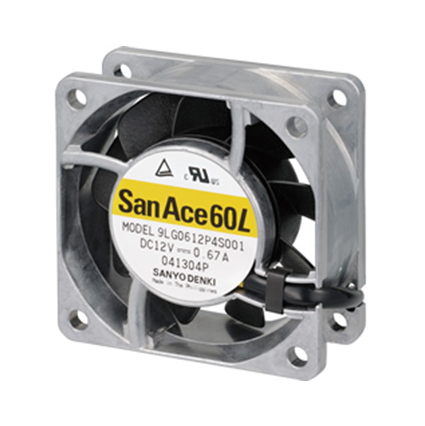

60×60×25 mm Long Life Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：100g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Long Life Fan	60×60×25 mm	9LG0612P4S001	12	10.8 to 13.2	100	0.67	8.04	11000	1.4	49.4	300	1.204	53	-20 to +70	180000/60˚C (215000/40˚C)
		9LG0612P4S001			20	0.06	0.72	2900	0.36	12.7	20.8	0.083	20
		9LG0612P4J001			100	0.39	4.68	8650	1.1	38.8	182	0.73	47
		9LG0612P4J001			25	0.04	0.48	2100	0.26	9.1	10.7	0.042	17
		9LG0612P4H001			100	0.17	2.04	6150	0.78	27.5	97	0.389	35
		9LG0612P4H001			25	0.03	0.36	1350	0.17	6.0	4.7	0.018	14
		9LG0612P4M001			100	0.09	1.08	4200	0.53	18.7	45	0.18	24
		9LG0612P4M001			25	0.03	0.36	900	0.11	3.8	2.0	0.008	14
		9LG0624P4S001	24	21.6 to 26.4	100	0.34	8.16	11000	1.4	49.4	300	1.204	53
		9LG0624P4S001			20	0.03	0.72	2900	0.36	12.7	20.8	0.083	20
		9LG0624P4J001			100	0.19	4.56	8650	1.1	38.8	182	0.73	47
		9LG0624P4J001			20	0.02	0.48	2200	0.28	9.8	12.0	0.048	17
		9LG0624P4H001			100	0.08	1.92	6150	0.78	27.5	87	0.389	35
		9LG0624P4H001			20	0.02	0.48	1300	0.16	5.6	4.3	0.017	14
		9LG0624P4M001			100	0.04	0.96	4200	0.53	18.7	45	0.18	24
		9LG0624P4M001			20	0.01	0.24	800	0.1	3.5	1.6	0.006	14
		9LG0648P4S001	48	36 to 72	100	0.18	8.64	11000	1.4	49.4	305	1.224	53
		9LG0648P4S001			20	0.02	0.96	2900	0.36	12.7	20.8	0.083	20
		9LG0648P4J001			100	0.1	4.8	8650	1.1	38.8	182	0.73	47
		9LG0648P4J001			20	0.02	0.96	2100	0.26	9.1	10.7	0.042	17
		9LG0648P4H001			100	0.06	2.88	6150	0.78	27.5	97	0.389	35
		9LG0648P4H001			20	0.02	0.96	1000	0.12	4.2	2.5	0.01	14
		9LG0648P4M001			100	0.04	1.92	4200	0.53	18.7	45	0.18	24
		9LG0648P4M001			20	0.02	0.96	650	0.08	2.8	1.0	0.004	14
