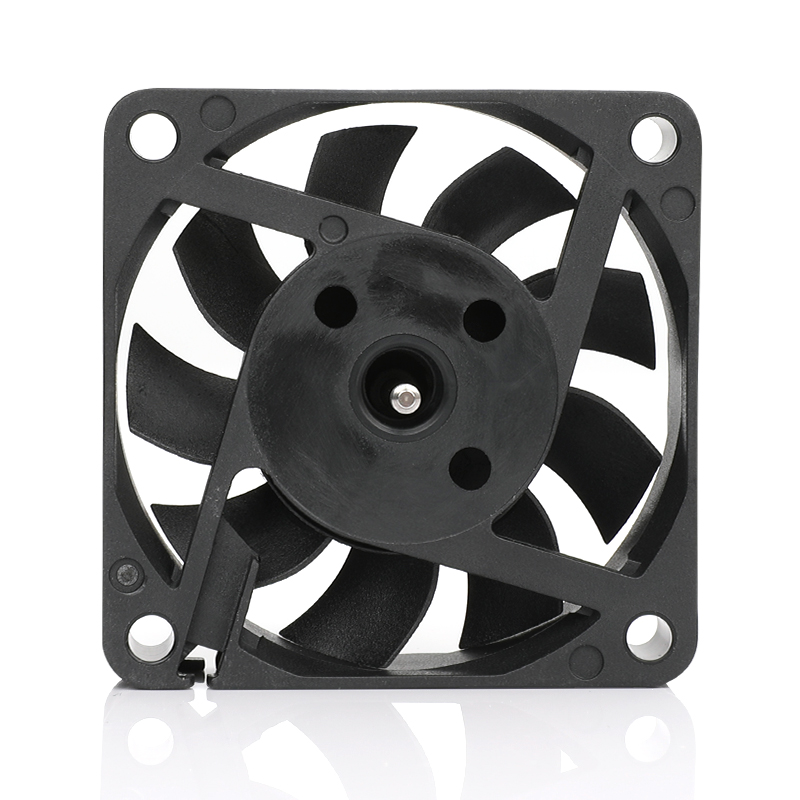

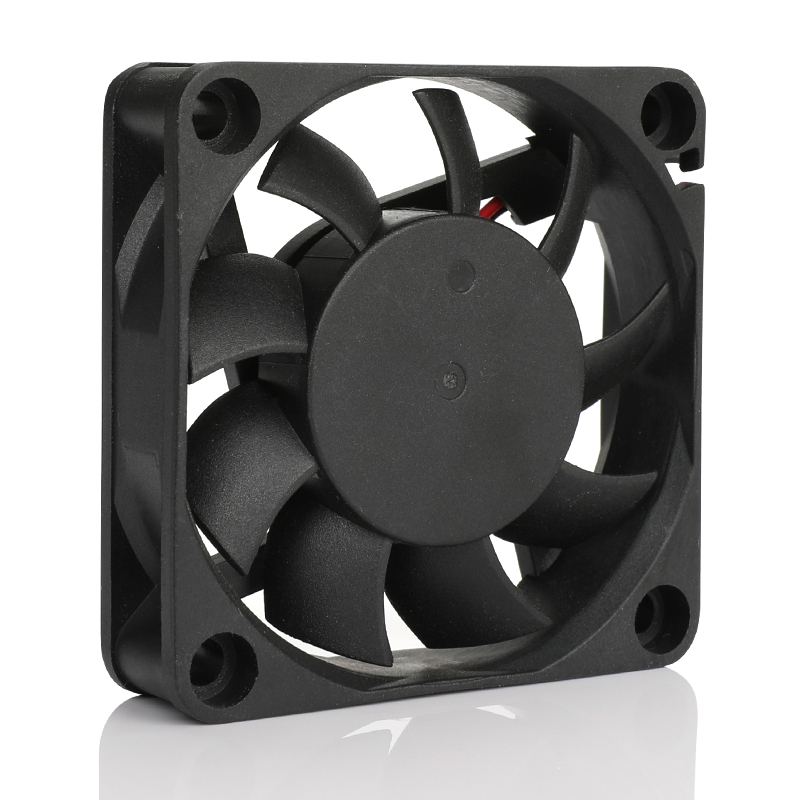

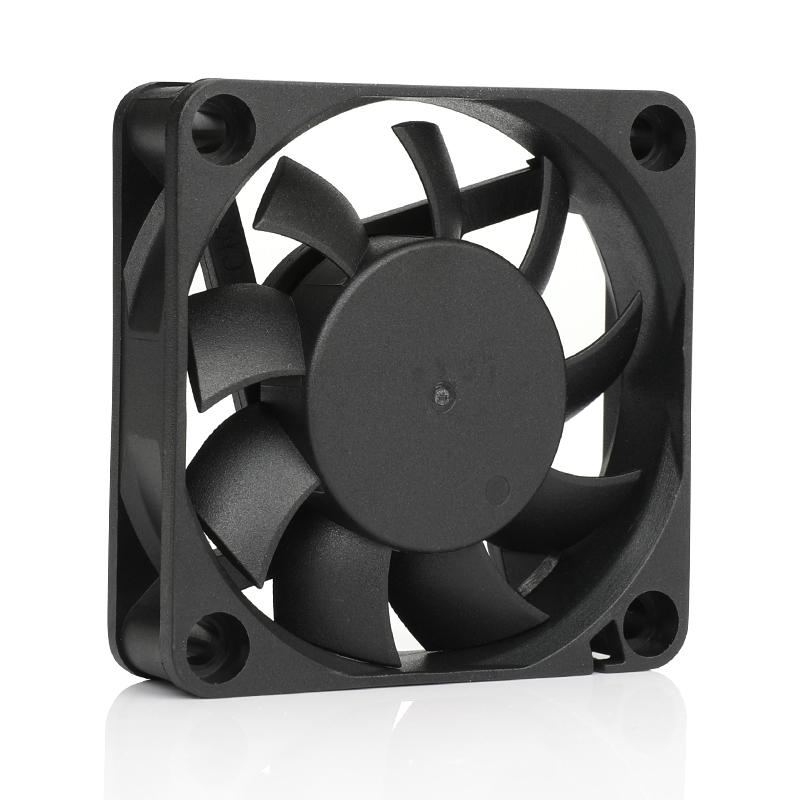

60×60×15mm DC Fan

Size: 60*60*15（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 60×60×15mm DC Fan CPT6015/05L 5 4~6 0.13 0.65 3000 11.73 0.33 1.75 17.15 24.91
CPT6015/05M 0.20 1.00 4500 16.89 0.48 3.57 34.99 33.71
CPT6015/05H 0.35 1.75 5500 20.57 0.58 5.04 49.39 38.07
CPT6015/05E 0.60 3.00 6500 24.66 0.70 7.39 72.42 41.70
CPT6015/12L 12 7~14 0.06 0.72 3000 11.73 0.33 1.75 17.15 24.91
CPT6015/12M 0.12 1.44 4500 16.89 0.48 3.57 34.99 33.71
CPT6015/12H 0.24 2.88 5500 20.57 0.58 5.04 49.39 38.07
CPT6015/12E 0.42 5.04 6500 24.66 0.70 7.39 72.42 41.70
CPT6015/12U 0.50 6.00 7000 26.34 0.75 8.37 82.03 43.31
CPT6015/24L 24 15~27 0.04 0.96 3000 11.73 0.33 1.75 17.15 24.91
CPT6015/24M 0.08 1.92 4500 16.89 0.48 3.57 34.99 33.71
CPT6015/24H 0.12 2.88 5500 20.57 0.58 5.04 49.39 38.07
CPT6015/24E 0.20 4.80 6500 24.66 0.70 7.39 72.42 41.70
CPT6015/24U 0.25 6.00 7000 26.34 0.75 8.37 82.03 43.31
CPT6015/05L 5 4~6 0.13 0.65 3000 14.24 0.40 1.29 12.64 20.94
CPT6015/05M 0.20 1.00 4000 18.80 0.53 2.18 21.36 27.19
CPT6015/05H 0.35 1.75 5000 23.91 0.68 3.38 33.12 32.03
CPT6015/05E 0.60 3.00 6000 29.25 0.83 4.95 48.51 35.99
CPT6015/12L 12 7~14 0.06 0.72 3000 14.24 0.40 1.29 12.64 20.94
CPT6015/12M 0.12 1.44 4000 18.80 0.53 2.18 21.36 27.19
CPT6015/12H 0.24 2.88 5000 23.91 0.68 3.38 33.12 32.03
CPT6015/12E 0.42 5.04 6000 29.25 0.83 4.95 48.51 35.99
CPT6015/12U 0.50 6.00 7000 33.65 0.95 6.30 61.74 39.34
CPT6015/24L 24 15~27 0.04 0.96 3000 14.24 0.40 1.29 12.64 20.94
CPT6015/24M 0.08 1.92 4000 18.80 0.53 2.18 21.36 27.19
CPT6015/24H 0.12 2.88 5000 23.91 0.68 3.38 33.12 32.03
CPT6015/24E 0.20 4.80 6000 29.25 0.83 4.95 48.51 35.99
CPT6015/24U 0.25 6.00 7000 33.65 0.95 6.30 61.74 39.34


Hot Tags: 60×60×15mm DC Fan, 60×60×15 Fan, 6015 DC Fan, 5V DC Double Ball Bearing, 12V Sleeve Bearing, 24V DC Fan 60×60×15mm, 15mm DC Fan, 15mm Hydraulic Bearing Fan, DC Fan 60×60×15, 6015 DC Double Ball Bearing, China, Customized, wholesale, Bulk, buy discount, low price, cheap, manufacturing company, manufacturers, factory, suppliers, for sale, Free Sample, in stock
