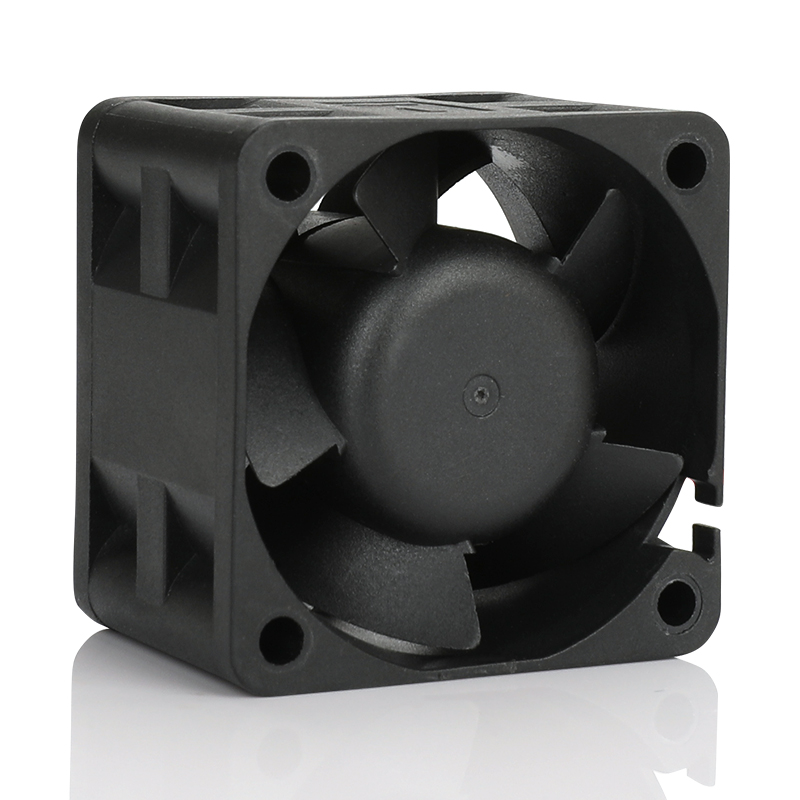

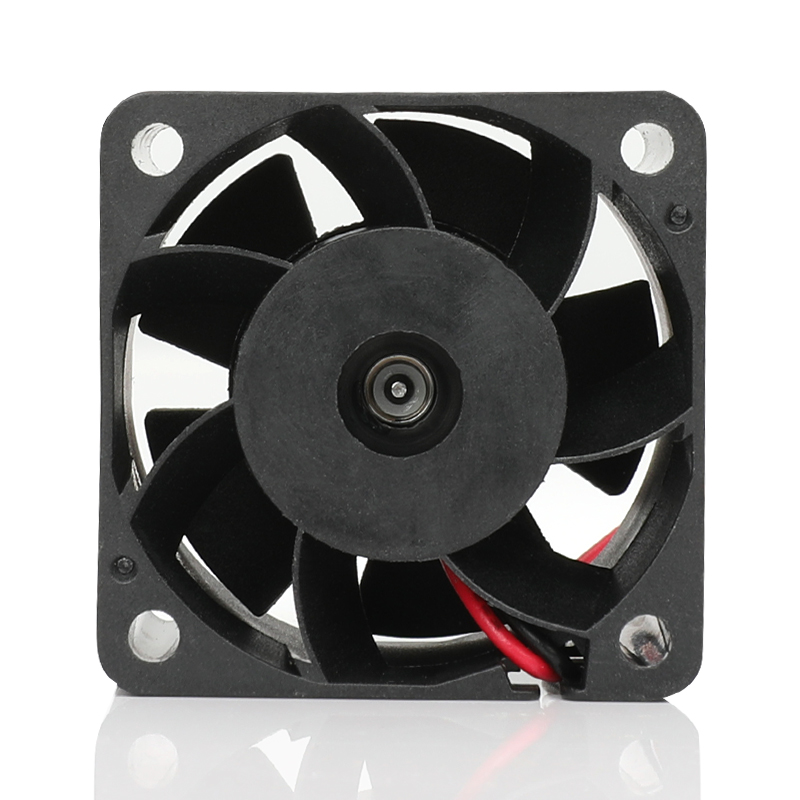

40×40×28mm DC Fan

Size: 40*40*28（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 40×40×28mm DC Fan CPT4028/12L 12 7~14 0.30 3.60 10000 16.89 0.48 13.53 132.68 39.85
CPT4028/12M 0.38 4.56 11000 18.72 0.53 15.56 152.59 41.92
CPT4028/12H 0.45 5.40 12000 20.47 0.58 18.98 186.13 43.80
CPT4028/24E 0.60 7.20 13000 22.09 0.63 21.37 209.57 45.54
CPT4028/12U 0.80 9.60 14000 23.55 0.67 24.60 241.24 47.15
CPT4028/24L 24 15~27 0.12 2.88 10000 16.89 0.48 13.53 132.68 39.85
CPT4028/24M 0.18 4.32 11000 18.72 0.53 15.56 152.59 41.92
CPT4028/24H 0.22 5.28 12000 20.47 0.58 18.98 186.13 43.80
CPT4028/24E 0.30 7.20 13000 22.09 0.63 21.37 209.57 45.54
CPT4028/24U 0.40 9.60 14000 23.55 0.67 24.60 241.24 47.15
CPT4028/12L 12 7~14 0.18 2.16 8000 8.92 0.25 9.33 91.43 38.39
CPT4028/12M 0.38 4.56 13000 15.06 0.43 25.05 245.49 48.93
CPT4028/12H 0.70 8.40 18000 21.10 0.60 45.36 444.53 56.00
CPT4028/24E 1.00 12.00 22000 26.13 0.74 68.62 672.48 60.36
CPT4028/12U 1.30 15.60 25000 30.02 0.85 89.20 874.16 63.13
CPT4028/24L 24 15~27 0.10 2.40 8000 8.92 0.25 9.33 91.43 38.39
CPT4028/24M 0.18 4.32 13000 15.06 0.43 25.05 245.49 48.93
CPT4028/24H 0.30 7.20 18000 21.10 0.60 45.36 444.53 56.00
CPT4028/24E 0.46 11.04 22000 26.13 0.74 68.62 672.48 60.36
CPT4028/24U 0.65 15.60 25000 30.02 0.85 89.20 874.16 63.13
CPT4028/12L 12 7~14 0.25 3.00 10000 13.80 0.39 12.10 118.58 40.43
CPT4028/12M 0.35 4.20 12000 16.91 0.48 17.10 167.58 44.39
CPT4028/12H 0.50 6.00 14000 19.68 0.56 22.72 222.66 47.74
CPT4028/12E 0.65 7.80 16000 22.80 0.65 29.34 287.53 50.64
CPT4028/12U 0.90 10.80 18000 25.41 0.72 36.38 356.52 53.19
CPT4028/24L 24 15~27 0.13 3.12 10000 13.80 0.39 12.10 118.58 40.43
CPT4028/24M 0.16 3.84 12000 16.91 0.48 17.10 167.58 44.39
CPT4028/24H 0.25 6.00 14000 19.68 0.56 22.72 222.66 47.74
CPT4028/24E 0.35 8.40 16000 22.80 0.65 29.34 287.53 50.64
CPT4028/24U 0.45 10.80 18000 25.41 0.72 36.38 356.52 53.19
