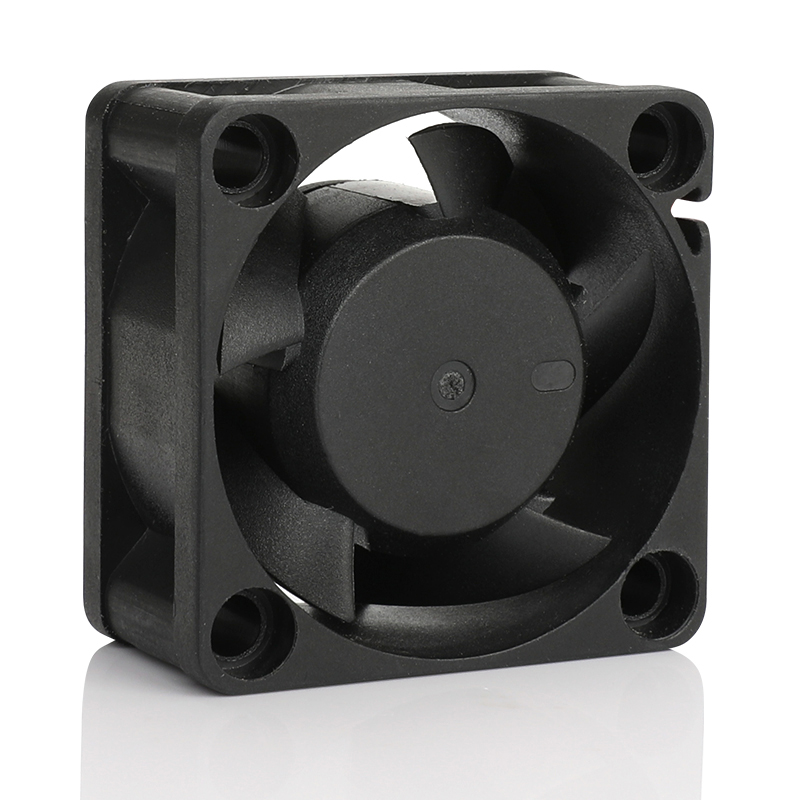

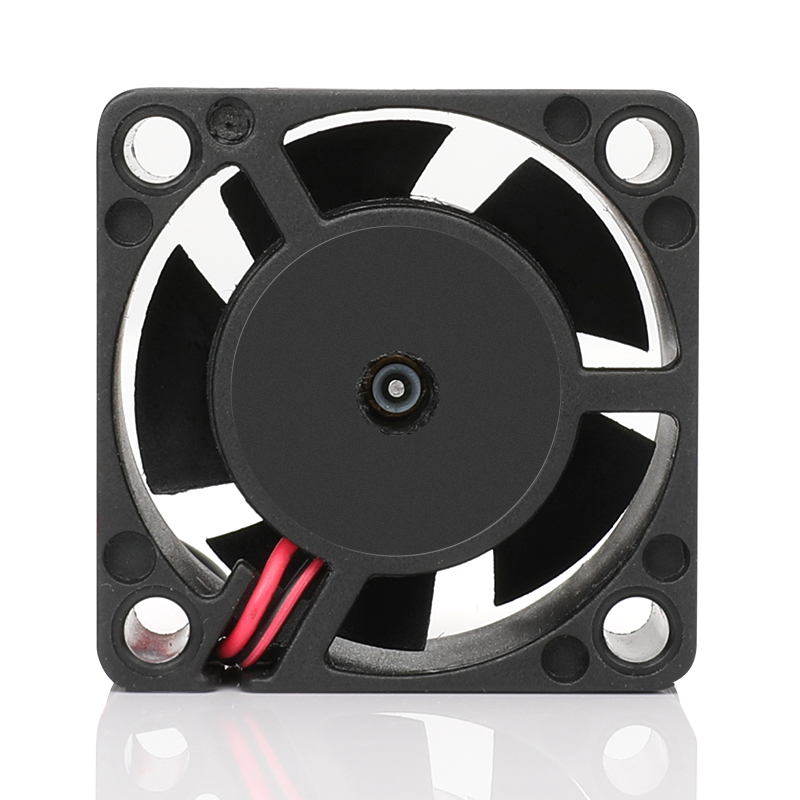

40×40×20mm DC Fan

Size: 40*40*20（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated	Operating	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Voltage	Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
DC Fan CAPITAL	40×40×20mm DC Fan	CPT4020/05L	5	4~6	0.08	0.40	5000	6.11	0.17	2.66	26.09	25.00
		CPT4020/05M			0.18	0.90	7000	8.46	0.24	5.23	51.29	32.00
		CPT4020/05H			0.22	1.10	8000	9.81	0.28	6.69	65.61	35.00
		CPT4020/05E			0.32	1.60	11000	14.11	0.40	12.98	127.29	41.87
		CPT4020/05U			0.50	2.50	13000	15.30	0.43	17.20	168.67	45.50
		CPT4020/12L	12	7~14	0.04	0.48	5000	6.11	0.17	2.66	26.09	25.00
		CPT4020/12M			0.08	0.96	7000	8.46	0.24	5.23	51.29	32.00
		CPT4020/12H			0.10	1.20	8000	9.81	0.28	6.69	65.61	35.00
		CPT4020/12E			0.18	2.16	11000	14.11	0.40	12.98	127.29	41.87
		CPT4020/12U			0.25	3.00	13000	15.30	0.43	17.20	168.67	45.50
		CPT4020/24L	24	15~27	0.03	0.72	5000	6.11	0.17	2.66	26.09	25.00
		CPT4020/24M			0.04	0.96	7000	8.46	0.24	5.23	51.29	32.00
		CPT4020/24H			0.05	1.20	8000	9.81	0.28	6.69	65.61	35.00
		CPT4020/24E			0.08	1.92	11000	14.11	0.40	12.98	127.29	41.87
					0.13	3.12	13000	15.30	0.43	17.20	168.67	45.50
		CPT4020/05L	5	4~6	0.15	0.75	10000	11.04	0.31	11.07	108.56	35.69
		CPT4020/05M			0.25	1.25	12000	12.76	0.36	14.99	147.00	39.65
		CPT4020/05H			0.32	1.60	14000	15.12	0.43	19.90	195.15	43.00
		CPT4020/05E			0.38	1.90	16000	17.32	0.49	25.00	245.17	45.90
		CPT4020/05U			0.50	2.50	18000	19.71	0.56	29.71	291.36	48.46
		CPT4020/12L	12	7~14	0.07	0.84	10000	11.04	0.31	11.07	108.56	35.69
		CPT4020/12M			0.12	1.44	12000	12.76	0.36	14.99	147.00	39.65
		CPT4020/12H			0.15	1.80	14000	15.12	0.43	19.90	195.15	43.00
		CPT4020/12E			0.18	2.16	16000	17.32	0.49	25.00	245.17	45.90
		CPT4020/12U			0.25	3.00	18000	19.71	0.56	29.71	291.36	48.46
		CPT4020/24L	24	15~27	0.03	0.72	10000	11.04	0.31	11.07	108.56	35.69
		CPT4020/24M			0.06	1.44	12000	12.76	0.36	14.99	147.00	39.65
		CPT4020/24H			0.08	1.92	14000	15.12	0.43	19.90	195.15	43.00
		CPT4020/24E			0.12	2.88	16000	17.32	0.49	25.00	245.17	45.90
		CPT4020/24U			0.13	3.12	18000	19.71	0.56	29.71	291.36	48.46
		CPT4020/05L	5	4~6	0.08	0.40	5000	4.93	0.14	2.57	25.20	22.85
		CPT4020/05M			0.18	0.90	6500	6.39	0.18	4.18	40.99	28.54
		CPT4020/05H			0.22	1.10	8000	7.93	0.22	6.24	61.19	36.78
		CPT4020/05E			0.32	1.60	12000	11.27	0.32	13.64	133.76	41.86
		CPT4020/05U			0.50	2.50	13000	13.64	0.41	15.07	147.79	43.60
		CPT4020/12L	12	7~14	0.04	0.48	5000	4.93	0.14	2.57	25.20	22.85
		CPT4020/12M			0.08	0.96	6500	6.39	0.18	4.18	40.99	28.54
		CPT4020/12H			0.10	1.20	8000	7.93	0.22	6.24	61.19	36.78
		CPT4020/12E			0.18	2.16	12000	11.27	0.32	13.64	133.76	41.86
		CPT4020/12U			0.25	3.00	13000	13.64	0.41	15.07	147.79	43.60
		CPT4020/24L	24	15~27	0.03	0.72	5000	4.93	0.14	2.57	25.20	22.85
		CPT4020/24M			0.04	0.96	6500	6.39	0.18	4.18	40.99	28.54
		CPT4020/24H			0.05	1.20	8000	7.93	0.22	6.24	61.19	36.78
		CPT4020/24E			0.08	1.92	12000	11.27	0.32	13.64	133.76	41.86
		CPT4020/24U			0.13	3.12	13000	13.64	0.41	15.07	147.79	43.60
