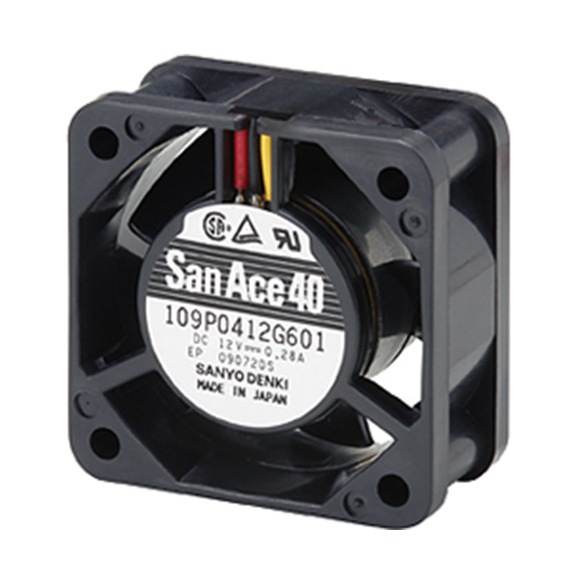

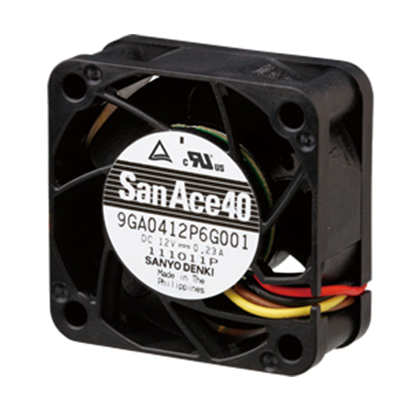

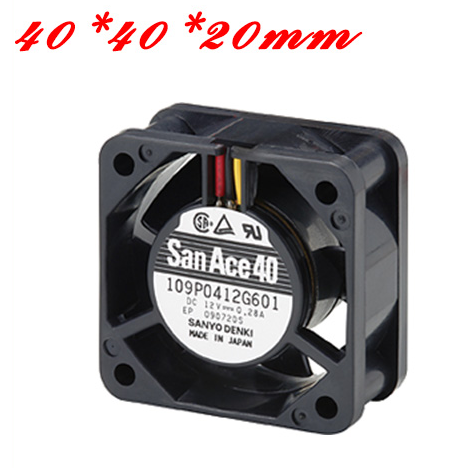

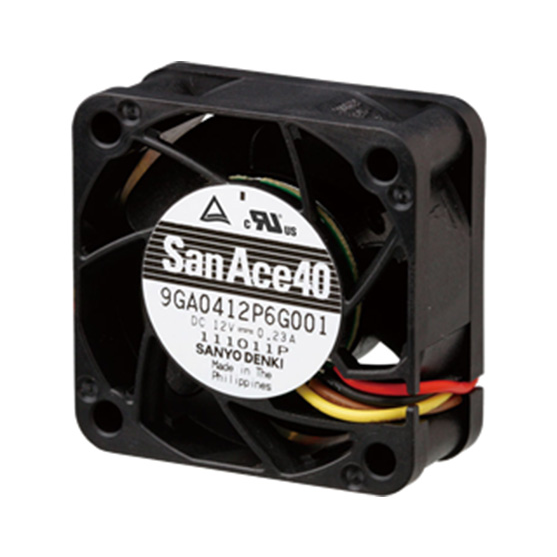

40×40×20 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：35 g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	40×40×20 mm	9GA0405P6H001	5	4.5 to 5.5	100	0.35	1.75	12400	0.33	11.7	191	0.77	40	-20 to +70	60000/60˚C (90000/40˚C)
		9GA0405P6F001	5	4.5 to 5.5	100	0.18	0.9	8000	0.21	7.4	79.5	0.32	28		60000/60˚C (90000/40˚C)
		9GA0412P6G001	12	10.2 to 13.8	100	0.23	2.76	16000	0.42	14.8	318	1.28	47		40000/60˚C (70000/40˚C)
		9GA0412P6G001			0	0.04	0.48	3800	0.1	3.5	17.9	0.07	14		40000/60˚C (70000/40˚C)
		9GA0412P6H001			100	0.14	1.68	12400	0.33	11.7	191	0.77	40		60000/60˚C (90000/40˚C)
		9GA0412P6H001			0	0.04	0.48	3800	0.1	3.5	17.9	0.07	14
		9GA0412P6F001			100	0.08	0.96	8000	0.21	7.4	79.5	0.32	28
		9GA0412P6F001			0	0.03	0.36	2200	0.06	2.1	6.0	0.02	10
		9GA0424P6G001	24	20.4 to 27.6	100	0.13	3.12	16000	0.42	14.8	318	1.28	47		40000/60˚C (70000/40˚C)
		9GA0424P6H001			100	0.08	1.92	12400	0.33	11.7	191	0.77	40		60000/60˚C (90000/40˚C)
		9GA0424P6F001			100	0.04	0.96	8000	0.21	7.4	79.5	0.32	28		60000/60˚C (90000/40˚C)
		109P0405F601	5	4.5 to 5.5		0.25	1.25	6500	0.183	6.5	45.1	0.181	28	-20 to +70	60000/60˚C (90000/40˚C)
		109P0405M601	5	4.5 to 5.5		0.12	0.6	5000	0.136	4.8	26.5	0.106	24
		109P0412F601	12	7 to 13.8		0.09	1.08	6500	0.183	6.5	45.1	0.181	28
		109P0412M601	12	8 to 13.8		0.06	0.72	5000	0.136	4.8	26.5	0.106	24
		109P0424F601	24	14 to 27.6		0.06	1.44	6500	0.183	6.5	45.1	0.181	28
		109P0424B601	24	20.4 to 27.6		0.06	1.44	5200	0.14	4.9	28.3	0.114	25
