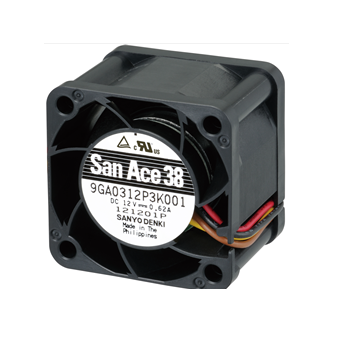

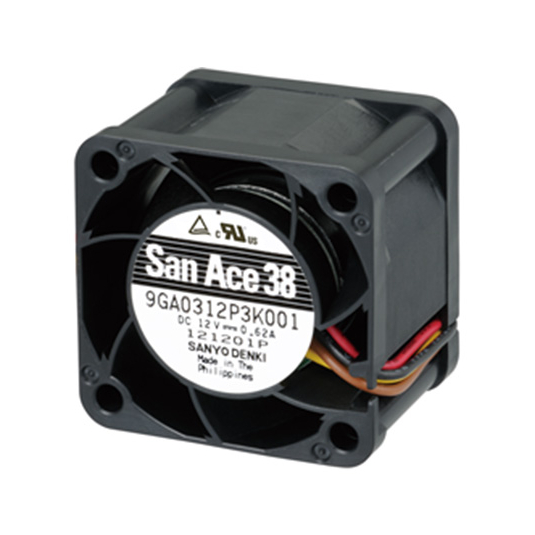

38×38×28 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown
· Mass：53 g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control. For models without ribs, append "1" to the end of model numbers.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	38×38×28 mm	9HVA0312P3K001	12	10.8 to 13.2	100	2.1	25.2	38500	0.91	32.2	2100	8.40	69	-20 to +70	30000/60˚C (53000/40˚C)
		9HVA0312P3K001			20	0.06	0.72	6000	0.14	4.9	51.0	0.204	29		30000/60˚C (53000/40˚C)
		9HVA0312P3G001			100	1.1	13.2	30000	0.71	25.1	1300	5.20	64		40000/60˚C (70000/40˚C)
		9HVA0312P3G001			20	0.05	0.60	5000	0.11	3.8	36.1	0.144	25		40000/60˚C (70000/40˚C)
		9GA0312P3K001	12	10.8 to 13.2	100	0.62	7.4	25000	0.6	21.2	800	3.21	59.0	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0312P3K001			0	0.06	0.7	3000	0.07	2.5	11	0.04	15.0
		9GA0312P3J001			100	0.52	6.2	23500	0.57	20.1	720	2.89	57.5
		9GA0312P3J001			0	0.06	0.7	3000	0.07	2.5	11	0.04	15.0
		9GA0312P3G001			100	0.33	4.0	19000	0.45	15.9	460	1.85	53.0
		9GA0312P3G001			0	0.06	0.7	3000	0.07	2.5	11	0.04	15.0
		9GA0312E3001	12	10.8 to 13.2		0.18	2.16	14000	0.34	12.0	250	1.0	47	-20 to +70	60000/60˚C (90000/40˚C)
		9GA0312H3001	12	10.8 to 13.2		0.09	1.08	9200	0.22	7.77	108	0.43	37	-20 to +70	60000/60˚C (90000/40˚C)
