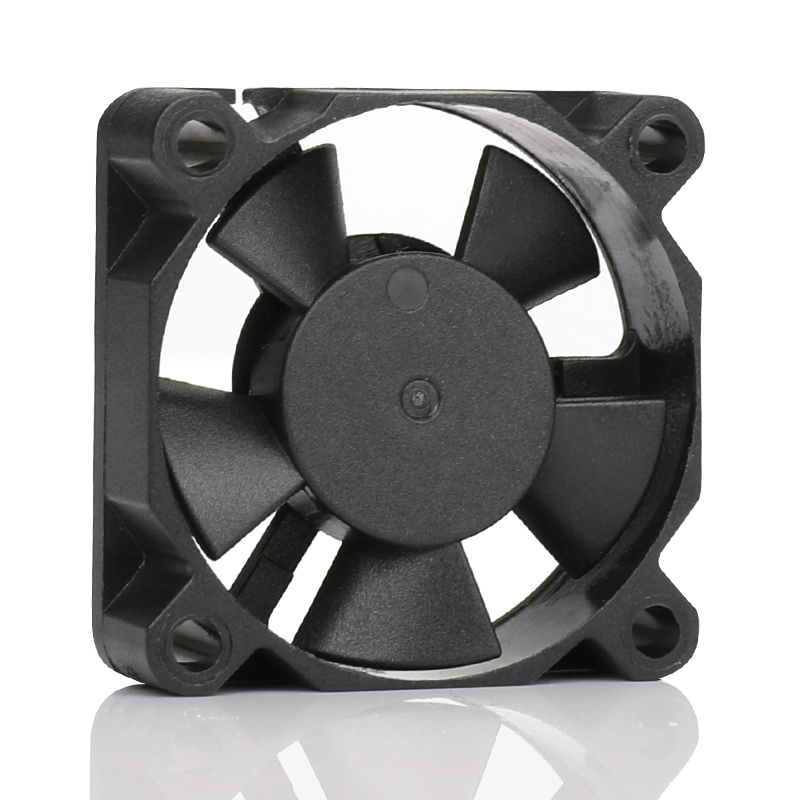

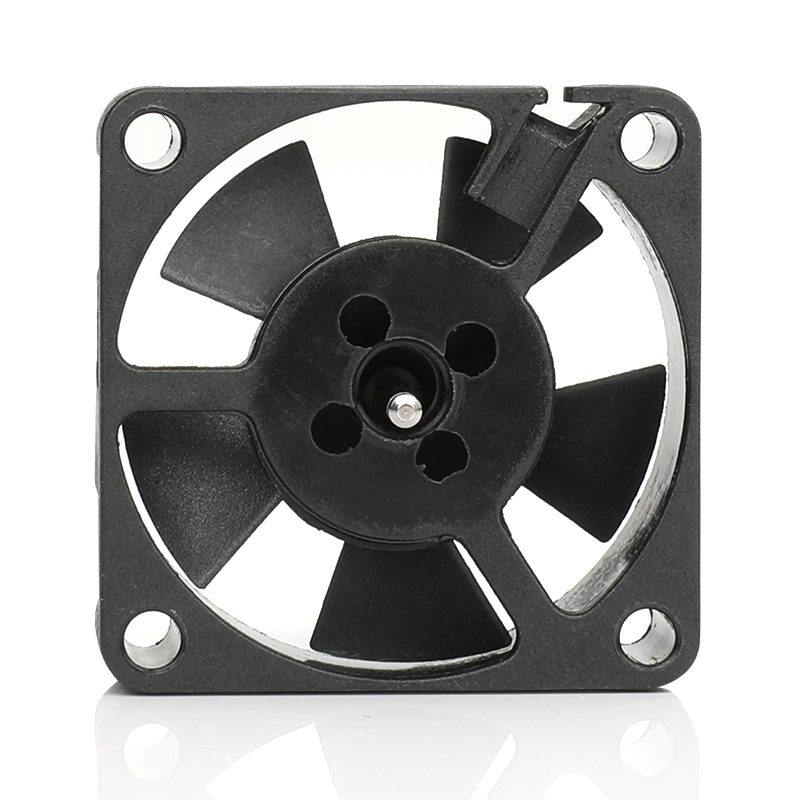

35×35×x10mm DC Fan

Size: 35*35*10(mm)
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve, Hydraulic Bearing
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 35×35×10mm DC Fan CPT3510/05L 5 4~6 0.06 0.30 6000 2.80 0.08 1.77 17.36 21.20
CPT3510/05M 0.11 0.55 8000 3.00 0.08 2.76 27.07 26.80
CPT3510/05H 0.22 1.10 10000 3.80 0.11 4.54 44.52 34.70
CPT3510/12L 12 8~13.2 0.05 0.60 6000 2.80 0.08 1.77 17.36 21.20
CPT3510/12M 0.06 0.72 8000 3.00 0.08 2.76 27.07 26.80
CPT3510/12H 0.10 1.20 10000 3.80 0.11 4.54 44.52 34.70
CPT3510/24M 24 15~27 0.06 1.44 8000 3.00 0.08 2.76 27.07 26.80
CPT3510/24H 0.08 1.92 10000 3.80 0.11 4.54 44.52 34.70
