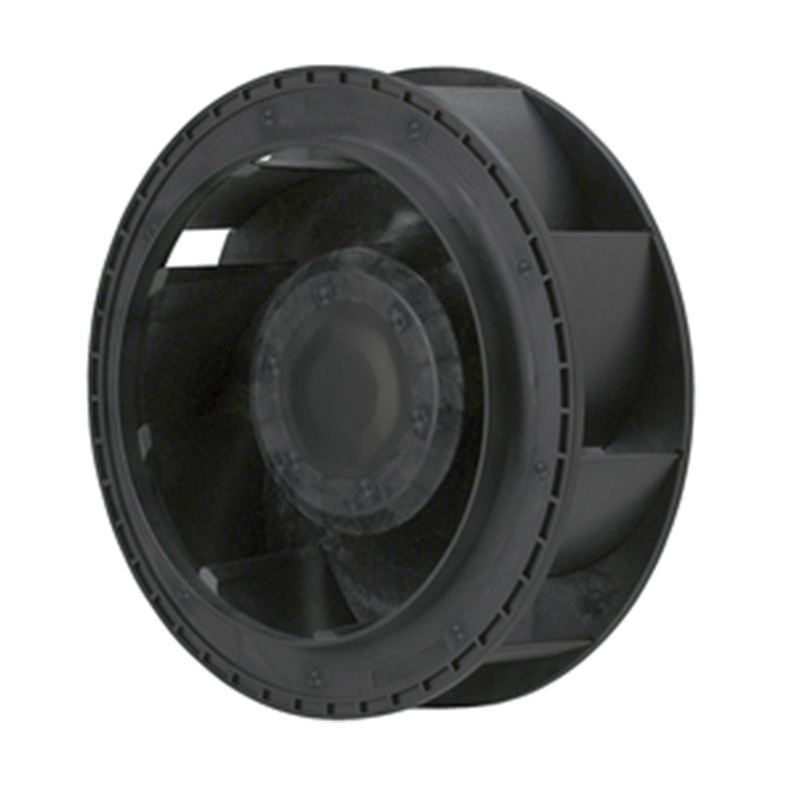

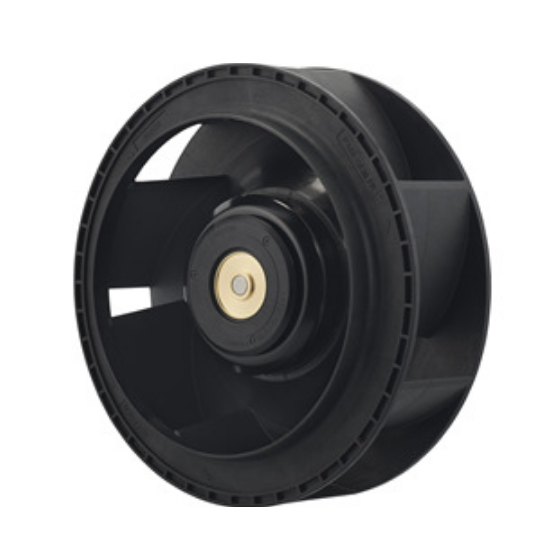

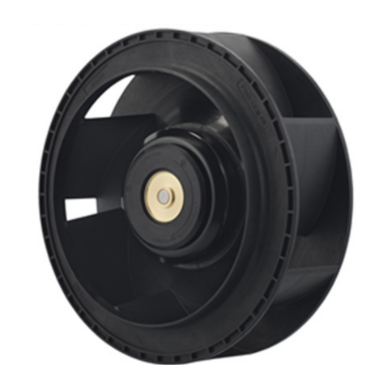

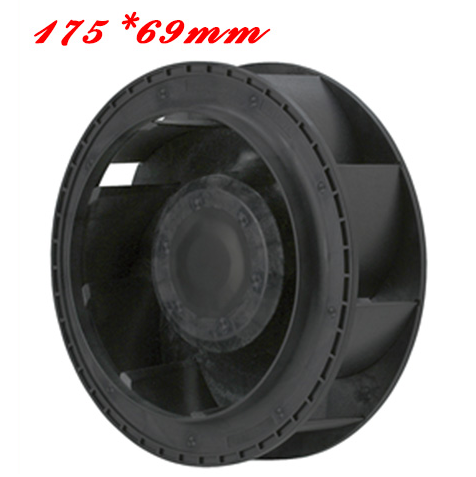

175×69 mm Splash Proof Centrifugal Fan

General Specifications
· Material
Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：980g

· Ingress protection：IP68 For more information on IP rating, refer to p. 625.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Centrifugal Fan	ø175×69 mm	9W2TGA48P0G001	48	36 to 72	100	3.85	184.8	5700	17.3	611	1100	4.42	80	-30 to +60	40000/60˚C (70000/40˚C)
		9W2TGA48P0G001	48	36 to 72	15	0.08	3.84	800	2.4	84.7	21.7	0.087	38	-30 to +60	40000/60˚C (70000/40˚C)
		9W1TG48P0S61	48	36 to 60	100	1.3	62.4	3900	11.3	389	587	2.3	69	-20 to +70	40000/60˚C (70000/40˚C)
		9W1TG48P0S61			20	0.09	4.32	800	2.3	81	24	0.096	35
		9W1TG48P0H61			100	0.65	31.2	3100	9.0	318	360	1.44	64
