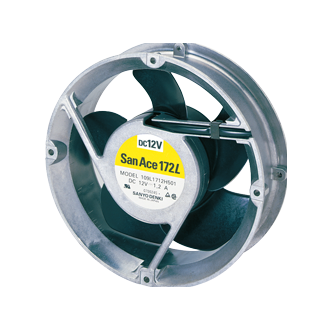

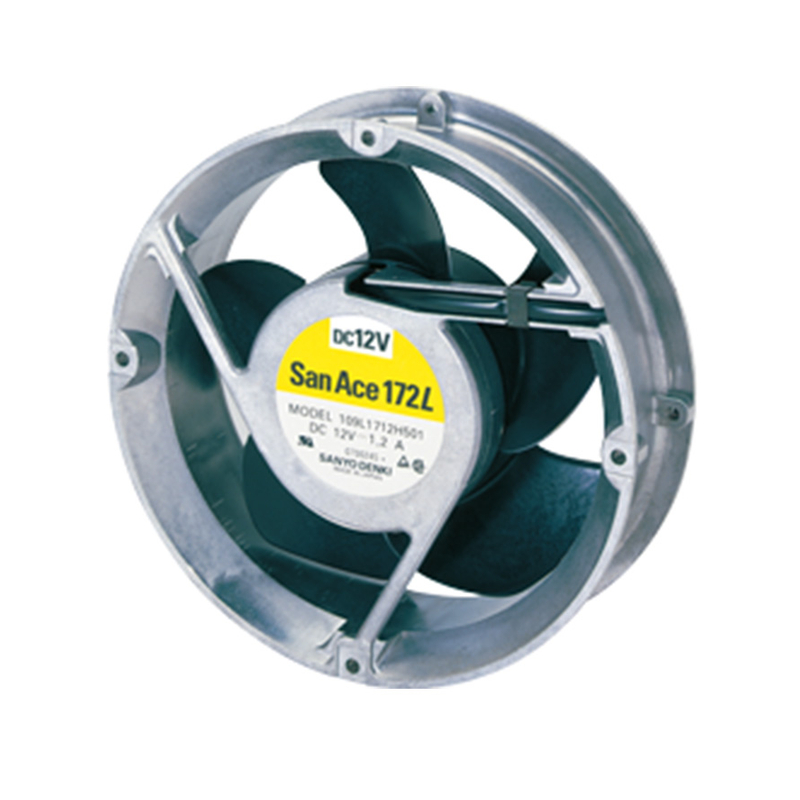

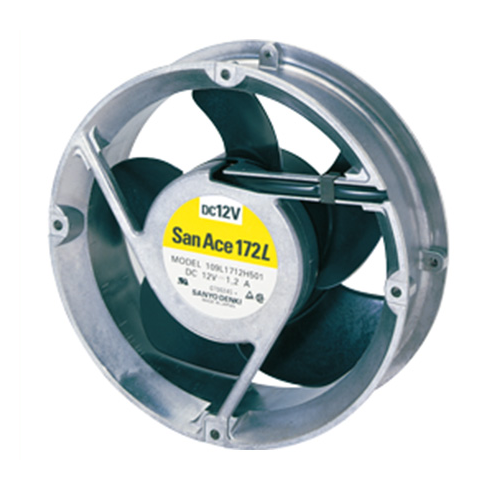

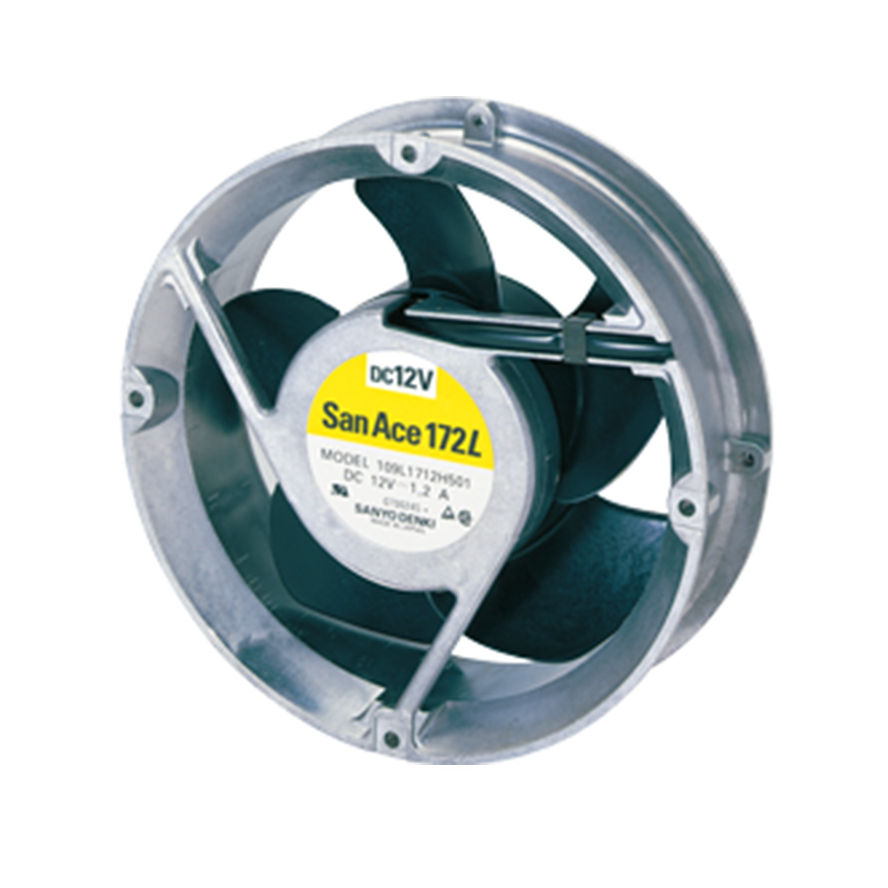

172×51 mm Long Life Fan

General Specifications
· Material
Frame: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：860g

· Ingress protection：IP68 For more information on IP rating, refer to p. 625.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Long Life Fan	ø172×51 mm	109L1712H501	12	10.2 to 13.8		1.2	14.4	3050	6.4	226	137.2	0.551	47	-20 to +70	100000/60˚C (135000/40˚C)
		109L1712M501	12	10.2 to 13.8		0.48	5.76	2000	4.2	148	67.6	0.271	36
		109L1724H501	24	20.4 to 27.6		0.58	13.92	3050	6.4	226	137.2	0.551	47
		109L1724M501	24	20.4 to 27.6		0.2	4.8	2000	4.2	148	67.6	0.271	36
		109L1748H501	48	40.8 to 55.2		0.28	13.44	3050	6.4	226	137.2	0.551	47
		109L1748M501	48	40.8 to 55.2		0.11	5.28	2000	4.2	148	67.6	0.271	36
