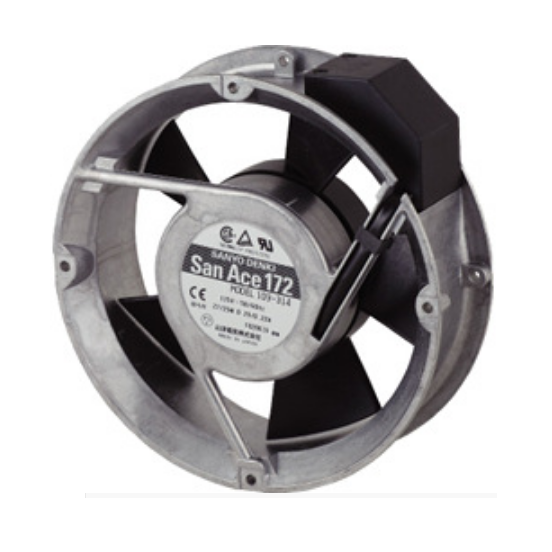

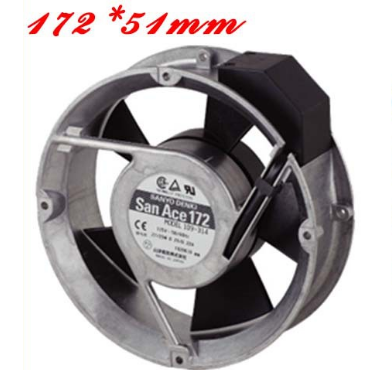

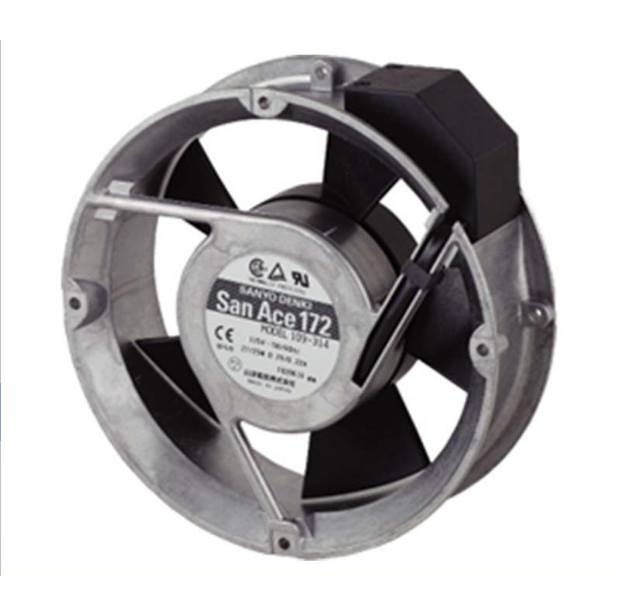

172×51 mm AC Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Capacitor motor
· Motor protection function: Locked rotor burnout protection, Reverse polarity protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between input terminal and frame)
· Dielectric strength (with sensor): 50/60 Hz 1500 VAC 1 minute (between AC input terminal and frame); 50/60 Hz 1000 VAC 1 minute (between lead wire conductors and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Operating voltage range: Voltage of each model ±10%
· Storage temperature: -30 to +70˚C (Non-condensing)
· Sensor-Purpose lead wire: Brown Black; Sensor: Yellow
· Mass: 1000 g
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Frequency Input Current Locked rotor current Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [Hz] [W] [A] [A] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
AC Fan ø172×51 mm 109-311 100 50/60 27/25 0.33/0.25 0.65/0.64 2900/3500 5.3/6.4 187.3/226.1 147/196 0.59/0.787 47/51 -30 to +60 25000/60˚C
(56000/40˚C)
109-314 115 0.29/0.22 0.55/0.54
109-312 200 0.16/0.13 0.33/0.32
109-313 230 0.14/0.11 0.28/0.27
109-371 100 50/60 27/25 0.33/0.25 0.65/0.64 2900/3500 5.3/6.4 187.3/226.1 147/196 0.59/0.787 47/51 -10 to +60 25000/60˚C
(56000/40˚C)
109-374 115 0.29/0.22 0.55/0.54
109-372 200 0.16/0.13 0.33/0.32
109-373 230 0.14/0.11 0.28/0.27
