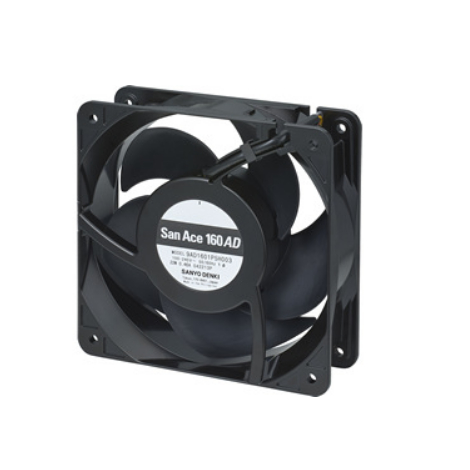

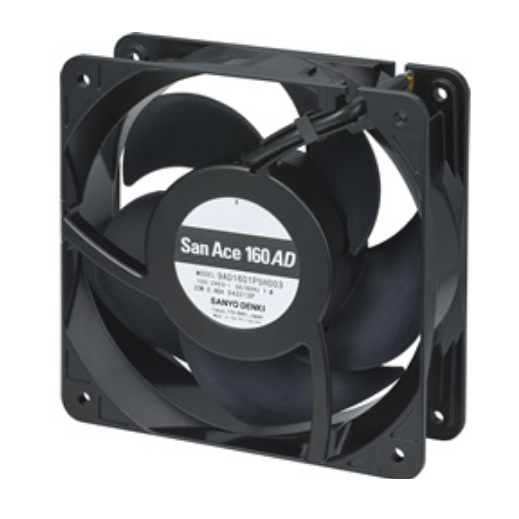

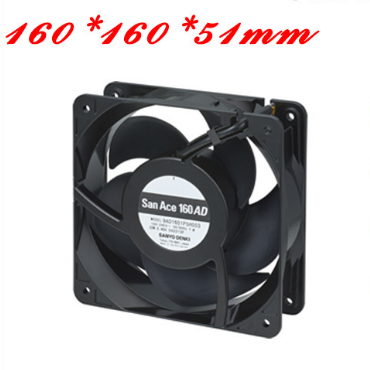

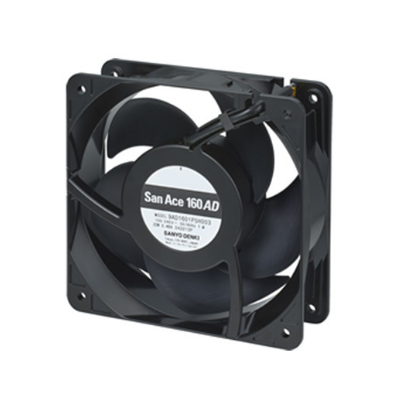

160×160×51 mm ACDC Fan

General Specifications
· Material
Frame: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (Lead wire model: between lead wire conductors and frame, terminal model: between terminals and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC (Lead wire model: between lead wire conductors and frame, terminal model: between terminals and frame)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +70˚C (Non-condensing)
· Lead wire: AC power input L: Orange N: Gray；Sensor: Yellow；Control: Brown；GND: Black
· Mass: 880 g
To display CE mark/UKCA mark on system, refer to p. 621.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	Frequency	PWM duty cycle	Rated current*	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[Hz]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
ACDC Fan	160×160×51 mm	9AD1601H5002(1)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9AD1601H5T02(2)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9AD1601H5H001(1)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9AD1601H5HT01(2)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9AD1601P5H003(1)	100 to 240	90 to 264	50/60	100	0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9AD1601P5H003(1)				0	0.10	4.0	1500	3.07	108	44	0.17	31
		9AD1601P5HT03(2)				100	0.46	22	4150	8.2	290	167	0.66	58
		9AD1601P5HT03(2)				0	0.10	4.0	1500	3.07	108	44	0.17	31
		9ADW1601H5002(1)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9ADW1601H5T02(2)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9ADW1601H5H001(1)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9ADW1601H5HT01(2)	100 to 240	90 to 264	50/60		0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9ADW1601P5H003(1)	100 to 240	90 to 264	50/60	100	0.46	22	4150	8.2	290	167	0.66	58	-20 to +70	40000/60˚C (70000/40˚C)
		9ADW1601P5H003(1)				0	0.10	4.0	1500	3.07	108	44	0.17	31
		9ADW1601P5HT03(2)				100	0.46	22	4150	8.2	290	167	0.66	58
		9ADW1601P5HT03(2)				0	0.10	4.0	1500	3.07	108	44	0.17	31
