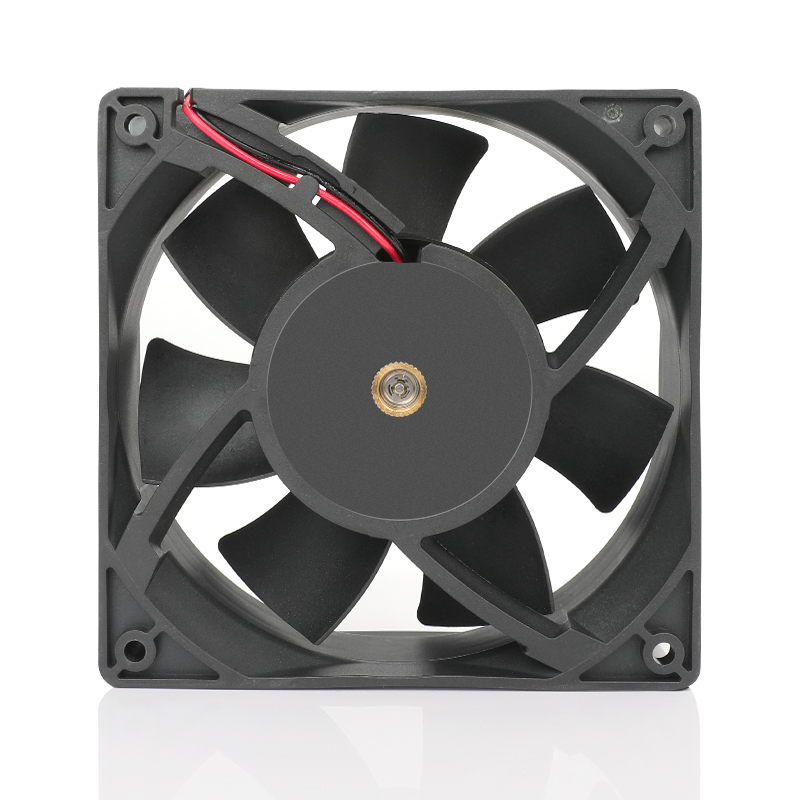

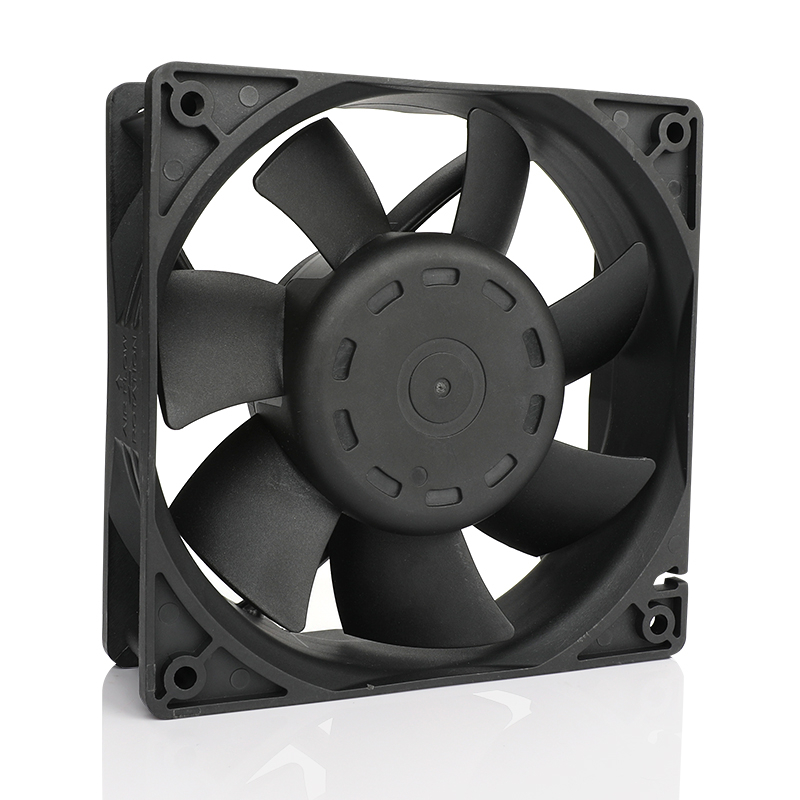

120×120×38mm DC Fan

Size: 120*120*38（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated Operating Current Power Speed Max. Air Flow Max.Static Pressure Noise
Voltage Voltage
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
DC Fan CAPITAL 120×120×38mm  DC Fan CPT12038/12L 12 7~14 0.30 3.60 3000 108.51 3.07 6.96 68.21 50.40
CPT12038/12M 0.40 4.80 3500 130.73 3.70 11.45 112.21 53.75
CPT12038/12H 0.70 8.40 4000 149.76 4.24 14.99 146.90 56.65
CPT12038/12E 2.50 30.00 5000 192.68 5.46 23.33 228.63 61.49
CPT12038/12U 3.60 43.20 6000 233.78 6.62 32.41 317.62 65.45
CPT12038/24L 24 15~27 0.33 7.92 3000 108.51 3.07 6.96 68.21 50.40
CPT12038/24M 0.50 12.00 3500 130.73 3.70 11.45 112.21 53.75
CPT12038/24H 1.00 24.00 4000 149.76 4.24 14.99 146.90 56.65
CPT12038/24E 1.30 31.20 5000 192.68 5.46 23.33 228.63 61.49
CPT12038/24U 2.50 60.00 6000 233.78 6.62 32.41 317.62 65.45
CPT12038/48L 48 30~55 0.12 5.76 3000 108.51 3.07 6.96 68.21 50.40
CPT12038/48M 0.24 11.52 3500 130.73 3.70 11.45 112.21 53.75
CPT12038/48H 0.60 28.80 4000 149.76 4.24 14.99 146.90 56.65
CPT12038/48E 0.80 38.40 5000 192.68 5.46 23.33 228.63 61.49
CPT12038/48U 1.20 57.60 6000 233.78 6.62 32.41 317.62 65.45
CPT12038/12L 12 7~14 0.30 3.60 2600 89.68 2.45 5.03 49.29 43.80
CPT12038/12M 0.40 4.80 3000 111.70 3.16 7.64 74.87 46.91
CPT12038/12H 0.70 8.40 3500 131.05 3.71 9.78 95.84 50.25
CPT12038/12E 2.50 30.00 5500 210.85 5.97 23.85 233.73 60.07
CPT12038/12U 3.60 43.20 6500 236.94 6.71 26.71 261.76 66.00
CPT12038/24L 24 15~27 0.33 7.92 2600 89.68 2.45 5.03 49.29 43.80
CPT12038/24M 0.50 12.00 3000 111.70 3.16 7.64 74.87 46.91
CPT12038/24H 1.00 24.00 3500 131.05 3.71 9.78 95.84 50.25
CPT12038/24E 1.30 31.20 5500 210.85 5.97 23.85 233.73 60.07
CPT12038/24U 2.50 60.00 6500 236.94 6.71 26.71 261.76 66.00
CPT12038/48L 48 30~55 0.12 5.76 2600 89.68 2.45 5.03 49.29 43.80
CPT12038/48M 0.24 11.52 3000 111.70 3.16 7.64 74.87 46.91
CPT12038/48H 0.60 28.80 3500 131.05 3.71 9.78 95.84 50.25
CPT12038/48E 0.80 38.40 5500 210.85 5.97 23.85 233.73 60.07
CPT12038/48U 1.20 57.60 6500 236.94 6.71 26.71 261.76 66.00
CPT12038/12L 12 7~14 1.80 21.60 3500 154.73 4.38 13.82 135.44 59.48
CPT12038/12M 2.50 30.00 4000 179.43 5.08 18.15 177.87 62.38
CPT12038/12H 3.80 45.60 4500 210.59 5.96 23.28 228.14 64.94
CPT12038/12E 4.20 50.40 5000 229.44 6.50 27.27 267.25 67.23
CPT12038/12U 5.00 60.00 5500 251.51 7.12 31.58 309.48 69.29
CPT12038/24L 24 15~27 0.80 19.20 3500 154.73 4.38 13.82 135.44 59.48
CPT12038/24M 1.20 28.80 4000 179.43 5.08 18.15 177.87 62.38
CPT12038/24H 1.80 43.20 4500 210.59 5.96 23.28 228.14 64.94
CPT12038/24E 2.00 48.00 5000 229.44 6.50 27.27 267.25 67.23
CPT12038/24U 2.50 60.00 5500 251.51 7.12 31.58 309.48 69.29
CPT12038/48L 48 30~55 0.30 14.40 3500 154.73 4.38 13.82 135.44 59.48
CPT12038/48M 0.40 19.20 4000 179.43 5.08 18.15 177.87 62.38
CPT12038/48H 0.60 28.80 4500 210.59 5.96 23.28 228.14 64.94
CPT12038/48E 0.80 38.40 5000 229.44 6.50 27.27 267.25 67.23
CPT12038/48U 1.00 48.00 5500 251.51 7.12 31.58 309.48 69.29
CPT12038/12L 12 7~14 1.20 14.40 6000 199.06 5.64 28.32 277.54 64.15
CPT12038/12M 1.60 19.20 6500 212.21 6.01 31.79 311.54 65.89
CPT12038/12H 2.20 26.40 7000 231.64 6.56 36.29 355.64 67.50
CPT12038/12E 3.00 36.00 7500 247.02 7.00 39.55 387.59 69.00
CPT12038/12U 3.60 43.20 8500 279.72 7.92 40.48 396.70 71.72
CPT12038/24L 24 15~27 0.50 12.00 6000 199.06 5.64 28.32 277.54 64.15
CPT12038/24M 0.80 19.20 6500 212.21 6.01 31.79 311.54 65.89
CPT12038/24H 1.00 24.00 7000 231.64 6.56 36.29 355.64 67.50
CPT12038/24E 1.30 31.20 7500 247.02 7.00 39.55 387.59 69.00
CPT12038/24U 2.50 60.00 8500 279.72 7.92 40.48 396.70 71.72
CPT12038/48L 48 30~55 0.30 14.40 6000 199.06 5.64 28.32 277.54 64.15
CPT12038/48M 0.50 24.00 6500 212.21 6.01 31.79 311.54 65.89
CPT12038/48H 0.60 28.80 7000 231.64 6.56 36.29 355.64 67.50
CPT12038/48E 0.80 38.40 7500 247.02 7.00 39.55 387.59 69.00
CPT12038/48U 1.20 57.60 8500 279.72 7.92 40.48 396.70 71.72
CPT12038/12L 12 7~14 1.00 12.00 4000 129.86 3.68 11.40 111.72 55.15
CPT12038/12M 1.50 18.00 4500 145.12 4.11 14.59 142.98 57.71
CPT12038/12H 2.00 24.00 5000 161.79 4.58 17.58 172.28 60.00
CPT12038/12E 2.50 30.00 5500 177.44 5.03 21.05 206.29 62.07
CPT12038/12U 3.60 43.20 6000 201.88 5.72 25.16 246.57 65.00
CPT12038/24L 24 15~27 0.60 14.40 4000 129.86 3.68 11.40 111.72 55.15
CPT12038/24M 0.80 19.20 4500 145.12 4.11 14.59 142.98 57.71
CPT12038/24H 1.20 28.80 5000 161.79 4.58 17.58 172.28 60.00
CPT12038/24E 1.80 43.20 5500 177.44 5.03 21.05 206.29 66.00
CPT12038/24U 2.50 60.00 6000 201.88 5.72 25.16 246.57 65.00
CPT12038/48L 48 30~55 0.20 9.60 4000 129.86 3.68 11.40 111.72 55.15
CPT12038/48M 0.30 14.40 4500 145.12 4.11 14.59 142.98 57.71
CPT12038/48H 0.40 19.20 5000 161.79 4.58 17.58 172.28 60.00
CPT12038/48E 0.50 24.00 5500 177.44 5.03 21.05 206.29 62.07
CPT12038/48U 0.70 33.60 6000 201.88 5.72 25.16 246.57 65.00
CPT12038/12L 12 7~14 0.50 6.00 3000 133.67 3.79 7.69 75.36 38.80
CPT12038/12M 0.70 8.40 3500 154.55 4.37 10.23 100.25 43.60
CPT12038/12H 0.90 10.80 4000 173.19 4.90 12.99 127.30 50.20
CPT12038/12E 1.30 15.60 4500 199.40 5.65 16.07 157.49 58.80
CPT12038/12U 1.80 21.60 5000 227.56 6.44 18.71 183.36 62.30
CPT12038/24L 24 15~27 0.33 7.92 3000 133.67 3.79 7.69 75.36 38.80
CPT12038/24M 0.50 12.00 3500 154.55 4.37 10.23 100.25 43.60
CPT12038/24H 0.60 14.40 4000 173.19 4.90 12.99 127.30 50.20
CPT12038/24E 0.80 19.20 4500 199.40 5.65 16.07 157.49 58.80
CPT12038/24U 1.20 28.80 5000 227.56 6.44 18.71 183.36 62.30
CPT12038/48L 48 30~55 0.20 9.60 3000 133.67 3.79 7.69 75.36 38.80
CPT12038/48M 0.32 15.36 3500 154.55 4.37 10.23 100.25 43.60
CPT12038/48H 0.35 16.80 4000 173.19 4.90 12.99 127.30 50.20
CPT12038/48E 0.40 19.20 4500 199.40 5.65 16.07 157.49 58.80
CPT12038/48U 0.50 24.00 5000 227.56 6.44 18.71 183.36 62.30
CPT12038/12L 12 7~14 0.30 3.60 2500 85.16 2.42 6.62 64.88 45.14
CPT12038/12M 0.40 4.80 3000 100.70 2.85 9.06 88.79 49.10
CPT12038/12H 0.70 8.40 3500 121.38 3.44 12.22 119.76 52.45
CPT12038/12E 2.50 30.00 5500 190.86 5.97 26.09 255.68 62.26
CPT12038/12U 3.60 43.20 6000 205.32 5.81 26.89 263.52 64.15
CPT12038/24L 24 15~27 0.33 7.92 2500 85.16 2.42 6.62 64.88 45.14
CPT12038/24M 0.50 12.00 3000 100.70 2.85 9.06 88.79 49.10
CPT12038/24H 1.00 24.00 3500 121.38 3.44 12.22 119.76 52.45
CPT12038/24E 1.30 31.20 5500 190.86 5.97 26.09 255.68 62.26
CPT12038/24U 2.50 60.00 6000 205.32 5.81 26.89 263.52 64.15
CPT12038/48L 48 30~55 0.12 5.76 2500 85.16 2.42 6.62 64.88 45.14
CPT12038/48M 0.24 11.52 3000 100.70 2.85 9.06 88.79 49.10
CPT12038/48H 0.60 28.80 3500 121.38 3.44 12.22 119.76 52.45
CPT12038/48E 0.80 38.40 5500 190.86 5.97 26.09 255.68 62.26
CPT12038/48U 1.20 57.60 6000 205.32 5.81 26.89 263.52 64.15
CPT12038/12L 12 7~14 0.30 3.60 2000 60.09 1.70 3.24 31.75 36.20
CPT12038/12M 0.40 4.80 2500 75.25 2.13 5.16 50.57 42.80
CPT12038/12H 0.45 5.40 3000 87.07 2.47 6.96 68.21 46.60
CPT12038/12E 0.60 7.20 3500 103.37 2.93 9.02 88.40 52.20
CPT12038/12U 0.80 9.60 4000 111.13 3.15 11.64 114.07 56.80
CPT12038/24L 24 15~27 0.12 2.88 2000 60.09 1.70 3.24 31.75 36.20
CPT12038/24M 0.18 4.32 2500 75.25 2.13 5.16 50.57 42.80
CPT12038/24H 0.25 6.00 3000 87.07 2.47 6.96 68.21 46.60
CPT12038/24E 0.40 9.60 3500 103.37 2.93 9.02 88.40 52.20
CPT12038/24U 0.50 12.00 4000 111.13 3.15 11.64 114.07 56.80
CPT12038/48L 48 30~55 0.03 1.44 2000 60.09 1.70 3.24 31.75 36.20
CPT12038/48M 0.05 2.40 2500 75.25 2.13 5.16 50.57 42.80
CPT12038/48H 0.08 3.84 3000 87.07 2.47 6.96 68.21 46.60
CPT12038/48E 0.12 5.76 3500 103.37 2.93 9.02 88.40 52.20
CPT12038/48U 0.20 9.60 4000 111.13 3.15 11.64 114.07 56.80
