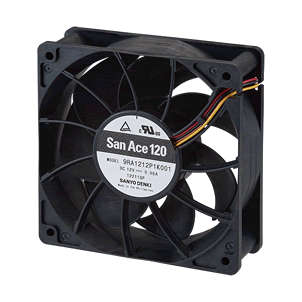

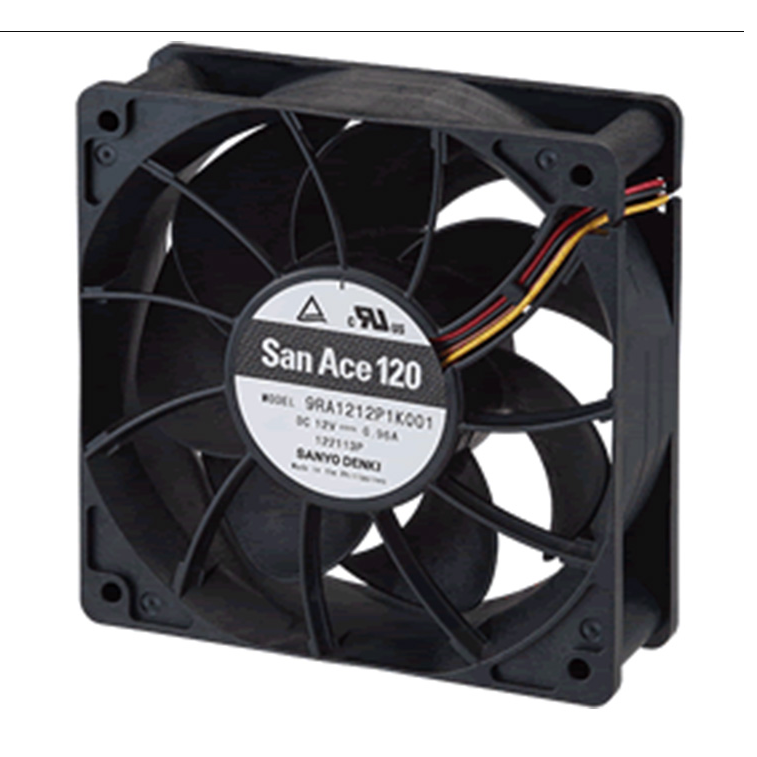

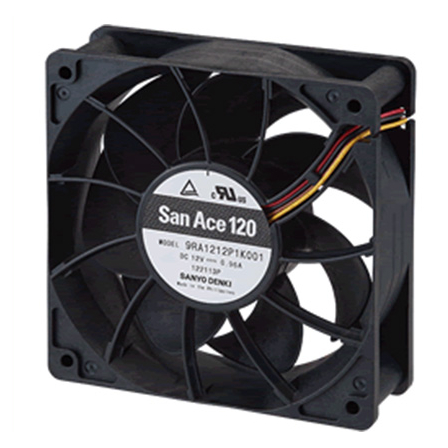

120×120×38 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：460g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	120×120×38 mm	9HV1224P1A001	24	21.6 to 26.4	100	2.4	57.6	9600	7.0	247	950	3.82	71	-20 to +70	40000/60˚C (70000/40˚C)
		9HV1224P1A001	24	21.6 to 26.4	0	0.37	8.88	3800	2.7	95	161	0.65	46
		9HV1248P1G001	48	36 to 60	100	2.0	96	11500	8.3	293	1300	5.22	75
		9HV1248P1G001			0	0.23	11	3800	2.7	95	161	0.65	46
		9HV1248P1H001			100	1.4	67	10000	7.2	254	1050	4.22	72
		9HV1248P1H001			0	0.23	11	3800	2.7	95	161	0.65	46
		9SX1212P1K001	12	10.8 to 13.2	100	4.4	52.8	7400	7.3	258	480	1.93	66	-10 to +60	40000/60˚C (70000/40˚C)
		9GV1212P1J01	12	10.2 to 13.8	100	3.0	36.0	6400	6.35	224	360	1.45	64	-20 to +70	40000/60˚C (70000/40˚C)
		9GV1212P1J01			0	0.19	2.28	1500	1.49	52.6	19.8	0.08	33
		9GV1212P1G01			100	2.1	25.2	5500	5.45	192.6	265	1.06	60
		9GV1212P1G01			0	0.19	2.28	1500	1.49	52.6	19.8	0.08	33
		9GV1224P1J01	24	20.4 to 27.6	100	1.5	36.0	6400	6.35	224	360	1.45	64
		9GV1224P1H01	24	20.4 to 27.6	100	0.8	19.2	5200	5.16	182.3	237	0.95	58
		9GV1248P1J01	48	40.8 to 55.2	100	0.75	36.0	6400	6.35	224	360	1.45	64
		9GV1248P1J01	48	40.8 to 55.2	0	0.06	2.88	1500	1.49	52.6	26.1	0.106	33
		9RA1212P1K001	12	10.8 to 13.2	100	0.96	11.5	4700	4.5	158	170	0.683	50	-20 to +70	30000/60˚C (53000/40˚C)
		9RA1212P1K001	12	10.8 to 13.2	25	0.12	1.4	1800	1.7	60	24	0.096	25
		9RA1224P1K001	24	21.6 to 26.4	100	0.48	11.5	4700	4.5	158	170	0.683	50
		9RA1224P1K001	24	21.6 to 26.4	25	0.06	1.4	1800	1.7	60	24	0.096	25
		9RA1248P1K001	48	43.2 to 52.8	100	0.25	12.0	4700	4.5	158	170	0.683	50
		9RA1248P1K001	48	43.2 to 52.8	25	0.04	1.9	1500	1.4	50	17	0.069	21
		9RA1212G1001	12	7 to 13.8		0.70	8.4	4200	4.0	141	135	0.542	46	-20 to +70	40000/60˚C (70000/40˚C)
		9RA1212E1001				0.47	5.6	3600	3.4	120	100	0.402	43
		9RA1212H1001				0.25	3.0	3000	2.8	99	70	0.281	37
		9RA1224G1001	24	14 to 27.6		0.35	8.4	4200	4.0	141	135	0.542	46
		9RA1224E1001				0.24	5.8	3600	3.4	120	100	0.402	43
		9RA1224H1001				0.13	3.1	3000	2.8	99	70	0.281	37
		9RA1248G1001	48	40.8 to 55.2		0.18	8.6	4200	4.0	141	135	0.542	46
		9RA1248E1001				0.12	5.8	3600	3.4	120	100	0.402	43
		9RA1248H1001				0.07	3.4	3000	2.8	99	70	0.281	37
