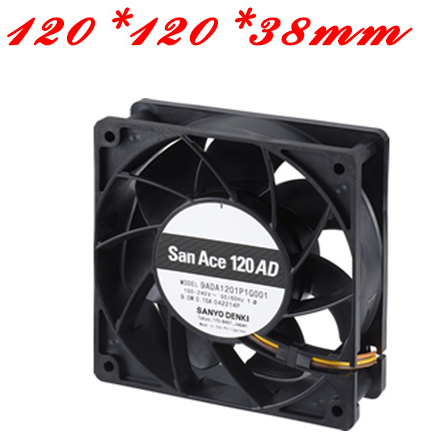

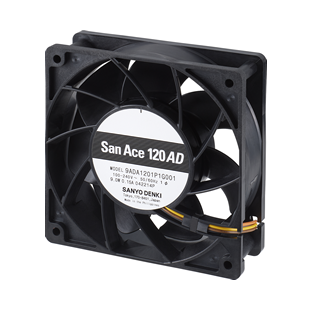

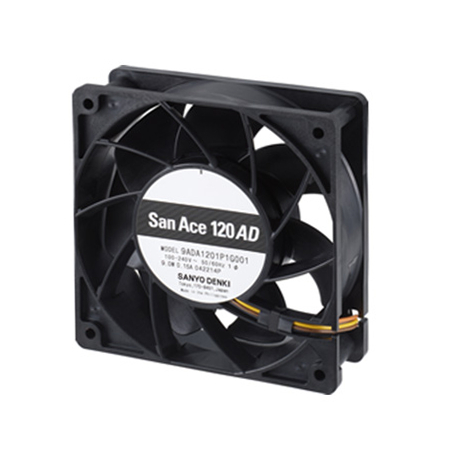

120×120×38 mm ACDC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 2500 VAC, for 1 second (between lead wire conductors and frame)；50/60 Hz, 1500 VAC, for 1 minute (between input lead wire (L, N) conductors and other lead wire conductors)
· Insulation resistance: 10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +70˚C (Non-condensing)
· Lead wire: AC power input L: Orange N: Gray；Sensor: Yellow；Control: Brown；GND: Black
· Mass: 340 g
Take safety measures not to touch this product (including lead wires) while the power is on.
Please ensure appropriate insulation within the final product because of functional insulation between input leads wire (L, N) and other lead wire conductors.
