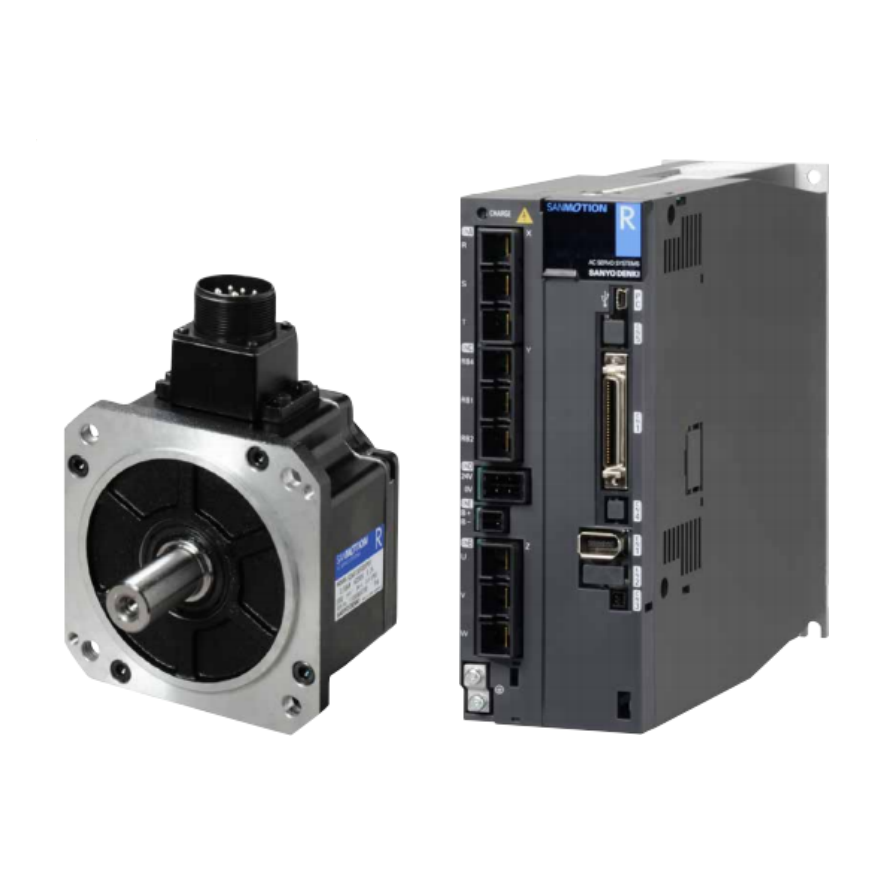

AC Servo Systems

The SANMOTION R series offers a wide range of high-precision servo drives and servo motors, which help to further enhance the performance of customers' equipment. It is a high-precision, highly reliable system with a large selection of models.
Example Applications
Leveraging its high precision and accurate positioning capabilities, it is widely used in applications with corresponding requirements, including:
Injection molding machines, machine tools, machining centers,
semiconductor-related equipment, water jet cutting machines, laser processing machines, etc.
The servo motor is equipped with an encoder (for position and rotation detection) that feeds back instructions from the servo drive, forming a highly reliable and precise drive system. It can also be safely used in high-speed, high-capacity applications.
Safety Specifications
The standard specifications of the R3E Model servo drive comply with safety standards (UL, c-UL, EN standards) and have obtained KC certification.
For servo motors, models that meet safety standards (UL, c-UL, EN standards) are available. (Some models have not yet obtained certification.)
All models listed in this product catalog comply with the EU RoHS Directive (2011/65/EU).
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Model no. Product name Motor flange size Rated output Rated speed Max. speed Rated torque Continuous stall torque Peak stall torque Rotor inertia Generator - Protection rating Operating temperature range Operating humidity range
[mm] [kW] [min-1] [min-1] [N·m] [N·m] [N·m] [×10-4kg·m2 (GD2/4)]
R1AA04005FCH03M AC Servo Motor □40 0.05 3000 6000 0.159 0.167 0.56 0.0146 IP65 0～40℃ 90% max.
(non-condensing)
R1AA13500FCH00M AC Servo Motor □130 5 3000 6000 16 16 48 10.6 IP65 0～40℃ 90% max.
(non-condensing)
R1AA1811KRCH00M AC Servo Motor □180 11 1500 2500 70 70 195 64 IP65 0～40℃ 90% max.
(non-condensing)
R1AA2220KVXH00M AC Servo Motor □220 21 1500 2000 135 135 135 105 IP65 0～40℃ 90% max.
(non-condensing)
R1CA10150VCH00M AC Servo Motor □100 1.5 3000 5000 4.77 4.77 14.3 2.1 IP65 0～40℃ 90% max.
(non-condensing)
R1CA13300VCH00M AC Servo Motor 130 3 3000 5000 9.55 9.55 95.5 6.8 IP65 0～40℃ 90% max.
(non-condensing)
R1CA1815KBCH00M AC Servo Motor 180 15 1500 2000 95.5 95.5 95.5 86 IP65 0～40℃ 90% max.
(non-condensing)
R1CA2220KVXH00 AC Servo Motor 220 21 1500 2000 135 135 135 105 IP65 0～40℃ 90% max.
(non-condensing)
R1EA04005FCH03M AC Servo Motor □40 0.05 3000 6000 0.159 0.167 0.56 0.0146 IP65 0～40℃ 90% max.
(non-condensing)
R1EA06020FCH03M AC Servo Motor □60 0.2 3000 6000 0.637 0.637 0.637 0.122 IP65 0～40℃ 90% max.
(non-condensing)
R2AA06010FCH03M AC Servo Motor □60 0.1 3000 6000 0.318 0.353 1.13 0.117 IP65 0～40℃ 90% max.
(non-condensing)
R2AA08020FCH03M AC Servo Motor □80 0.2 3000 6000 0.637 0.686 2.2 0.52 IP65 0～40℃ 90% max.
(non-condensing)
R2AA10100FCH03M AC Servo Motor □100 1 3000 6000 3.18 3.92 14.3 3.5 IP65 0～40℃ 90% max.
(non-condensing)
R2AA13120BCH00M AC Servo Motor □130 1.2 2000 2000 5.7 6 16 6 IP65 0～40℃ 90% max.
(non-condensing)
R2AA2211KBCH00M AC Servo Motor □220 11 1500 2000 70 80 176 178 IP65 0～40℃ 90% max.
(non-condensing)
R2AA2830KVCH00 AC Servo Motor □275 30 1500 2000 191.1 191.1 480 422 IP65 0～40℃ 90% max.
(non-condensing)
R2AAB8075FCH03M AC Servo Motor □86 0.75 3000 6000 2.38 2.94 11 1.64 IP65 0～40℃ 90% max.
(non-condensing)
R2CA13050DXR00M AC Servo Motor 130 0.55 2000 5000 2.6 3 9 3.1 IP65 0～40℃ 90% max.
(non-condensing)
R2CA18350DCH00M AC Servo Motor 180 3.5 2000 4000 17 22 60 40 IP65 0～40℃ 90% max.
(non-condensing)
R2EA04003FCH03M AC Servo Motor □40 0.03 3000 6000 0.098 0.108 0.37 0.0247 IP65 0～40℃ 90% max.
(non-condensing)
R5AA08075DCH03M AC Servo Motor □80 0.71 3000 5000 2.27 2.55 8.5 1.65 IP65 0～40℃ 90% max.
(non-condensing)
SR403CR01M SR875XR03M □40 0.03 3000 6000 0.098 0.108 0.37 0.0247 IP67 0～40℃ 90% max.
(non-condensing)
SR610CR01M SR875XR03M □60 0.1 3000 6000 0.318 0.353 1.13 0.117 IP67 0～40℃ 90% max.
(non-condensing)
SR875CR03M SR875XR03M □80 0.75 3000 6000 2.39 2.55 8.5 1.82 IP67 0～40℃ 90% max.
(non-condensing)
