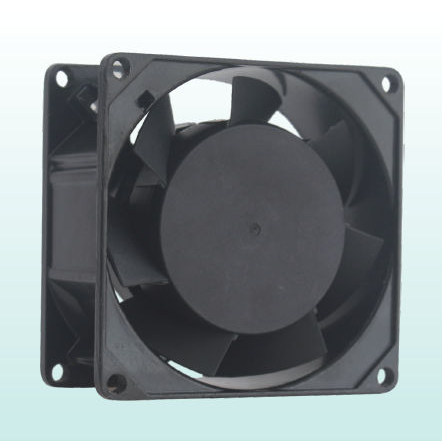

80×80×38mm AC Fan

Size: 80*80*38(mm)
Frame Type: Aluminum Alloy
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model Rated
Voltage
Frequency Current Power Speed Max. Air Flow Max.Static Pressure Noise
(VDC) (VDC) (AMP) (Watts) (RPM) (CFM) (m³/min) (mm-H2O) (pa) (dBA)
AC Fan CAPITAL 80×80×38mm  AC Fan CPT8038/110H 110 50 0.14 11.00 2400 23.00 0.65 2.80 27.46 34.00
60 0.14 8.00 2800 28.00 0.79 4.40 43.15 36.00
CPT8038/220H 220 50 0.06 11.00 2400 23.00 0.65 2.80 27.46 34.00
60 0.06 8.00 2800 28.00 0.79 4.40 43.15 36.00
