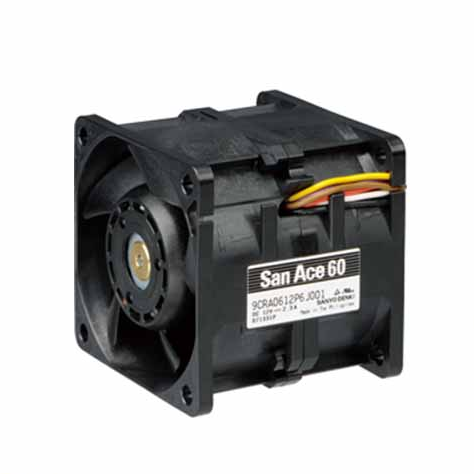

60×60×56 mm Counter Rotating Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Inlet：Red Black Yellow Brown; Outlet：Orange Gray Purple White

· Mass：200g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed [min-1]		Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[Inlet]	[Outlet]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Counter Rotating Fan	60×60×56 mm	9CRH0612P6G001	12	10.8 to 13.2	100	5.6	67.2	26100	26800	2.57	90.8	3350	13.4	78	-20 to +70	40000/60˚C (70000/40˚C)
		9CRH0612P6G001	12	10.8 to 13.2	20	0.16	1.9	3900	4000	0.35	12.3	74	0.3	34
		9CRH0648P6G001	48	36 to 60	100	1.4	67.2	26100	26800	2.57	90.8	3350	13.4	78
		9CRH0648P6G001	48	36 to 60	20	0.11	5.3	3900	4000	0.35	12.3	74	0.3	34
		9CRA0612P6K001	12	10.8 to 13.2	100	3.1	37.2	18300	15800	2.28	80.5	1130	4.54	73	-20 to +70	30000/60˚C (53000/40˚C)
		9CRA0612P6K001			0	0.17	2.0	3800	3300	0.47	16.6	49	0.2	35		30000/60˚C (53000/40˚C)
		9CRA0612P6J001			100	2.3	27.6	16800	14500	2.1	74.2	950	3.82	70		0000/60˚C (70000/40˚C)
		9CRA0612P6J001			0	0.15	1.8	3800	3300	0.47	16.6	49	0.2	35
		9CRA0612P6G001			100	1.3	15.6	13500	11400	1.65	58.3	620	2.49	65
		9CRA0612P6G001			0	0.1	1.2	3000	2500	0.36	12.7	31	0.12	29
