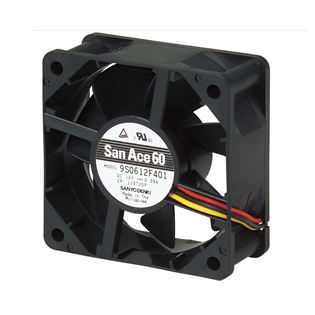

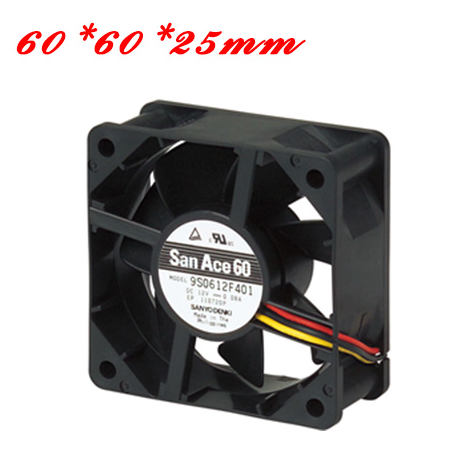

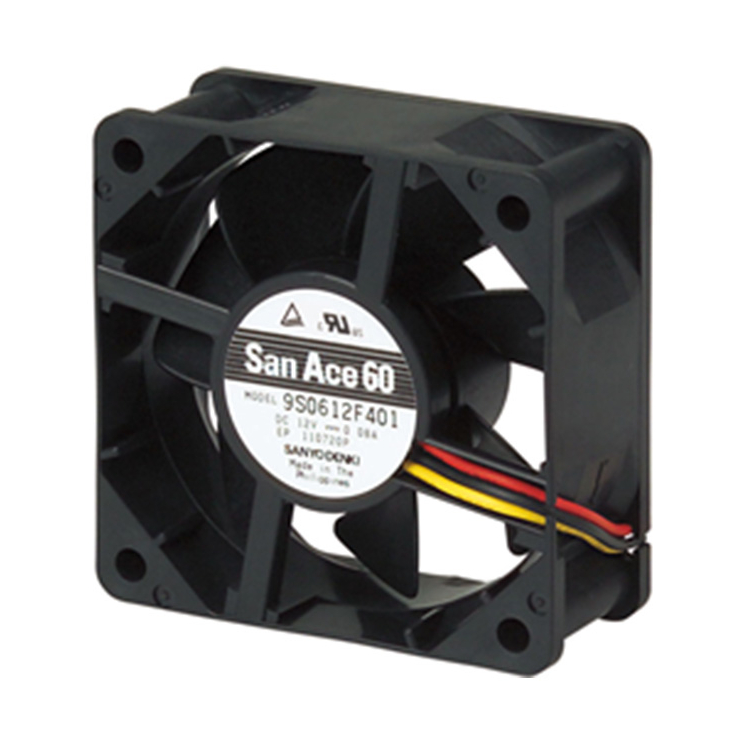

60×60×25 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：90g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	60×60×25 mm	9GX0612P4K001	12	10.8 to 13.2	100	1.3	15.6	13000	1.65	58.3	419	1.67	58	-20 to +70	40000/60˚C (70000/40˚C)
		9GX0612P4K001	12	10.8 to 13.2	20	0.13	1.56	3800	0.47	16.6	35.4	0.141	24	-20 to +70	40000/60˚C (70000/40˚C)
		9G0612P4S001	12	10.2 to 13.8	100	0.67	8.04	11000	1.4	49.4	300	1.2	53	-20 to +70	40000/60˚C (70000/40˚C)
		9G0612P4S001			0	0.07	0.84	3300	0.42	14.8	27	0.11	19
		9G0612P4H001			100	0.5	6.0	9500	1.21	42.7	224	0.9	49
		9G0612P4H001			0	0.06	0.72	2850	0.36	12.7	20.2	0.08	18
		9G0624P4S001	24	20.4 to 27.6	100	0.34	8.16	11000	1.4	49.4	300	1.2	53
		9G0624P4S001			0	0.04	0.96	3300	0.42	14.8	27	0.11	19
		9G0624P4H001			100	0.25	6.0	9500	1.21	42.7	224	0.9	49
		9G0624P4H001			0	0.04	0.96	2850	0.36	12.7	20.2	0.08	18
		9G0648P4S001	48	36 to 72	100	0.18	8.64	11000	1.4	49.4	305	1.22	53
		9G0648P4S001	48	36 to 72	0	0.02	0.96	3300	0.42	14.8	27.4	0.11	19
		9RA0612P4J001	12	10.8 to 13.2	100	0.35	4.2	7700	1.1	38.8	130	0.52	41	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0612P4J001	12	10.8 to 13.2	30	0.05	0.6	1900	0.27	9.5	8.1	0.03	13
		9RA0624P4J001	24	21.6 to 26.4	100	0.18	4.32	7700	1.1	38.8	130	0.52	41
		9RA0624P4J001	24	21.6 to 26.4	20	0.03	0.72	1700	0.24	8.5	6.5	0.02	11
		9RA0648P4J001	48	43.2 to 52.8	100	0.1	4.8	7700	1.1	38.8	130	0.52	41
		9RA0648P4J001	48	43.2 to 52.8	20	0.03	1.44	1800	0.25	8.8	7.1	0.03	12
		9RA0612J4001	12	7 to 13.8		0.35	4.2	7700	1.1	38.8	130	0.52	41	-20 to +70	60000/60˚C (90000/40˚C)
		9RA0612G4001				0.15	1.8	5600	0.8	28.2	69	0.28	36
		9RA0612S4001				0.1	1.2	4600	0.66	23.3	46	0.18	30
		9RA0612H4001				0.07	0.84	3800	0.54	19.1	32	0.13	26
		9RA0612F4001		6 to 13.8		0.05	0.6	3200	0.46	16.2	22	0.09	21
		9RA0612M4001		6 to 13.8		0.04	0.48	2600	0.37	13	14.8	0.06	17
		9RA0624J4001	24	14 to 27.6		0.18	4.32	7700	1.1	38.8	130	0.52	41
		9RA0624G4001				0.08	1.92	5600	0.8	28.2	69	0.28	36
		9RA0624S4001				0.06	1.44	4600	0.66	23.3	46	0.18	30
		9RA0624H4001				0.05	1.2	3800	0.54	19.1	32	0.13	26
		9RA0624F4001		12 to 27.6		0.04	0.96	3200	0.46	16.2	22	0.09	21
		9RA0624M4001		14 to 27.6		0.03	0.72	2600	0.37	13	14.8	0.06	17
		9RA0648J4001	18	36 to 55.2		0.1	4.8	7700	1.1	38.8	130	0.52	41
		9RA0648G4001	18	36 to 55.2		0.06	2.88	5600	0.8	28.2	69	0.28	36
		9S0612S401	12	8 to 13.8		0.2	2.4	5000	0.74	26.1	65.7	0.26	31	-10 to +70	40000/60˚C (70000/40˚C)
		9S0612H401				0.11	1.32	3900	0.58	20.5	40.0	0.16	24
		9S0612F401				0.08	0.96	3300	0.49	17.3	29.3	0.12	20
		9S0612M401				0.07	0.84	2700	0.4	14.1	19.7	0.08	16
