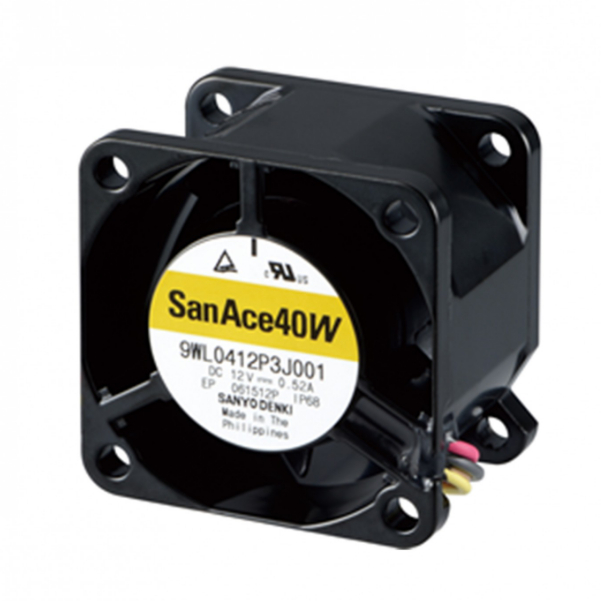

40×40×28 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：53g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	40×40×28 mm	9WPA0412P3G001	12	10.8 to 13.2	100	0.50	6.0	22200	0.63	22.2	555	2.22	53	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0412P3G001	12	10.8 to 13.2	20	0.06	0.72	5000	0.14	4.9	28.1	0.11	21
		9WPA0424P3G001	24	21.6 to 26.4	100	0.25	6.0	22200	0.63	22.2	555	2.22	53
		9WPA0424P3G001	24	21.6 to 26.4	20	0.06	1.44	9200	0.26	9.1	95	0.38	34
		9WPA0412H3001	12	7 to 13.8		0.34	4.1	18500	0.52	18.3	375	1.51	48	-20 to +70	40000/60˚C (70000/40˚C)
		9WPA0424H3001	24	14 to 27.6		0.17	4.1	18500	0.52	18.3	375	1.51	48	-20 to +70	40000/60˚C (70000/40˚C)
		9WL0412P3J001	12	10.8 to 13.2	100	0.52	6.24	17500	0.63	22.2	400	1.61	51	-20 to +70	150000/60˚C (185000/40˚C)
		9WL0412P3J001			20	0.06	0.72	3600	0.13	4.6	16.9	0.07	20
		9WL0412P3G001			100	0.4	4.8	15500	0.56	19.7	310	1.24	47
		9WL0412P3G001			20	0.06	0.72	3300	0.12	4.2	14.0	0.06	18
		9WL0424P3J001	24	21.6 to 26.4	100	0.26	6.24	17500	0.63	22.2	400	1.61	51
		9WL0424P3J001			20	0.04	0.96	4000	0.14	5.1	20.9	0.08	22
		9WL0424P3G001			100	0.2	4.8	15500	0.56	19.7	310	1.24	47
		9WL0424P3G001			20	0.04	0.96	3000	0.11	3.8	11.6	0.05	16
