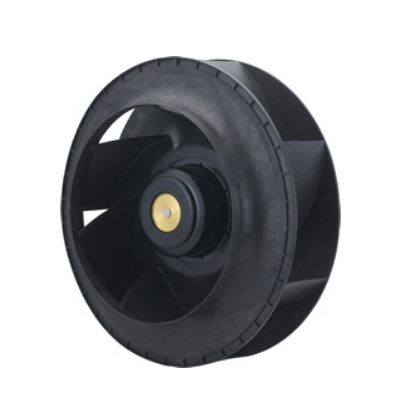

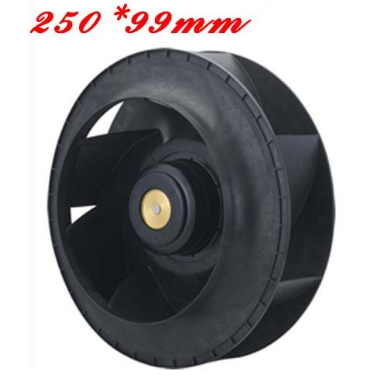

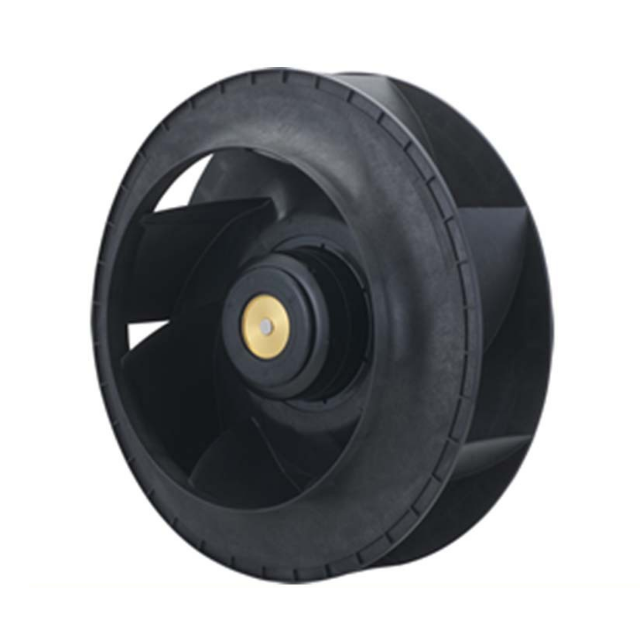

250×99 mm ACDC Fan

General Specifications
· Material
Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between lead wire conductors and motor case)
· Insulation resistance: 10 MΩ min. at 500 VDC (between lead wire conductors and motor case)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +70˚C (Non-condensing)
· Lead wire: AC power input L: Orange N: Gray;Ground: Yellow / Green;+10 VDC output: Red Black;Sensor: Yellow;Control: Brown
· Mass: 1920g
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Operating
voltage range
Frequency PWM duty
cycle(1)
Rated
current*
Rated input Rated Speed Max. airflow Max. static
pressure
SPL Operating
temperature
Expected life
[V] [V] [Hz] [%] [A] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
ACDC Fan ø250×99 mm 9ADTV11P0G001 115 90 to 132 50/60 100 2.3 140 2700 26.5 936 650 2.61 71 -25 to +60 40000/60˚C
(70000/40˚C)
20 0.3 10 1000 9.6 339 88 0.35 57
9ADTV23P0G001 230 180 to 264 100 1.2 140 2700 26.5 936 650 2.61 71
20 0.2 10 1000 9.6 339 88 0.35 57
9ADW1TV11P0G001 115 90 to 132 50/60 100 2.3 140 2700 26.5 936 650 2.61 71 -25 to +60 40000/60˚C
(70000/40˚C)
20 0.3 10 1000 9.6 339 88 0.35 57
9ADW1TV23P0G001 230 180 to 264 100 1.2 140 2700 26.5 936 650 2.61 71
20 0.2 10 1000 9.6 339 88 0.35 57
