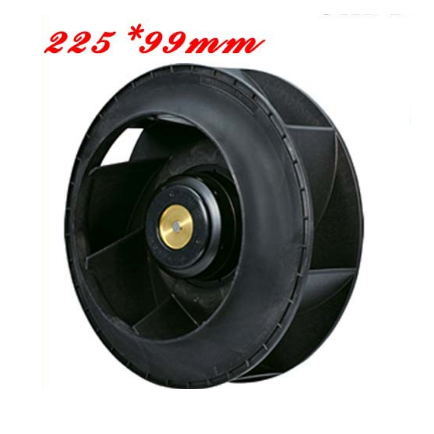

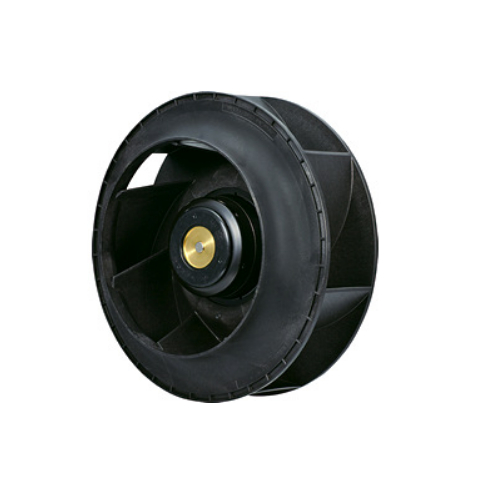

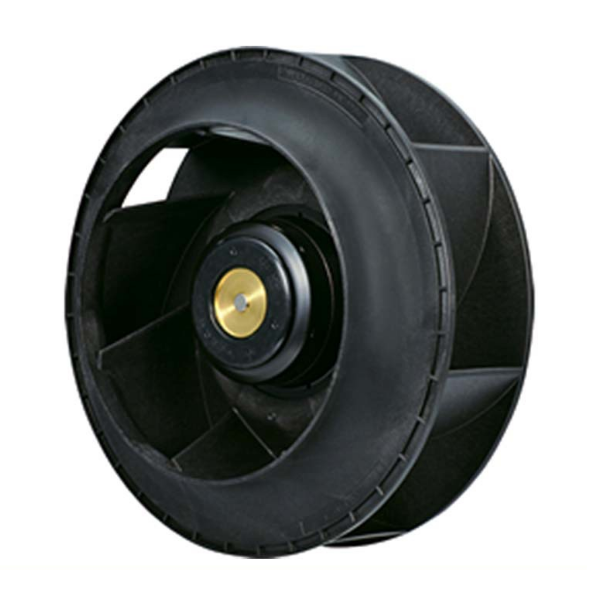

225×99 mm ACDC Fan

General Specifications
· Material
Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between lead wire conductors and motor case)
· Insulation resistance: 10 MΩ min. at 500 VDC (between lead wire conductors and motor case)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +70˚C (Non-condensing)
· Lead wire: AC power input L: Orange N: Gray；Ground: Yellow / Green；+10 VDC output: Red Black；Sensor: Yellow；Control: Brown
· Mass: 1800 g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	Frequency	PWM duty cycle(1)	Rated current*	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[Hz]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
ACDC Fan	ø225×99 mm	9ADTS11P0G001	115	90 to 132	50/60	100	2.23	155	3200	23.0	812	815	3.27	74	-20 to +60	40000/60˚C (70000/40˚C)
		9ADTS11P0G001				20	0.3	10	1000	7.1	252	80	0.32	50
		9ADTS11P0F001				100	1.11	70	2450	17.6	621	480	1.93	68
		9ADTS11P0F001				20	0.3	10	1000	7.1	252	80	0.32	50
		9ADTS23P0G001	230	180 to 264		100	1.17	155	3200	23.0	812	815	3.27	74
		9ADTS23P0G001				20	0.2	10	1000	7.1	252	80	0.32	50
		9ADTS23P0F001				100	0.64	70	2450	17.6	621	480	1.93	68
		9ADTS23P0F001				20	0.2	10	1000	7.1	252	80	0.32	50
		9ADW1TS11P0H001	115	90 to 132	50/60	100	2.06	140	3100	22.3	787	760	3.05	73	-20 to +60	40000/60˚C (70000/40˚C)
		9ADW1TS11P0H001				20	0.3	11	1000	7.1	252	80	0.32	50
		9ADW1TS11P0M001				100	1.08	61	2350	16.9	597	440	1.77	67
		9ADW1TS11P0M001				20	0.3	11	1000	7.1	252	80	0.32	50
		9ADW1TS23P0H001	230	180 to 264		100	1.06	140	3100	22.3	787	760	3.05	73
		9ADW1TS23P0H001				20	0.2	11	1000	7.1	252	80	0.32	50
		9ADW1TS23P0M001				100	0.57	61	2350	16.9	597	440	1.77	67
		9ADW1TS23P0M001				20	0.2	11	1000	7.1	252	80	0.32	50
