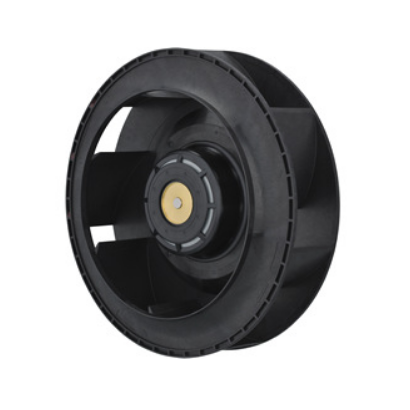

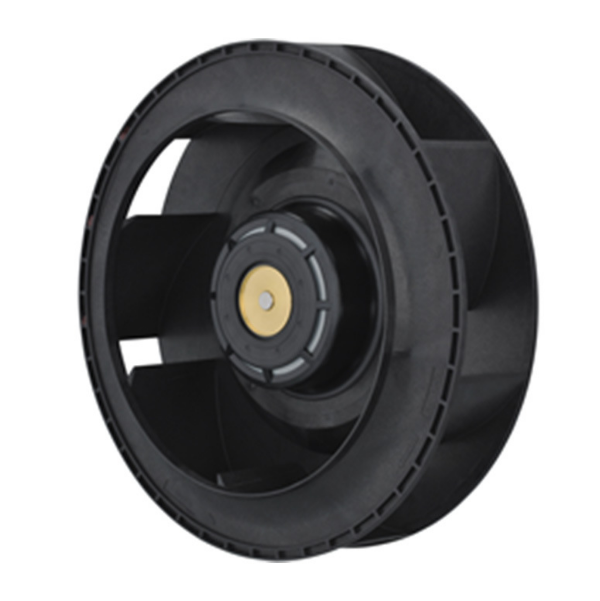

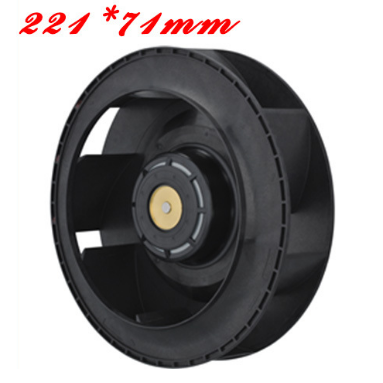

221×71 mm Centrifugal Fan

General Specifications
· Material
Motor case: Aluminum, Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：1050g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Centrifugal Fan	ø221×71 mm	9TP24P0H001	24	16 to 36	100	3.2	79.8	3050	17.6	622	530	2.13	71	-20 to +70	40000/60˚C (70000/40˚C)
		9TP24P0H001	24	16 to 36	15	0.4	9.6	1000	5.75	203	57.4	0.23	53	-20 to +70
		9TP48P0G001	48	36 to 72	100	2.75	132	3650	21	742	760	3.05	74	-20 to +60
		9TP48P0G001			15	0.2	9.6	1000	5.75	203	57.4	0.23	53	-20 to +60
		9TP48P0H001			100	1.6	76.8	3050	17.6	622	530	2.13	71	-20 to +70
		9TP48P0H001			15	0.2	9.6	1000	5.75	203	57.4	0.23	53	-20 to +70
