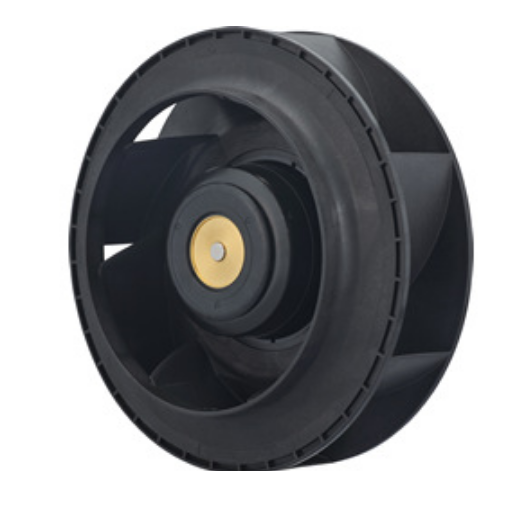

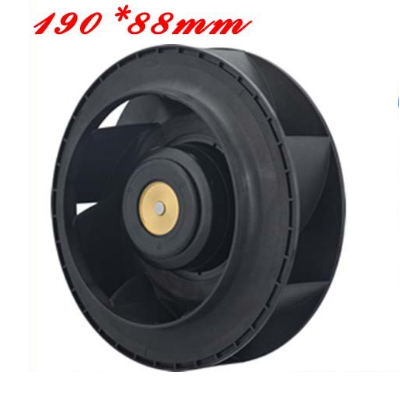

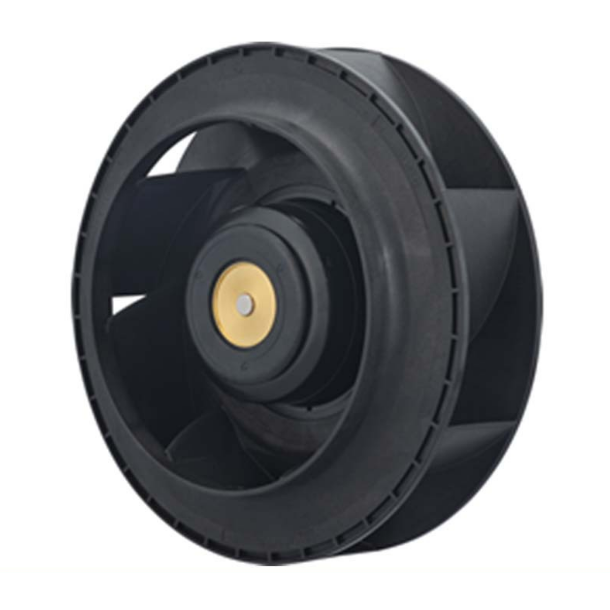

190×88 mm ACDC Fan

General Specifications
· Material
Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function: Locked rotor burnout protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between lead wire conductors and motor case)
· Insulation resistance: 10 MΩ min. at 500 VDC (between lead wire conductors and motor case)
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature: -30 to +70˚C (Non-condensing)
· Lead wire: AC power input L: Orange N: Gray；Ground: Yellow / Green；+10 VDC output: Red Black；Sensor: Yellow；Control: Brown
· Mass: 1600 g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	Frequency	PWM duty cycle(1)	Rated current*	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[Hz]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
ACDC Fan	ø190×88 mm	9ADTU11P0G001	115	90 to 132	50/60	100	2.5	150	4800	16.5	583	1200	4.82	72	-25 to +60	40000/60˚C (70000/40˚C)
		9ADTU11P0G001	115	90 to 132		20	0.3	10	1000	3.3	116	52	0.21	43
		9ADTU23P0G001	230	180 to 264		100	1.3	150	4800	16.5	583	1200	4.82	72
		9ADTU23P0G001	230	180 to 264		20	0.2	10	1000	3.3	116	52	0.21	43
		9ADW1TU11P0G001	115	90 to 132	50/60	100	2.5	150	4800	16.5	583	1200	4.82	72	-25 to +60	40000/60˚C (70000/40˚C)
		9ADW1TU11P0G001	115	90 to 132		20	0.3	10	1000	3.3	116	52	0.21	43
		9ADW1TU23P0G001	230	180 to 264		100	1.3	150	4800	16.5	583	1200	4.82	72
		9ADW1TU23P0G001	230	180 to 264		20	0.2	10	1000	3.3	116	52	0.21	43
