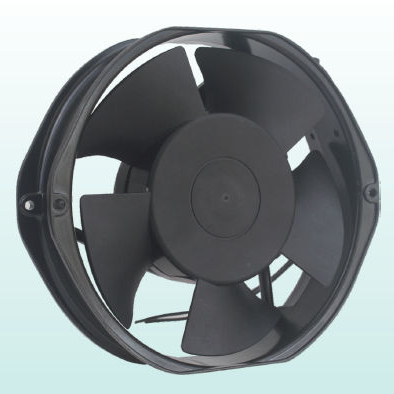

170×150×38mm AC Fan

Size: 170*150*38（mm）
Frame Type: Aluminum Alloy
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated Voltage	Frequency	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Rated Voltage	Frequency	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
AC Fan CAPITAL	170×150×38mm AC Fan	CPT17038/110H	110	50	0.26	33.00	2500	166.00	4.70	16.70	163.77	57.00
		CPT17038/110H	110	60	0.25	30.00	3000	198.00	5.61	19.50	191.23	61.00
		CPT17038/220H	220	50	0.17	33.00	2500	166.00	4.70	16.70	163.77	57.00
		CPT17038/220H	220	60	0.16	30.00	3000	198.00	5.61	19.50	191.23	61.00
