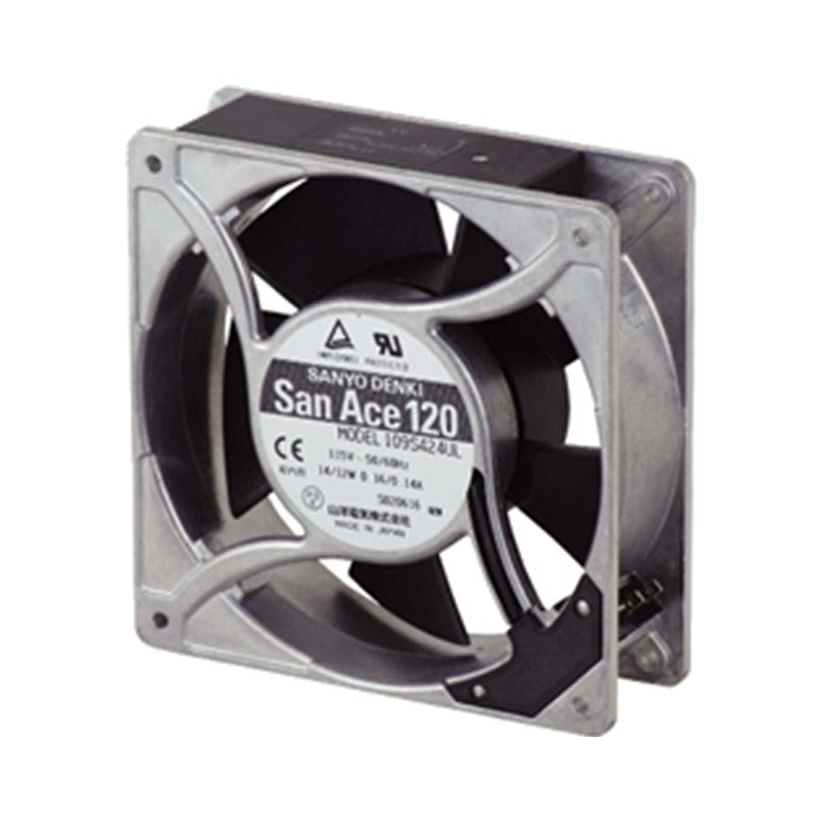

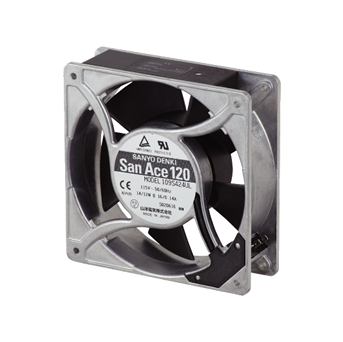

120×120×38 mm AC Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)
· Expected life: See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor structure: Shaded coil motor
· Motor protection function: Locked rotor burnout protection, Reverse polarity protection. For details, please refer to p. 616.
· Dielectric strength: 50/60 Hz, 1500 VAC, for 1 minute (between input terminal and G terminal)
· Dielectric strength (with sensor): 50/60 Hz 1500 VAC 1 minute (between AC input terminal and G terminal) 50/60 Hz 1000 VAC 1 minute (between lead wire conductors and frame)
· Insulation resistance: 10 MΩ min. at 500 VDC
· Sound pressure level (SPL): A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Operating voltage range: Voltage of each model ±10%
· Storage temperature: -30 to +70˚C (Non-condensing)
· Sensor-Purpose lead wire: Brown Black Sensor Yellow
· Mass: 550 g/580 g (with Sensor)
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Frequency Input Current Locked rotor current Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [Hz] [W] [A] [A] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
AC Fan 120×120×38 mm 109S075UL 100 50/60 18/16 0.24/0.21 0.32/0.28 2700/3100 2.5 /2.9 88.3/102.5 57.9/68.7 0.233/0.276 42/45 -30 to +60 25000/60˚C
(56000/40˚C)
109S074UL 115 0.21/0.18 0.27/0.24
109S078UL 200 0.12/0.1 0.16/0.14
109S072UL 230 0.11/0.09 0.14/0.13
109S005UL 100 14/12 0.18/0.16 0.25/0.22 2700/3100 2.35/2.7 83 / 95.4 55.9/65.7 0.224/0.264 40/43
109S024UL 115 0.16/0.14 0.21/0.18
109S008UL 200 0.09/0.08 0.13/0.11
109S025UL 230 0.08/0.07 0.11/0.09
109S029UL 100 14/12 0.18/0.16 0.23/0.21 2450/2700 2.15/2.35 76 / 83 44.1/49.0 0.177/0.197 38/40
109S013UL 13/11 0.16/0.14 0.16/0.15 1800/2000 1.55/1.75 54.8/ 60.8 23.5/26.4 0.094/0.106 30/32
109S006UL* 7/7 0.1 /0.09 0.1 /0.09 1650/1700 1.45/1.5 51.2/ 53 17.6/17.6 0.071/0.071 28/28
115 10/10 0.13/0.11 0.13/0.11 1800/1900 1.56/1.64 55 / 57.9 20 /20.6 0.08 /0.083 30/31
109S010UL* 200 7/7 0.05/0.04 0.05/0.04 1650/1700 1.45/1.5 51.2/ 53 17.6/17.6 0.071/0.071 28/28
240 11/11 0.06/0.05 0.06/0.05 1800/1950 1.58/1.68 55.8/ 59.3 20.6/21.6 0.083/0.087 30/32
109S005 100 50/60 14/12 0.18/0.16 0.25/0.22 2700/3100 2.35/2.7 83 / 95.4 55.9/65.7 0.224/0.264 40/43 -30 to +60 25000/60˚C
(56000/40˚C)
109S024 120 0.16/0.14 0.21/0.18
109S008 200 0.09/0.08 0.13/0.11
109S025 230 0.08/0.07 0.11/0.09
109S013 100 13/11 0.16/0.14 0.16/0.15 1800/2000 1.55/1.75 54.8/ 60.8 23.5/26.4 0.094/0.106 30/32
109S006* 0.1 /0.09 0.1 /0.09 1650/1700 1.45/1.5 51.2/ 53 17.6/17.6 0.071/0.071 28/28
109S010* 200 7/7 0.05/0.04 0.05/0.04
109S405UL 100 50/60 14/12 0.18/0.16 0.25/0.22 2700/3100 2.35/2.7 83 / 95.4 55.9/65.7 0.224/0.264 40/43 -10 to +60 25000/60˚C
(56000/40˚C)
109S424UL 115 0.16/0.14 0.21/0.18
109S408UL 200 0.09/0.08 0.13/0.11
109S425UL 230 0.08/0.07 0.11/0.09
109S429UL 100 0.18/0.16 0.23/0.21 2450/2700 2.15/2.35 76 / 83 44.1/49.0 0.177/0.197 38/40
109S406UL* 7/6 0.09/0.08 0.1 /0.09 1650/1700 1.45/1.5 51 / 53 17.7/17.7 0.071/0.071 28/28
109S475UL 100 18/16 0.24/0.21 0.32/0.28 2700/3100 2.5 /2.9 88.3/102.4 57.9/68.7 0.233/0.276 42/45
109S474UL 115 0.21/0.18 0.27/0.24
109S478UL 200 0.12/0.1 0.16/0.14
109S472UL 230 0.11/0.09 0.14/0.13
