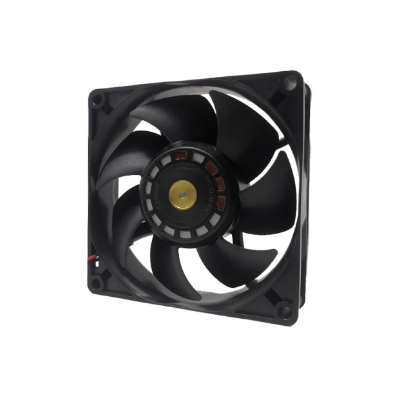

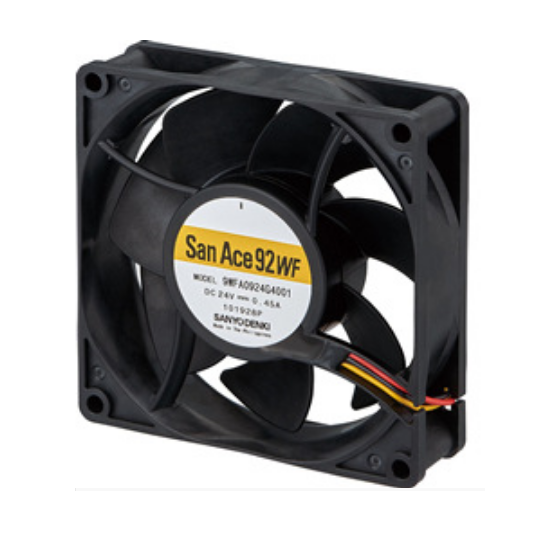

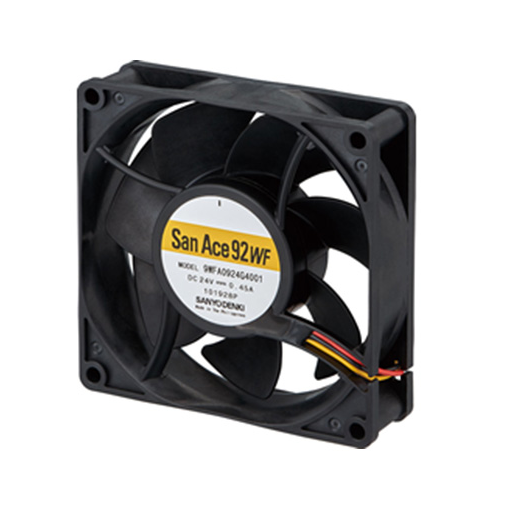

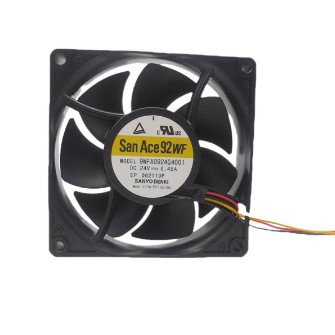

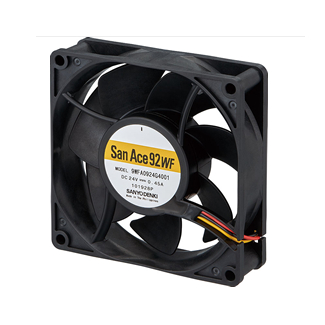

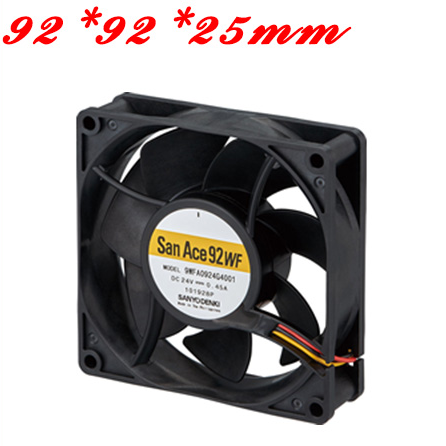

92×92×25 mm Oil Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow
· Mass：170g
This fan can be used in environments with oil mist.*
* Environment where cutting oil creates oil mist. Conduct a product evaluation with the type of oil to be used.
Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Specifications

Category Model Model no. Rated Voltage Operating
voltage range		 Rated
current		 Rated input Rated Speed Max. airflow Max. static
pressure		 SPL Operating
temperature		 Expected life
[V] [V] [A] [W] [min-1] [m3/min] [CFM] [Pa] [inchH2O] [dB(A)] [˚C] [h]
Oil Proof Fan 92×92×25 mm 9WFA0924G4001 24 20.4 to 27.6 0.45 10.8 7350 2.85 100.6 250 1.0 56 -20 to +70 40000/60˚C
(70000/40˚C)
9WFA0924H4001 0.28 6.72 6100 2.35 83.0 171 0.69 52
