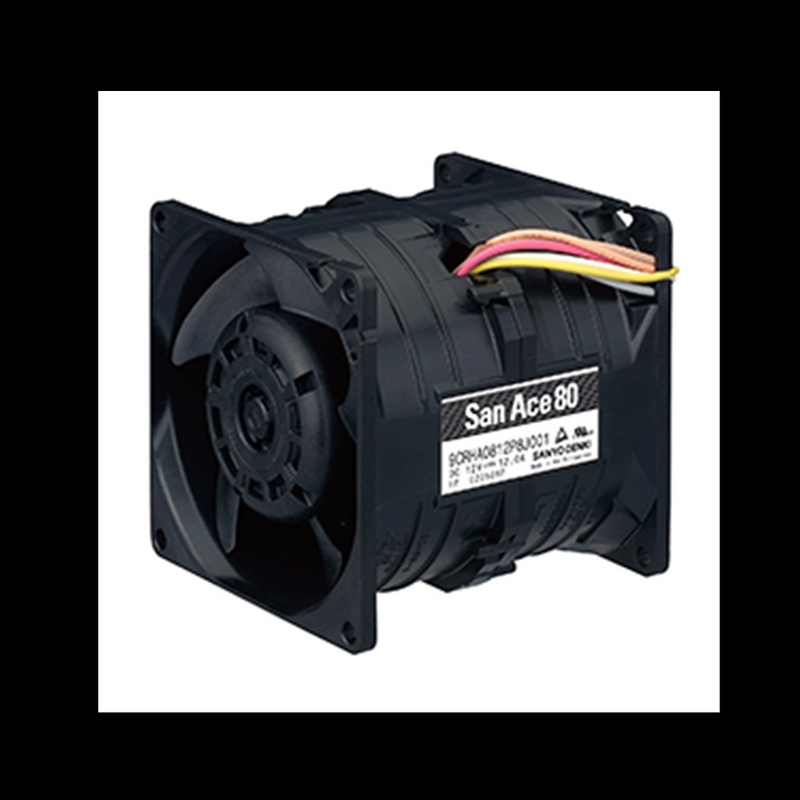

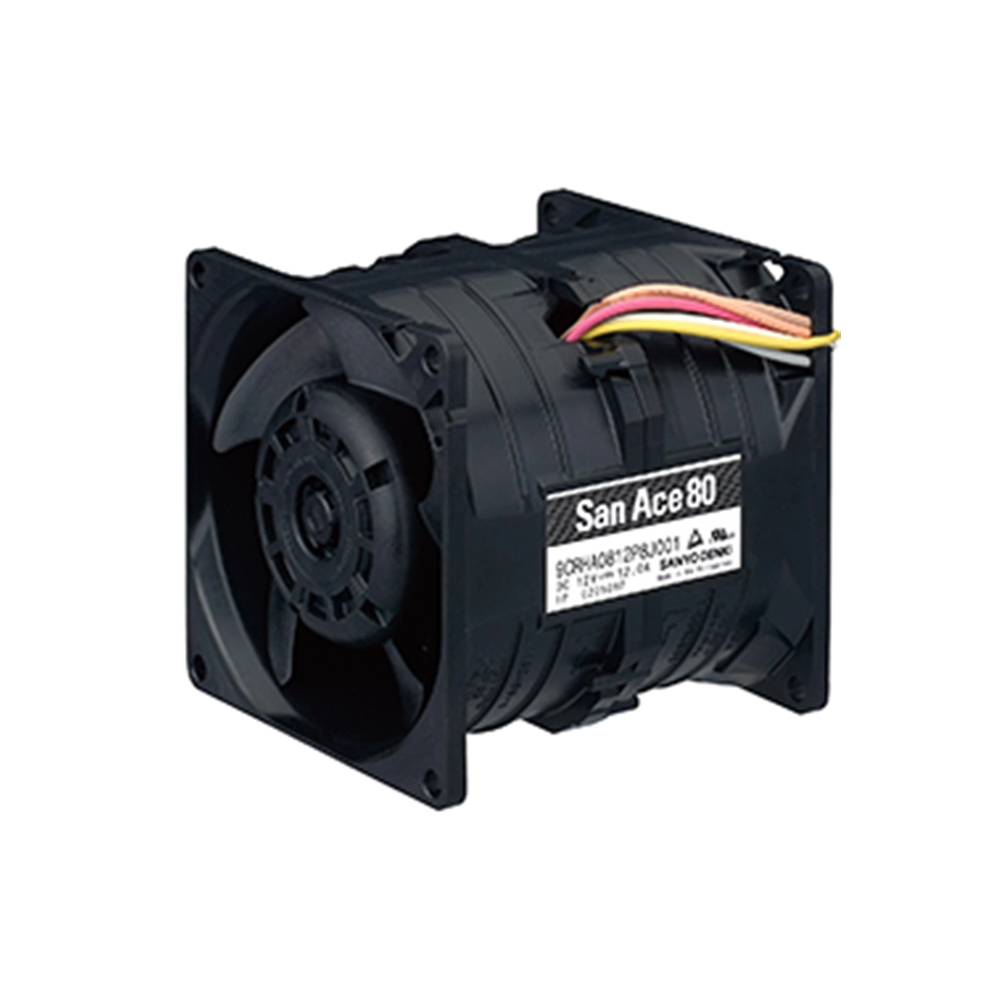

80×80×80 mm Counter Rotating Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Inlet：Red Black Yellow Brown; Outlet：Orange Gray Purple White

· Mass：430g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed [min-1]		Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[Inlet]	[Outlet]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Counter Rotating Fan	80×80×80 mm	9CRHA0812P8J001	12	10.8 to 12.6	100	12.0	144	18500	19300	5.65	199	2700	10.8	85	-20 to +70	40000/60˚C (70000/40˚C)
		9CRHA0812P8J001	12	10.8 to 12.6	20	0.20	2.40	2300	2500	0.70	24.7	52.0	0.208	36
		9CRHA0848P8J001	48	40.8 to 60.0	100	2.8	135	18500	19300	5.65	199	2700	10.8	85
		9CRHA0848P8J001	48	40.8 to 60.0	20	0.11	5.28	2300	2500	0.70	24.7	52.0	0.208	36
		9CRH0812P8G001	12	10.8 to 12.6	100	10	120	15400	15200	5.7	201	1950	7.80	82	-20 to +70	40000/60˚C (70000/40˚C)
		9CRH0812P8G001	12	10.8 to 12.6	20	0.20	2.40	2000	1900	0.70	24.7	36.0	0.14	30
		9CRH0848P8G001	48	40.8 to 60.0	100	2.5	120	15400	15200	5.7	201	1950	7.80	82
		9CRH0848P8G001	48	40.8 to 60.0	20	0.15	7.20	2000	1900	0.70	24.7	36.0	0.14	30
		9CRB0812P8G001	12	10.8 to 13.2	100	9.2	110.4	14600	12200	5.5	194	1150	4.6	80	-20 to +70	40000/60˚C (70000/40˚C)
		9CRB0812P8G001	12	10.8 to 13.2	20	0.17	2.04	2000	1670	0.70	24.7	21.6	0.09	24	-20 to +70	40000/60˚C (70000/40˚C)
		9CRA0812P8G001	12	10.8 to 13.2	100	5.3	63.6	12000	11300	4.5	158.9	1150	4.62	76	-20 to +70	40000/60˚C (70000/40˚C)
		9CRA0812P8G001			0	0.20	2.40	2000	1900	0.74	26.1	31.9	0.13	30
		9CRA0812P8H001			100	3.3	39.6	10000	9400	3.75	133.9	798	3.21	72
		9CRA0812P8H001			0	0.20	2.40	2000	1900	0.74	26.1	31.9	0.13	30
		9CRA0824P8G001	24	21.6 to 26.4	100	2.65	63.6	12000	11300	4.5	158.9	1150	4.62	76
		9CRA0824P8G001	24	21.6 to 26.4	0	0.09	2.16	2000	1900	0.74	26.1	31.9	0.13	30
		9CRA0848P8G001	48	40.8 to 55.2	100	1.32	63.4	12000	11300	4.5	158.9	1150	4.62	76
		9CRA0848P8G001	48	40.8 to 55.2	0	0.29	13.9	5000	4700	1.88	66.2	200	0.8	52
