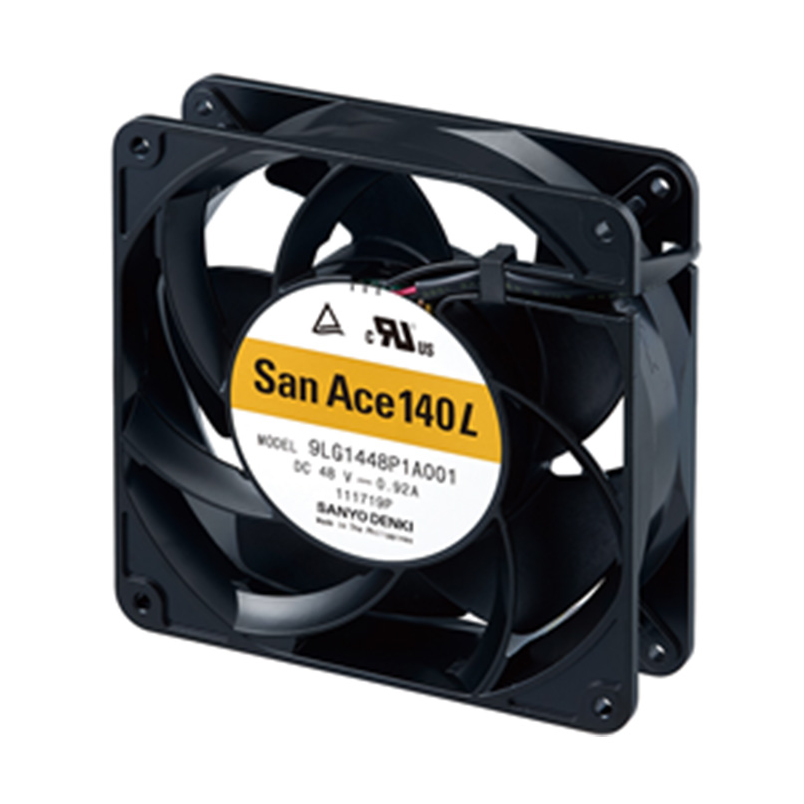

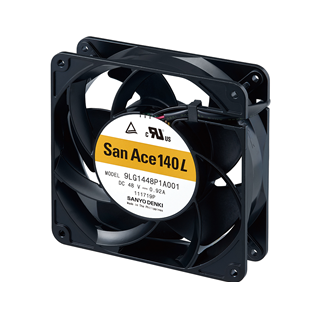

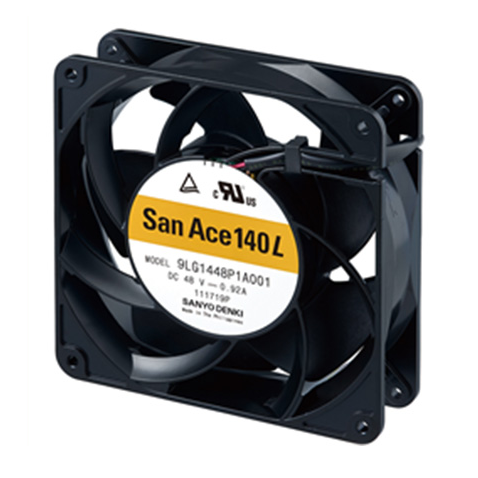

140×140×38 mm Long Life Fan

General Specifications
· Material
Frame: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：740g

· Ingress protection：IP68 For more information on IP rating, refer to p. 625.


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Long Life Fan	140×140×38 mm	9LG1412P1A001	12	10.2 to 13.8	100	3.72	44.64	6900	8.0	282	516	2.07	68	-20 to +70	180000/60˚C (215000/40˚C)
		9LG1412P1A001			20	0.27	3.24	2300	2.66	93	80	0.32	39
		9LG1412P1H001			100	1.7	20.4	5200	6.0	212	300	1.2	62
		9LG1412P1H001			20	0.27	3.24	2300	2.66	93	80	0.32	39
		9LG1412P1M001			100	0.6	7.2	3300	3.7	130	170	0.68	46
		9LG1412P1M001			20	0.16	1.92	1300	1.45	51	26	0.1	29
		9LG1424P1A001	24	20.4 to 27.6	100	1.86	44.64	6900	8.0	282	516	2.07	68
		9LG1424P1A001			20	0.17	4.08	2300	2.66	93	80	0.32	39
		9LG1424P1H001			100	0.85	20.4	5200	6.0	212	300	1.2	62
		9LG1424P1H001			20	0.16	3.84	2300	2.66	93	80	0.32	39
		9LG1424P1M001			100	0.3	7.2	3300	3.7	130	170	0.68	46
		9LG1424P1M001			20	0.11	2.64	1300	1.45	51	26	0.1	29
		9LG1448P1A001	48	40.8 to 55.2	100	0.92	44.16	6900	8.0	282	516	2.07	68
		9LG1448P1A001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9LG1448P1H001			100	0.42	20.16	5200	6.0	212	300	1.2	62
		9LG1448P1H001			20	0.11	5.28	2300	2.66	93	80	0.32	39
		9LG1448P1M001			100	0.15	7.2	3300	3.7	130	170	0.68	46
		9LG1448P1M001			20	0.09	4.32	1300	1.45	51	26	0.1	29
		9LG1412L1001	12	10.2 to 13.8		0.27	3.3	2300	2.6	91.9	80	0.32	39	-20 to +70	180000/60˚C (215000/40˚C)
		9LG1424L1001	24	20.4 to 27.6 0		0.17	4.1	2300	2.6	91.9	80	0.32	39
		9LG1448L1001	48	40.8 to 55.2		0.11	5.3	2300	2.6	91.9	80	0.32	39
