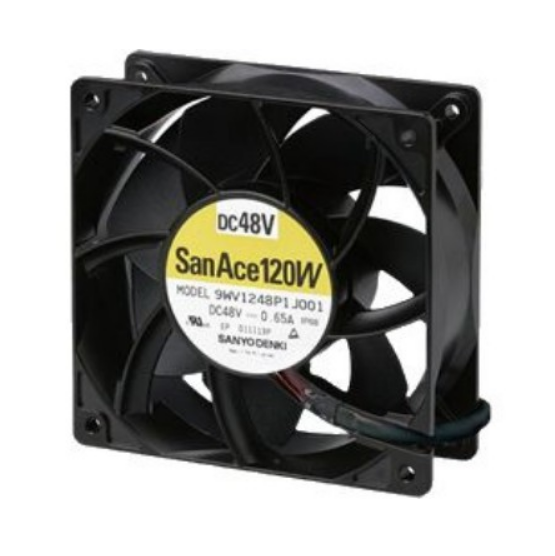

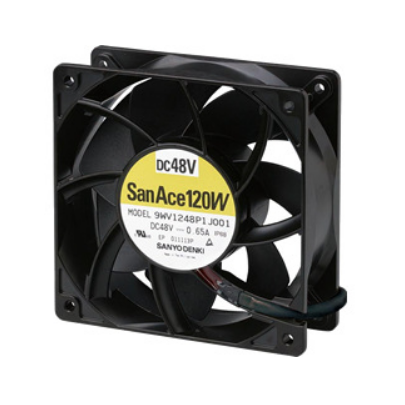

120×120×38 mm Splash Proof Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：460g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	120×120×38 mm	9WV1212P1J001	12	10.2 to 13.8	100	3	36	6400	6.35	224	360	1.45	64	-20 to +70	60000/60˚C (90000/40˚C)
		9WV1212P1J001	12	10.2 to 13.8	0	0.2	2.4	1500	1.49	52.6	19.8	0.08	33
		9WV1224P1J601	24	20.4 to 27.6	100	1.5	36	6400	6.35	224	360	1.45	64
		9WV1224P1J601			0	0.12	2.88	1500	1.49	52.6	26.1	0.105	33
		9WV1224P1H001			100	0.8	19.2	5200	5.16	182	237	0.95	58
		9WV1248P1J001	48	40.8 to 55.2	0	0.65	31.2	6400	6.35	224	360	1.45	64
		9WV1248P1J001	48	40.8 to 55.2	100	0.06	2.88	1500	1.49	52.6	26.1	0.105	33
		9WG1212G101-E	12	10.2 to 13.8		0.98	11.76	3600	3.88	137	135	0.542	49	-20 to +70	80000/60˚C (115000/40˚C)
		9WG1212E101-E		10.2 to 13.8		0.61	7.32	3100	3.34	118	100	0.402	46		80000/60˚C (115000/40˚C)
		9WG1212H101-E		7 to 13.8		0.38	4.56	2600	2.8	99	70.4	0.283	39		100000/60˚C (135000/40˚C)
		9WG1212F101-E				0.28	3.36	2280	2.45	87	54.2	0.218	36
		9WG1212M101-E				0.21	2.52	1950	2.1	74	39.6	0.159	32
		9WG1224G101-E	24	20.4 to 27.6		0.5	12	3600	3.88	137	135	0.542	49		80000/60˚C (115000/40˚C)
		9WG1224E101-E		20.4 to 27.6		0.34	8.16	3100	3.34	118	100	0.402	46		80000/60˚C (115000/40˚C)
		9WG1224H101-E		14 to 27.6		0.22	5.28	2600	2.8	99	70.4	0.283	39		100000/60˚C (135000/40˚C)
		9WG1224F101-E				0.16	3.84	2280	2.45	87	54.2	0.218	36
		9WG1224M101-E				0.11	2.64	1950	2.1	74	39.6	0.159	32
		9WG1248G101-E	48	40.8 to 55.2		0.25	12	3600	3.88	137	135	0.542	49		80000/60˚C (115000/40˚C)
		9WG1248E101-E				0.17	8.16	3100	3.34	118	100	0.402	46		80000/60˚C (115000/40˚C)
		9WG1248H101-E				0.11	5.28	2600	2.8	99	70.4	0.283	39		100000/60˚C (135000/40˚C)
		9WG1248F101-E				0.09	4.32	2280	2.45	87	54.2	0.218	36
		9WG1248M101-E				0.07	3.36	1950	2.1	74	39.6	0.159	32
