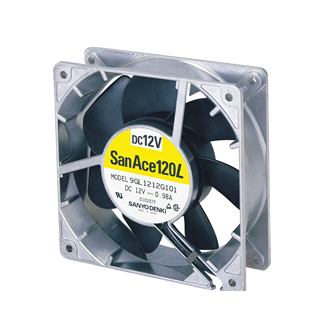

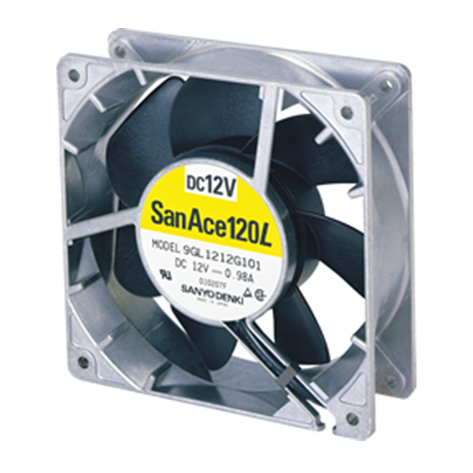

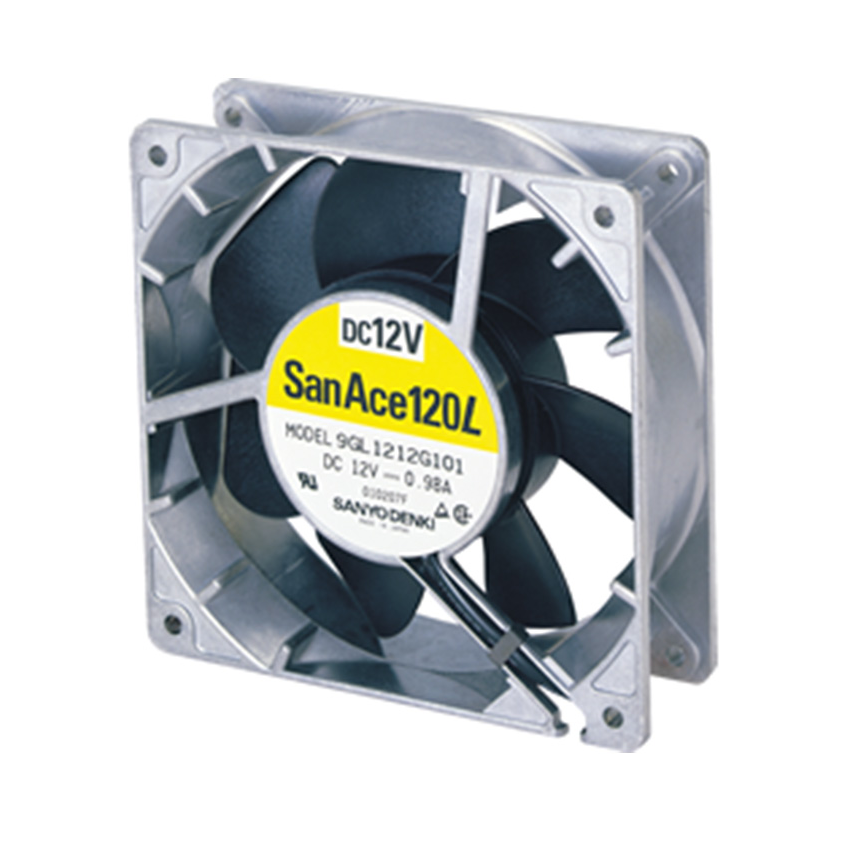

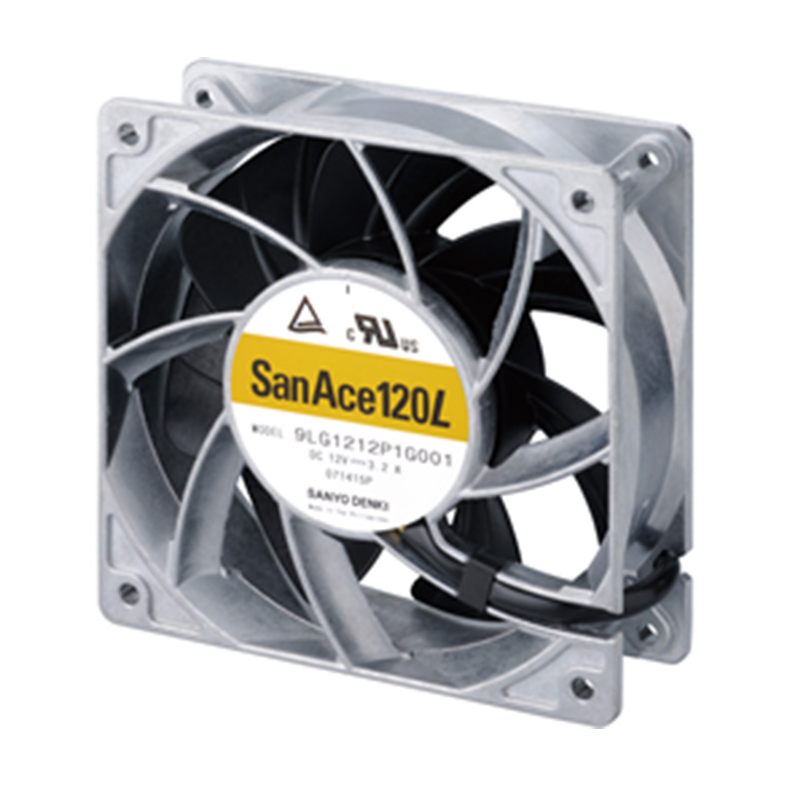

120×120×38 mm Long Life Fan

General Specifications
· Material
Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：420g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Long Life Fan	120×120×38 mm	9LG1212P1G001	12	8.0 to 13.8	100	3.2	38.4	6550	7.0	247.1	370	1.48	62	-20 to +70	180000/60˚C (215000/40˚C)
		9LG1212P1G001			20	0.24	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1212P1S001			100	2.2	26.4	5600	6.0	211.8	270	1.08	58
		9LG1212P1S001			20	0.24	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1212P1H001			100	1.4	16.8	4700	5.0	176.5	190	0.76	54
		9LG1212P1H001			20	0.24	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1224P1G001	24	15 to 30	100	1.6	38.4	6550	7.0	247.1	370	1.48	62
		9LG1224P1G001			20	0.12	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1224P1S001			100	1.1	26.4	5600	6.0	211.8	270	1.08	58
		9LG1224P1S001			20	0.12	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1224P1H001			100	0.7	16.8	4700	5.0	176.5	190	0.76	54
		9LG1224P1H001			20	0.12	2.88	2000	2.13	75.2	34.4	0.13	36
		9LG1248P1G001	48	36 to 60	100	0.8	38.4	6550	7.0	247.1	370	1.48	62
		9LG1248P1G001			20	0.08	3.84	2000	2.13	75.2	34.4	0.13	36
		9LG1248P1S001			100	0.55	26.4	5600	6.0	211.8	27	1.08	58
		9LG1248P1S001			20	0.08	3.84	2000	2.13	75.2	34.4	0.13	36
		9LG1248P1H001			100	0.35	16.8	4700	5.0	176.5	190	0.76	54
		9LG1248P1H001			20	0.08	3.84	2000	2.13	75.2	34.4	0.13	36
		9LG1212F1001	12	8 to 13.8		0.39	4.68	2800	3	106	67.6	0.27	39	-20 to +70	180000/60˚C (215000/40˚C)
		9LG1212M1001	12	8 to 13.8		0.22	2.64	2100	2.2	77.7	37.9	0.15	33
		9LG1224A1001	24	15 to 30		0.37	8.88	3700	3.9	137.8	117.8	0.47	48
		9LG1224F1001				0.19	4.56	2800	3	106	67.6	0.27	39
		9LG1224M1001				0.11	2.64	2100	2.2	77.7	37.9	0.15	33
		9LG1248F1001	48	36 to 60		0.11	5.28	2800	3	106	67.6	0.27	39
		9LG1248M1001	48	36 to 60		0.07	3.36	2100	2.2	77.7	37.9	0.15	33
