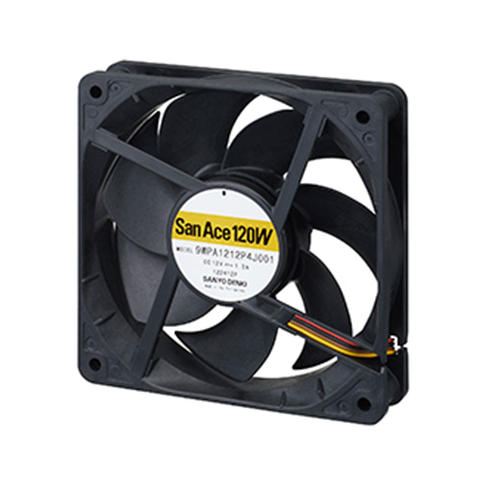

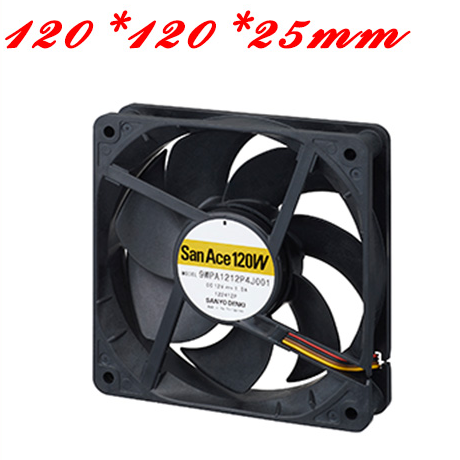

120×120×25 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown (For models without PWM control, there is no speed control wiring.)

· Mass：280g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	120×120×25 mm	9WPA1212P4J001	12	10.8 to 13.2	100	1.0	12.0	5400	4.20	148	210	0.84	53	-20 to +60	40000/60˚C (70000/40˚C)
		9WPA1212P4J001			20	0.07	0.84	1600	1.24	43.8	24.0	0.10	25	-20 to +60
		9WPA1212P4G001			100	0.50	6.0	4250	3.30	117	135	0.54	46	-20 to +70
		9WPA1212P4G001			20	0.06	0.72	1300	1.00	35.3	16.0	0.06	20	-20 to +70
		9WPA1224P4J001	24	21.6 to 26.4	100	0.50	12.0	5400	4.20	148	210	0.84	53	-20 to +60
		9WPA1224P4J001			20	0.05	1.20	1600	1.24	43.8	24.0	0.10	25	-20 to +60
		9WPA1224P4G001			100	0.25	6.0	4250	3.30	117	135	0.54	46	-20 to +70
		9WPA1224P4G001			20	0.04	0.96	1300	1.00	35.3	16.0	0.06	20	-20 to +70
		9WPA1212J4001	12	7 to 13.2		1.0	12.0	5400	4.20	148	210	0.84	53	-20 to +60	40000/60˚C (70000/40˚C)
		9WPA1212G4001		7 to 13.8		0.50	6.00	4250	3.30	117	135	0.54	46	-20 to +70
		9WPA1212H4001		10.2 to 13.8		0.12	1.44	2400	1.85	65.0	47.0	0.19	30	-20 to +70
		9WPA1224J4001	24	14 to 26.4		0.50	12.0	5400	4.20	148	210	0.84	53	-20 to +60
		9WPA1224G4001		14 to 27.6		0.25	6.00	4250	3.30	117	135	0.54	46	-20 to +70
		9WPA1224H4001		20.4 to 27.6		0.06	1.44	2400	1.85	65.0	47.0	0.19	30	-20 to +70
