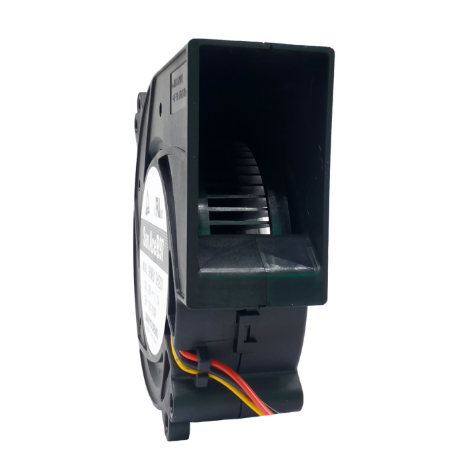

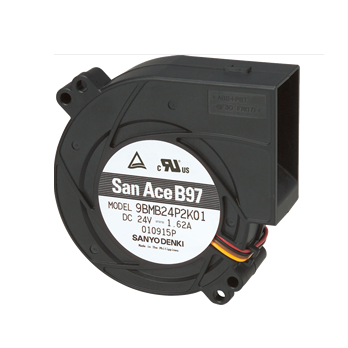

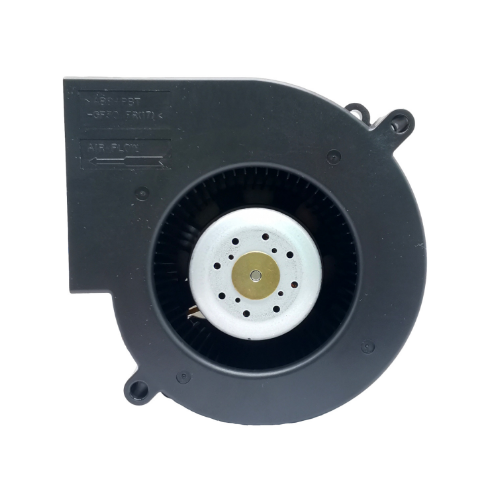

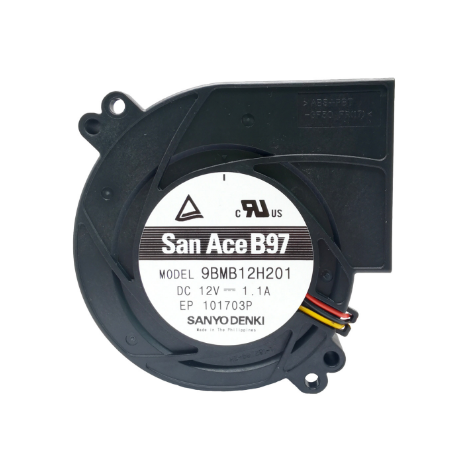

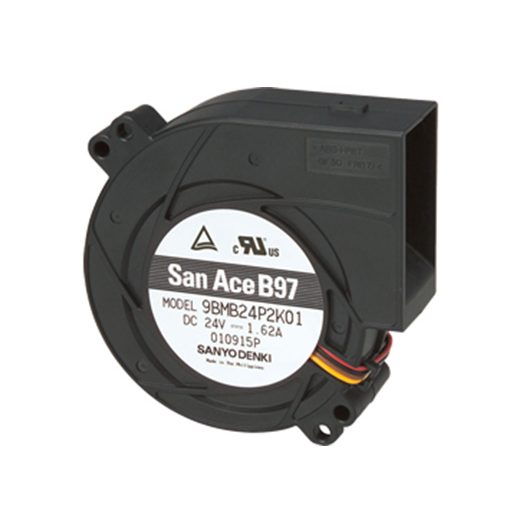

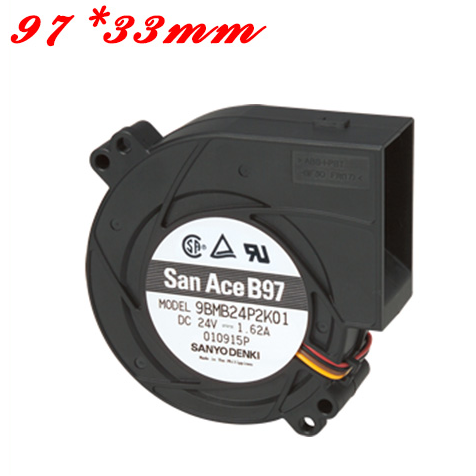

97×33 mm Blower

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：200g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Blower	97×33 mm	9BMC12P2G001	12	10.8 to 13.2	100	6.2	74.4	8200	1.85	65.3	1950	7.83	69	-20 to +70	40000/60˚C (70000/40˚C)
		9BMC12P2G001	12	10.8 to 13.2	20	0.38	4.56	2800	0.58	20.4	121.0	0.48	44
		9BMC24P2G001	24	21.6 to 26.4	100	3.1	74.4	8200	1.85	65.3	1950	7.83	69
		9BMC24P2G001	24	21.6 to 26.4	20	0.19	4.56	2800	0.58	20.4	121.0	0.48	44
		9BMB12P2K01	12	10.8 to 13.2	100	3.4	40.8	6850	1.61	56.8	1280	5.14	66	-20 to +70	40000/60˚C (70000/40˚C)
		9BMB12P2G01		10.2 to 13.8	100	1.8	21.6	5750	1.34	47.3	760	3.05	61
		9BMB12P2S01			100	1.4	16.8	5250	1.22	43.1	610	2.45	59
		9BMB12P2H01			100	1.1	13.2	4850	1.11	39.2	490	1.968	57
		9BMB12P2F01			100	0.9	10.8	4500	1.04	36.7	410	1.64	56
		9BMB24P2K01	24	21.6 to 26.4	100	1.62	38.88	6850	1.61	56.8	1280	5.14	66
		9BMB24P2G01			100	0.83	19.92	5750	1.34	47.3	760	3.05	61
		9BMB24P2S01			100	0.7	16.8	5250	1.22	43.1	610	2.45	59
		9BMB24P2H01			100	0.55	13.2	4850	1.11	39.2	490	1.968	57
		9BMB24P2F01			100	0.45	10.8	4500	1.04	36.7	410	1.64	56
		9BMB12K201	12	7 to 13.2		3.4	40.8	6850	1.61	56.8	1280	5.14	66	-20 to +70	40000/60˚C (70000/40˚C)
		9BMB12G201		7 to 13.8		1.8	21.6	5750	1.34	47.3	760	3.052	61
		9BMB12S201				1.4	16.8	5250	1.22	43.1	610	2.45	59
		9BMB12H201				1.1	13.2	4850	1.11	39.2	490	1.968	57
		9BMB12F201				0.9	10.8	4500	1.04	36.7	410	1.647	56
		9BMB24K201	24	21.6 to 26.4		1.62	38.88	6850	1.61	56.8	1280	5.14	66
		9BMB24G201		12 to 26.4		0.83	19.92	5750	1.34	47.3	760	3.052	61
		9BMB24S201				0.7	16.8	5250	1.22	43.1	610	2.45	59
		9BMB24H201				0.55	13.2	4850	1.11	39.2	490	1.968	57
		9BMB24F201				0.45	10.8	4850	1.04	36.7	410	1.647	56
		109BM12GC2-1	12	7 to 13.8		0.6	7.2	3800	0.82	28.9	281	1.129	51.5	-20 to +70	40000/60˚C (70000/40˚C)
		109BM12HC2-1				0.4	4.8	3300	0.71	25.1	204	0.819	48.5
		109BM12MC2-1				0.26	3.12	2700	0.58	20.5	119	0.478	43.5
		109BM24GC2-1	24	12 to 27.6		0.31	7.44	3800	0.82	28.9	281	1.129	51.5
		109BM24HC2-1				0.26	6.24	3300	0.71	25.1	204	0.819	48.5
		109BM24MC2-1				0.15	3.6	2700	0.58	20.5	119	0.478	43.5
