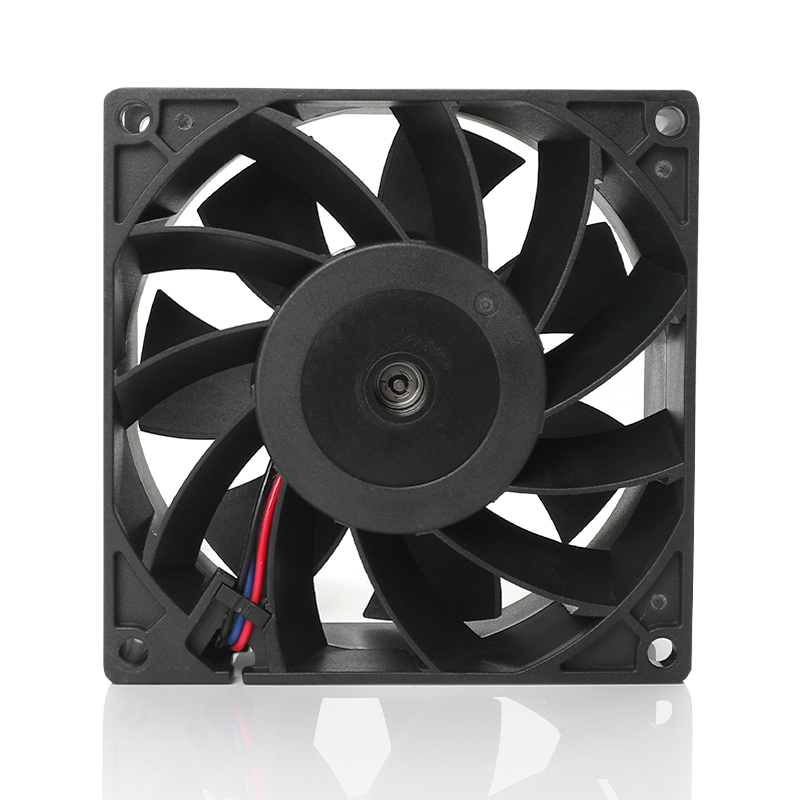

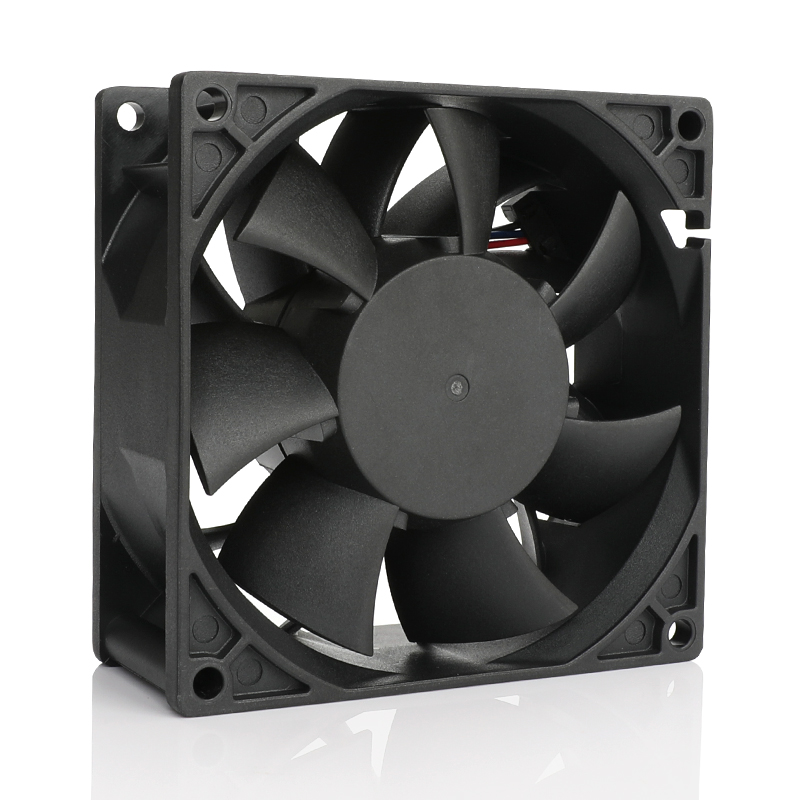

92×92×38mm DC Fan

Size: 92*92*38（mm）
Frame Type: Black PBT (UL94V-0)
Impeller Type: Black PBT (UL94V-0)
Operation Temperature: -10℃~70℃ (Ordinary humidity)
Storage Temperature: -40℃~80℃ (Ordinary humidity)
Bearing Type: 2 Ball, Sleeve


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model	Rated	Operating	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			Voltage	Voltage	Current	Power	Speed	Max. Air Flow		Max.Static Pressure		Noise
			(VDC)	(VDC)	(AMP)	(Watts)	(RPM)	(CFM)	(m³/min)	(mm-H2O)	(pa)	(dBA)
DC Fan CAPITAL	92×92×38mm DC Fan	CPT9238/12L	12	7~14	0.52	6.24	4000	80.01	2.27	10.08	98.85	44.90
		CPT9238/12M			1.10	13.20	5000	100.08	2.83	15.43	151.32	49.75
		CPT9238/12H			1.50	18.00	6000	120.36	3.41	21.87	214.47	53.70
		CPT9238/12E			2.50	30.00	7000	142.86	4.05	29.89	293.12	57.05
		CPT9238/12U			3.50	42.00	7500	151.27	4.28	34.01	333.52	62.00
		CPT9238/24L	24	15~27	0.30	7.20	4000	80.01	2.27	10.08	98.85	44.90
		CPT9238/24M			0.46	11.04	5000	100.08	2.83	15.43	151.32	49.75
		CPT9238/24H			0.95	22.80	6000	120.36	3.41	21.87	214.47	53.70
		CPT9238/24E			1.20	28.80	7000	142.86	4.05	29.89	293.12	57.05
		CPT9238/24U			1.40	33.60	7500	160.68	4.55	37.99	372.55	62.00
		CPT9238/48L	48	30~55	0.13	6.24	4000	80.01	2.27	10.08	98.85	44.90
		CPT9238/48M			0.28	13.44	5000	100.08	2.83	15.43	151.32	49.75
		CPT9238/48H			0.35	16.80	6000	120.36	3.41	21.87	214.47	53.70
		CPT9238/48E			0.50	24.00	7000	142.86	4.05	29.89	293.12	57.05
		CPT9238/48U			0.75	36.00	7500	160.68	4.55	37.99	372.55	62.00
		CPT9238/12L	12	7~14	0.52	6.24	4000	75.31	2.13	9.82	96.24	47.46
		CPT9238/12M			1.10	13.20	5000	95.15	2.69	14.35	140.63	52.30
		CPT9238/12H			1.50	18.00	6000	117.23	3.32	18.55	181.79	56.26
		CPT9238/12E			2.50	30.00	7000	137.34	3.89	24.18	236.96	59.61
		CPT9238/12U			3.50	42.00	9000	173.19	4.90	38.55	377.79	65.07
		CPT9238/24L	24	15~27	0.30	7.20	4000	75.31	2.13	9.82	96.24	47.46
		CPT9238/24M			0.46	11.04	5000	95.15	2.69	14.35	140.63	52.30
		CPT9238/24H			0.95	22.80	6000	117.23	3.32	18.55	181.79	56.26
		CPT9238/24E			1.20	28.80	7000	137.34	3.89	24.18	236.96	59.61
		CPT9238/24U			1.40	33.60	9000	173.19	4.90	38.55	377.79	65.07
		CPT9238/48L	48	30~55	0.13	6.24	4000	75.31	2.13	9.82	96.24	47.46
		CPT9238/48M			0.28	13.44	5000	95.15	2.69	14.35	140.63	52.30
		CPT9238/48H			0.35	16.80	6000	117.23	3.32	18.55	181.79	56.26
		CPT9238/48E			0.50	24.00	7000	137.34	3.89	24.18	236.96	59.61
		CPT9238/48U			0.75	36.00	9000	173.19	4.90	38.55	377.79	65.07
		CPT9238/12L	12	7~14	0.52	6.24	5500	108.86	3.08	17.21	168.66	55.05
		CPT9238/12M			1.10	13.20	6000	120.31	3.41	20.61	201.98	56.94
		CPT9238/12H			1.50	18.00	7000	138.18	3.91	27.29	267.44	60.28
		CPT9238/12E			2.50	30.00	8000	158.65	4.49	35.25	345.45	63.18
		CPT9238/12U			3.50	42.00	8500	166.70	4.72	38.43	376.61	64.50
		CPT9238/24L	24	15~27	0.30	7.20	5500	108.86	3.08	17.21	168.66	55.05
		CPT9238/24M			0.46	11.04	6000	120.31	3.41	20.61	201.98	56.94
		CPT9238/24H			0.95	22.80	7000	138.18	3.91	27.29	267.44	60.28
		CPT9238/24E			1.20	28.80	8000	158.65	4.49	35.25	345.45	63.18
		CPT9238/24U			1.40	33.60	8500	166.70	4.72	38.43	376.61	64.50
		CPT9238/48L	48	30~55	0.13	6.24	5500	108.86	3.08	17.21	168.66	55.05
		CPT9238/48M			0.28	13.44	6000	120.31	3.41	20.61	201.98	56.94
		CPT9238/48H			0.35	16.80	7000	138.18	3.91	27.29	267.44	60.28
		CPT9238/48E			0.50	24.00	8000	158.65	4.49	35.25	345.45	63.18
		CPT9238/48U			0.75	36.00	8500	166.70	4.72	38.43	376.61	64.50
