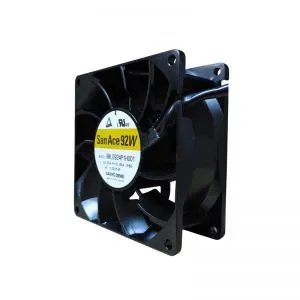

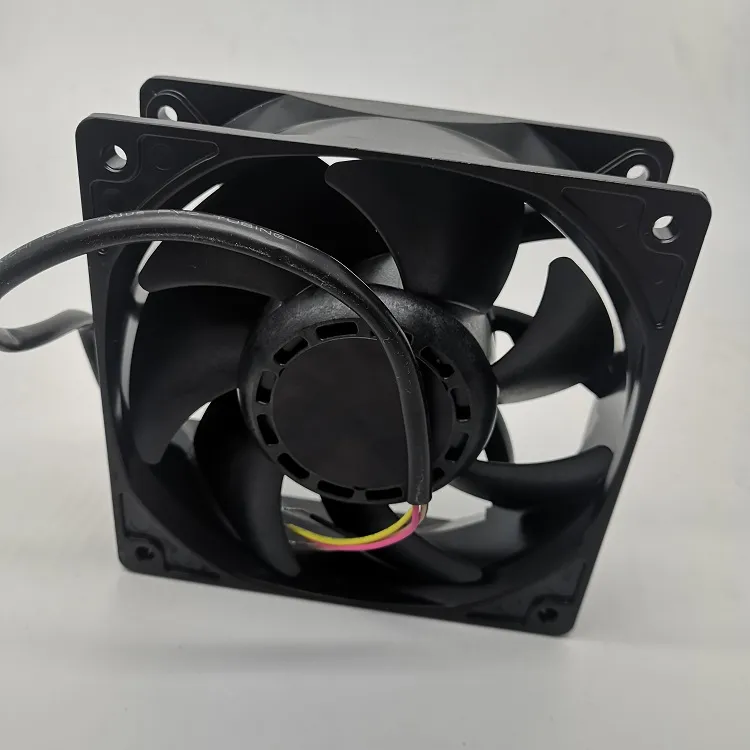

92×92×38 mm Splash Proof Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)

· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：250g


Availability:



Inquire Add to Basket

Product Description

Specifications

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
Splash Proof Fan	92×92×38 mm	9WL0912P1H001	12	10.2 to 13.2	100	1.9	22.8	9000	3.7	130.6	430	1.72	61	-20 to +70	100000/60˚C (135000/40˚C)
		9WL0912P1H001			20	0.13	1.56	2700	1.11	39.1	48.0	0.19	30
		9WL0912P1F001			100	0.95	11.4	7000	2.9	102.4	263	1.05	55
		9WL0912P1F001			20	0.13	1.2	2000	0.83	29.3	26.3	0.1	22
		9WL0924P1H001	24	20.4 to 26.4	100	0.95	22.8	9000	3.7	130.6	430	1.72	61
		9WL0924P1H001			20	0.07	1.68	2700	1.11	39.1	48.0	0.19	30
		9WL0924P1F001			100	0.5	12	7000	2.9	102.4	263	1.05	55
		9WL0924P1F001			20	0.06	1.44	2000	0.83	29.3	26.3	0.1	22
		9WL0948P1H601	48	40.8 to 52.8	100	0.48	23.04	9000	3.7	130.6	430	1.72	61
		9WL0948P1H601			20	0.05	2.4	2700	1.11	39.1	48.0	0.19	30
		9WL0948P1F601			100	0.24	11.52	7000	2.9	102.4	263	1.05	55
		9WL0948P1F601			20	0.05	2.4	2000	0.83	29.3	26.3	0.1	22
		9WV0924P1H001	24	20.4 to 26.4	100	1.6	38.4	8500	5.05	178	385	1.55	64	-20 to +60	30000/60˚C (53000/40˚C)
		9WV0924P1H001	24	20.4 to 26.4	20	0.16	3.84	3000	1.78	62.9	47.9	0.19	38	-20 to +60
		9WV0948P1H001	48	40.8 to 52.8	100	0.82	39.4	8500	5.05	178	385	1.55	64	-20 to +70
		9WV0948P1H001	48	40.8 to 52.8	0	0.14	6.7	4000	2.37	83.7	85.2	0.34	45	-20 to +70
