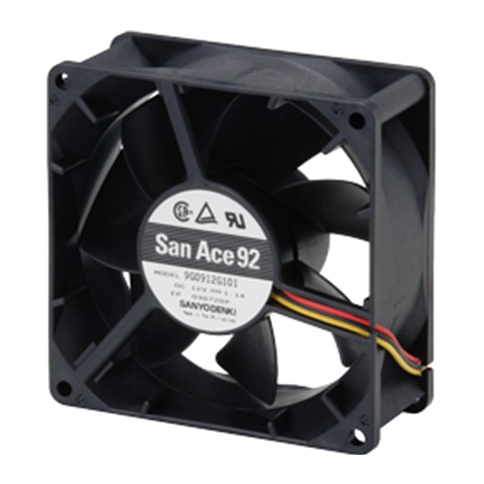

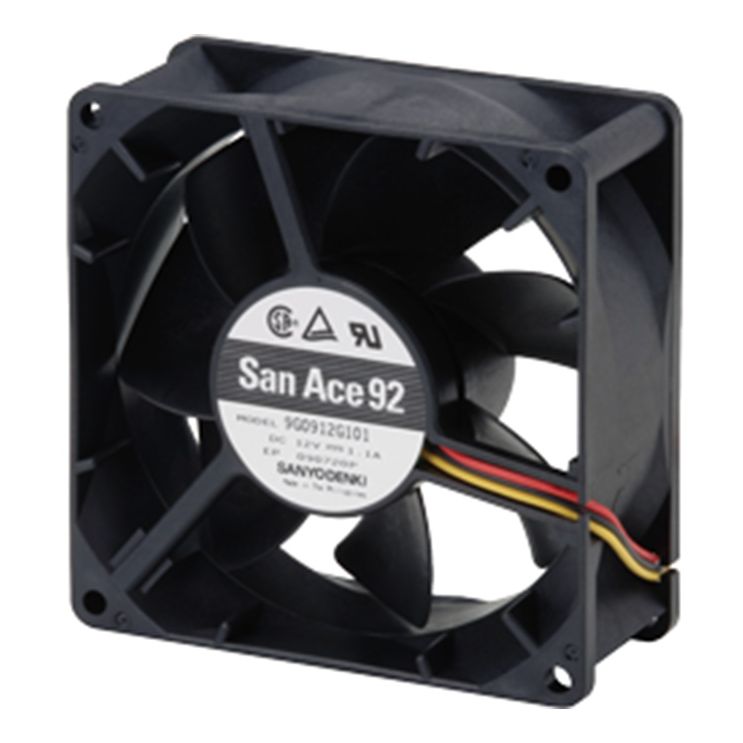

92×92×38 mm DC Fan

General Specifications
· Material
Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-1)
· Expected life：See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C, rated voltage) Expected life at 40°C is for reference only.
· Motor protection function
Locked rotor burnout protection, Reverse polarity protection
For details, please refer to p. 616.
· Dielectric strength：50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)
· Insulation resistance：10 MΩ min. at 500 VDC (between lead wire conductors and frame)
· Sound pressure level (SPL)：A-weighted sound pressure level (SPL) at 1 m away from the air inlet.
· Storage temperature：-30 to +70˚C (Non-condensing)
· Lead wire：Red Black Yellow Brown

· Mass：250g


Availability:



Inquire Add to Basket

Product Description

Specifications

The models listed below have ribs and a pulse sensor with PWM control.

Category	Model	Model no.	Rated Voltage	Operating voltage range	PWM duty cycle*	Rated current	Rated input	Rated Speed	Max. airflow		Max. static pressure		SPL	Operating temperature	Expected life
Category	Model	Model no.	[V]	[V]	[%]	[A]	[W]	[min-1]	[m3/min]	[CFM]	[Pa]	[inchH2O]	[dB(A)]	[˚C]	[h]
DC Fan	92×92×38 mm	9HV0912P1G001	12	8 to 12.6	100	5.2	62.4	14900	5.1	180	1100	4.42	72	-20 to +70	40000/60˚C (70000/40˚C)
		9HV0912P1G001	12	8 to 12.6	0	0.8	9.6	4500	1.54	54.4	160	0.64	44
		9HV0924P1G001	24	20.4 to 27.6	100	2.50	60.0	14900	5.1	180	1100	4.42	72
		9HV0924P1G001	24	20.4 to 27.6	0	0.34	8.16	4500	1.54	54.4	160	0.64	44
		9HV0948P1G001	48	36 to 60	100	1.2	57.6	14900	5.1	180	1100	4.42	72
		9HV0948P1G001	48	36 to 60	0	0.15	7.2	4500	1.54	54.4	160	0.64	44
		9GA0912P1H03	12	10.2 to 13.8	100	2.1	25.2	9700	4.0	141	500	2.01	63	-20 to +70	40000/60˚C (70000/40˚C)
		9GA0912P1H03	12	10.2 to 13.8	0	0.16	1.92	2500	0.97	34.3	33	0.13	29	-20 to +70
		9GA0924P1H01	24	20.4 to 27.6	100	1.1	26.4	9700	4.0	141	500	2.01	63	-10 to +70
		9GA0924P1H01	24	20.4 to 27.6	0	0.07	1.68	2500	0.97	34.3	33	0.13	29	-10 to +70
		9GA0948P1H03	48	40.8 to 55.2	100	0.55	26.4	9700	4.0	141	500	2.01	63	-20 to +70
		9GV0912P1G03	12	10.8 to 13.2	100	4.1	49.2	9000	5.35	189.0	430.0	1.73	68	-20 to +70	40000/60˚C (70000/40˚C)
		9GV0912P1G03		10.8 to 13.2	0	0.33	4.0	2900	1.72	60.8	44.6	0.18	37
		9GV0912P1H03		10.2 to 13.8	100	3.5	42.0	8500	5.05	178.0	385.0	1.55	64
		9GV0912P1H03			0	0.29	3.5	2700	1.6	56.5	38.8	0.16	34
		9GV0912P1F03			100	1.9	22.8	7000	4.15	146.6	261	1.05	59	-10 to +70
		9GV0912P1F03			0	0.16	1.92	2200	1.3	45.9	25.7	0.1	31	-10 to +70
		9GV0948P1H03	48	40.8 to 55.2	100	0.82	39.4	8500	5.05	178.0	385.0	1.55	64	-20 to +70
		9GV0948P1H03			0	0.14	6.7	4000	2.37	83.7	85.2	0.34	45	-20 to +70
		9GV0948P1F03			100	0.48	23.04	7000	4.15	146.6	261	1.05	59	-10 to +70
		9GV0948P1F03			0	0.12	5.76	3500	2.07	73.1	65.2	0.26	42	-10 to +70
		9RA0912P1J001	12	10.8 to 13.2	100	1.24	14.9	6400	3.28	116	192	0.77	50	-20 to +70	40000/60˚C (70000/40˚C)
		9RA0912P1J001			20	0.07	0.8	1600	0.82	29	12.0	0.05	12
		9RA0912P1G001			100	0.96	11.5	5800	2.97	105	158	0.63	47
		9RA0912P1G001			20	0.06	0.7	1400	0.72	25	9.2	0.04	10
		9RA0924P1J001	24	21.6 to 26.4	100	0.62	14.9	6400	3.28	116	192	0.77	50
		9RA0924P1J001			20	0.07	1.7	2200	1.13	40	22.7	0.09	19
		9RA0924P1G001			100	0.48	11.5	5800	2.97	105	158	0.63	47
		9RA0924P1G001			20	0.05	1.2	2000	1.02	36	18.8	0.08	17
		9RA0948P1J001	48	43.2 to 52.8	100	0.31	14.9	6400	3.28	116	192	0.77	50
		9RA0948P1J001			20	0.03	1.4	2000	1.02	36	18.8	0.08	17
		9RA0948P1G001			100	0.25	12.0	5800	2.97	105	158	0.63	47
		9RA0948P1G001			20	0.03	1.4	1700	0.87	31	13.6	0.05	13
		9RA0912J1001	12	7 to 13.2		1.24	14.9	6400	3.28	116	192	0.77	50	-20 to +70	40000/60˚C (70000/40˚C)
		9RA0912G1001		7 to 13.8		0.96	11.5	5800	2.97	105	158	0.63	47
		9RA0912H1001		7 to 13.8		0.52	6.2	4650	2.36	83	102	0.41	40
		9RA0924J1001	24	14 to 26.4		0.62	14.9	6400	3.28	116	192	0.77	50
		9RA0924G1001		14 to 27.6		0.48	11.5	5800	2.97	105	158	0.63	47
		9RA0924H1001		14 to 27.6		0.26	6.2	4650	2.36	83	102	0.41	40
		9RA0948J1001	48	36 to 52.8		0.31	14.9	6400	3.28	116	192	0.77	50
		9RA0948G1001		36 to 55.2		0.25	12.0	5800	2.97	105	158	0.63	47
		9RA0948H1001		36 to 55.2		0.14	6.7	4650	2.36	83	102	0.41	40
